Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower the mid gate.
  2. Remove the rear compartment cover.
  3. Remove the cargo load mat.
  4. Using a trim panel removal tool or a suitable flat bladed tool, carefully pry the drain valve up from the cargo floor.
  5. Remove the drain valve from the vehicle.

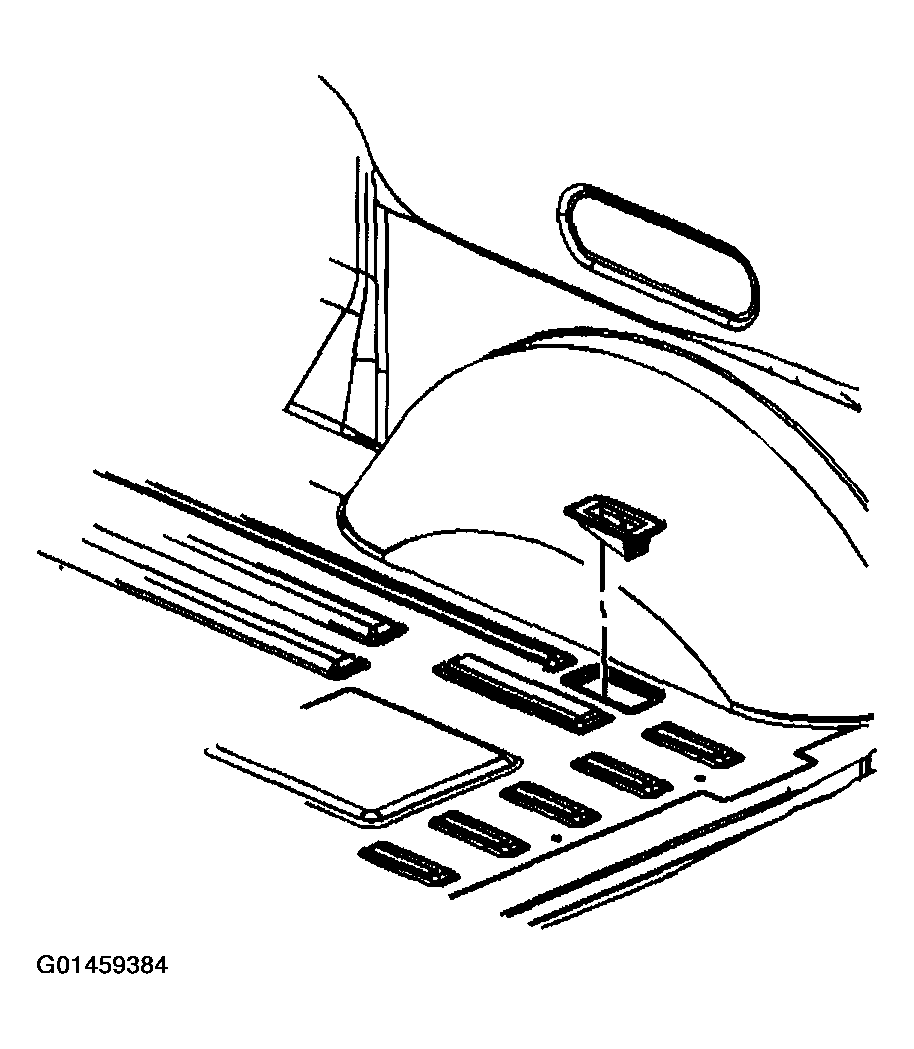

    6. Fig 1: Removing Rear Body Opening Frame Drain Valve - Front
    G01459384Courtesy of GENERAL MOTORS CORP.
