Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the panel to the vehicle

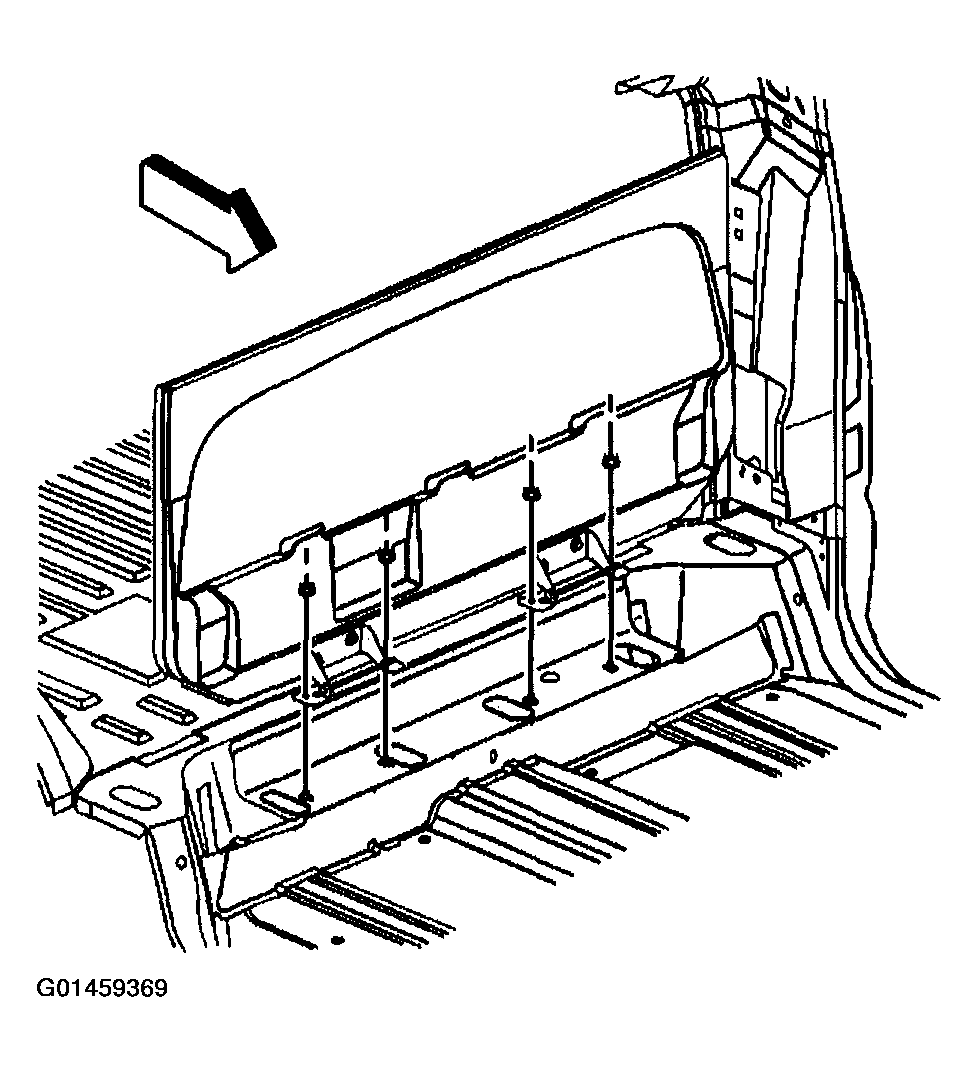

    2. Fig 1: Installing Rear Mid Gate Panel To Vehicle
    G01459369Courtesy of GENERAL MOTORS CORP.
  2. Install the Hinges to the panel. Refer to HINGE REPLACEMENT - REMOVABLE REAR PANEL - MID GATE
  3. Check the operation of the mid gate by opening and closing the mid gate.

    Align the mid gate if necessary.

  4. Fold the rear seat back up.
