Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trim panel, as necessary. Refer to TRIM PANEL REPLACEMENT - REAR DOOR  .
  2. Pull back the water deflector, as necessary. Refer to WATER DEFLECTOR REPLACEMENT  .
  3. Disconnect the lock cylinder rod from the rod clip.
  4. Remove the outside handle nuts.
  5. Remove the outside handle.
  6. Disconnect electrical connector if required.
  7. Remove actuator cable.

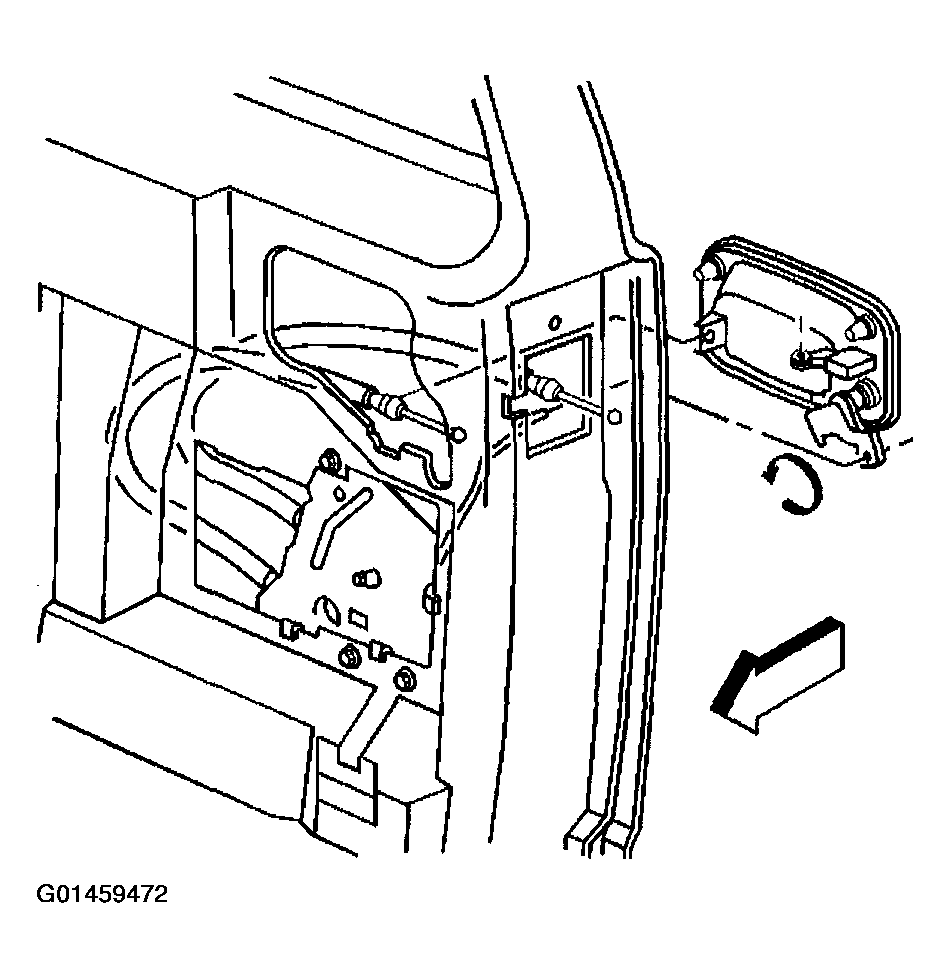

    8. Fig 1: Removing Actuator Cable
    G01459472Courtesy of GENERAL MOTORS CORP.
  8. Remove the door lock cylinder. Refer to LOCK CYLINDER REPLACEMENT - DOOR in Doors.
  9. Complete the necessary procedure:
