Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lift gate lock cylinder. Refer to LOCK CYLINDER REPLACEMENT - LIFT GATE  .
  2. Install the actuator to the lift gate.
  3. Loose assemble the bolts to the latch actuator.
  4. Close the lift gate glass in order to adjust the actuator.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  5. Install the cables to actuator assembly.

    Tighten

    1. Tighten the bolts to 9 N-m (80 lb in).

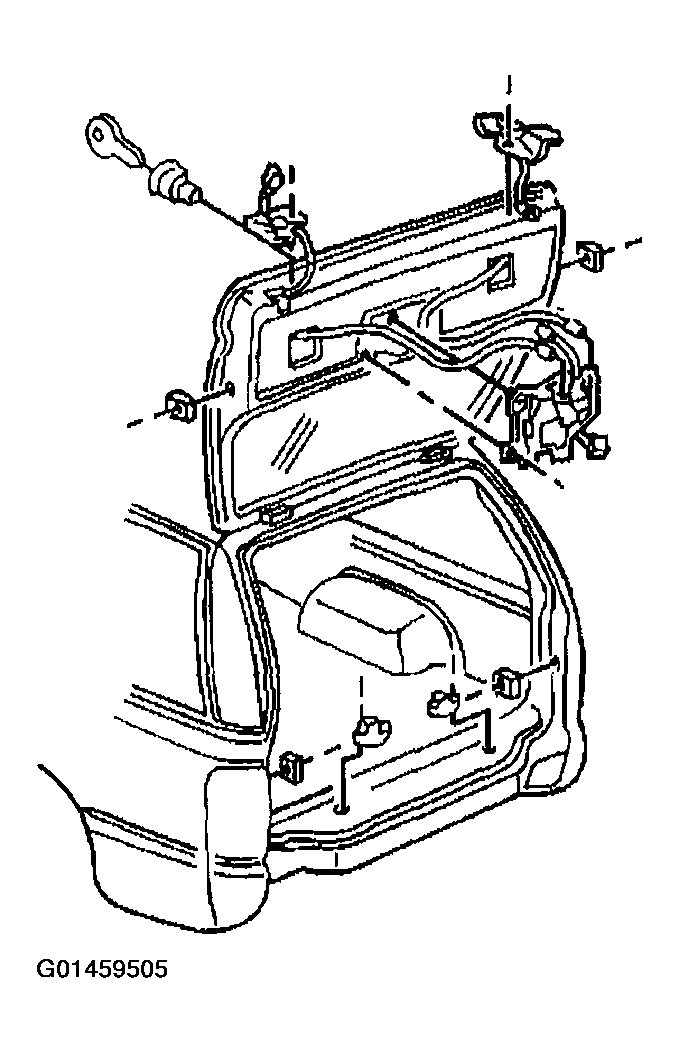

    6. Fig 1: Installing Bolts To Latch Actuator
    G01459505Courtesy of GENERAL MOTORS CORP.
  6. Connect the electrical connectors.
  7. Install the upper and lower trim panels. Refer to TRIM PANEL REPLACEMENT - LIFT GATE  .
