Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower the end gate.
  2. Remove the rear compartment cover assembly.
  3. Remove the assist handle. Refer to ASSIST HANDLE REPLACEMENT - END GATE (AVALANCHE)  .
  4. Remove the cargo box bridge side inner panel. Refer to PANEL REPLACEMENT - CARGO BOX BRIDGE SIDE INNER (AVALANCHE/EXT) .
  5. Remove the bolts (2) from inside the cargo box stowage lid assembly.

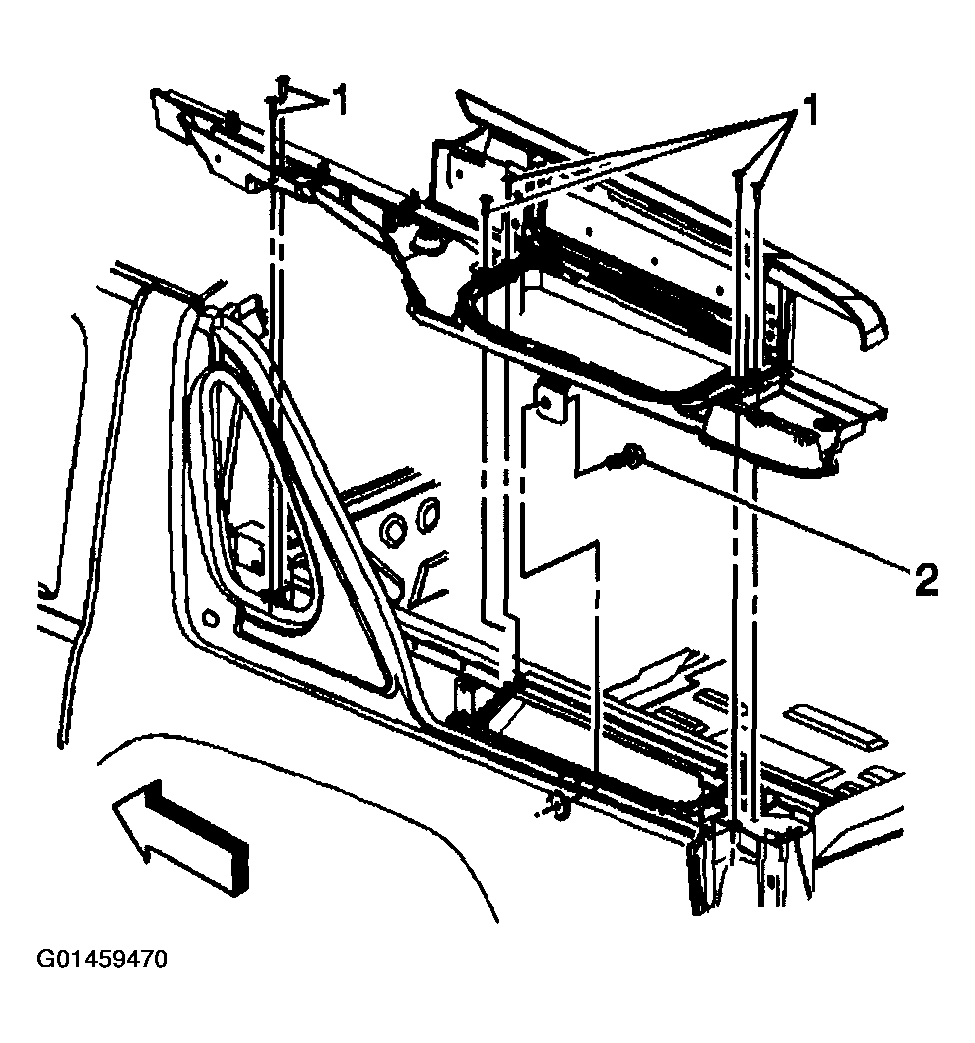

    6. Fig 1: Removing Bolts From Top Of Stowage Lid
    G01459470Courtesy of GENERAL MOTORS CORP.
  6. Remove the bolts (1) from the top of the stowage lid.
  7. Remove the cargo box from the vehicle.
