Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - REAR DOOR  .
  2. Remove the bolts that retain the latch to the door.
  3. Remove latch from the door.
  4. Remove the actuator cable assembly from the latch.
  5. Remove the latch bolts.
  6. Remove the latch from the door.

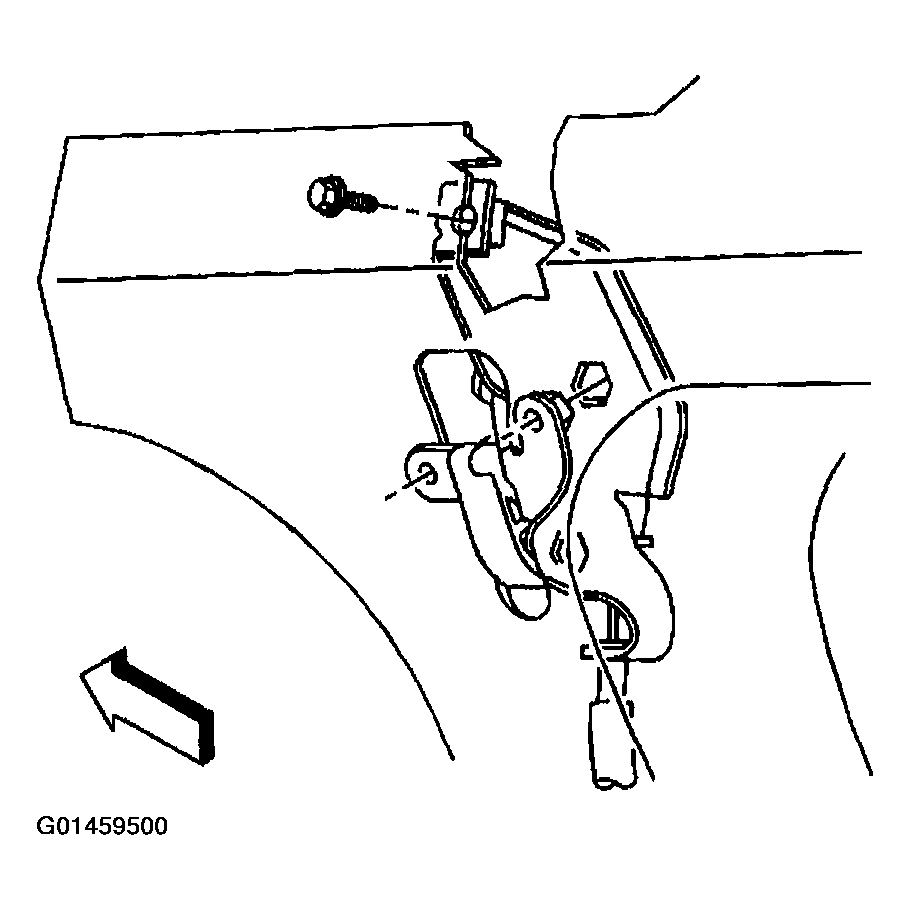

    7. Fig 1: Removing Latch From Door
    G01459500Courtesy of GENERAL MOTORS CORP.
