Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the third pillar trim. Refer to TRIM REPLACEMENT - THIRD PILLAR (TAHOE/YUKON/ESCALADE/SUBURBAN) or TRIM REPLACEMENT - THIRD PILLAR (AVALANCHE/ESCALADE EXT) in Interior Trim.
  2. Remove the hinges from the mid gate. Refer to HINGE REPLACEMENT - REMOVABLE REAR PANEL - MID GATE  .
  3. Remove the rear floor trim plate (1) from the vehicle.

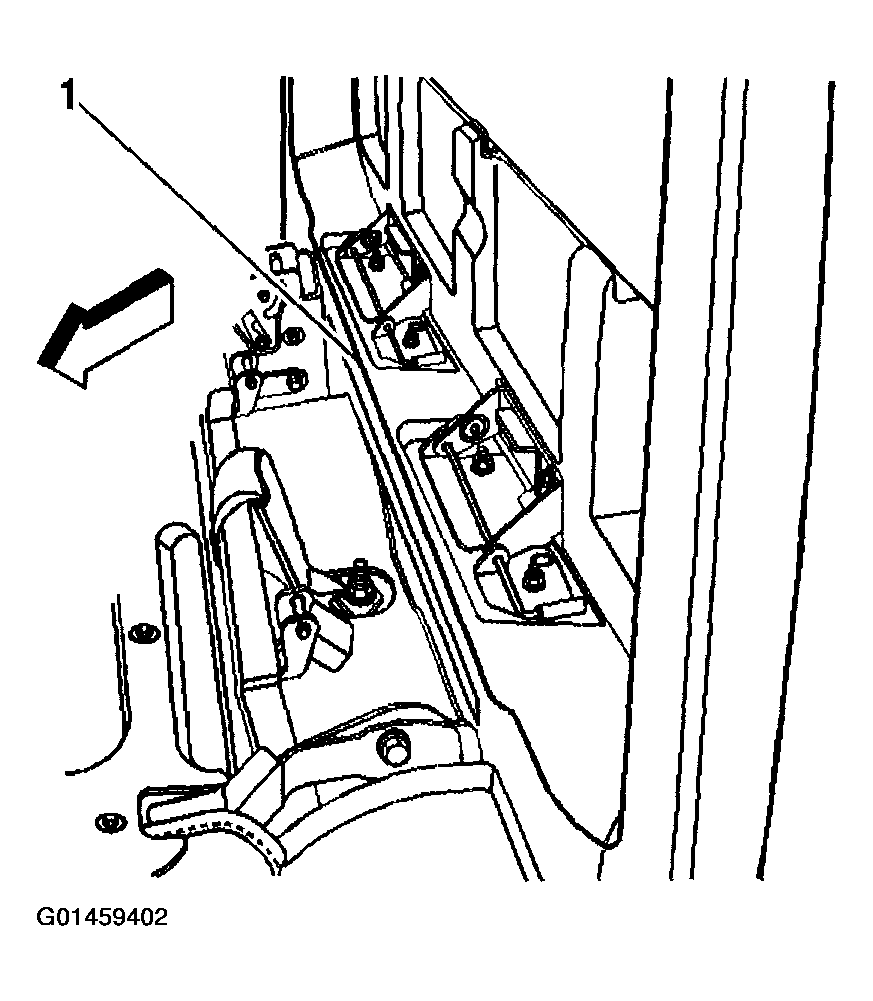

    4. Fig 1: Removing Rear Floor Trim Plate From Vehicle
    G01459402Courtesy of GENERAL MOTORS CORP.
