Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable, as necessary on vehicles with power components. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Engine Electrical.
  2. Apply cloth-backed tape to the door and to the body pillar.
  3. Remove the taillamp(s). Refer to TAIL/TURN SIGNAL LAMP REPLACEMENT in Lighting Systems.
  4. Remove the bolts in roller assembly from upper door side hinge.

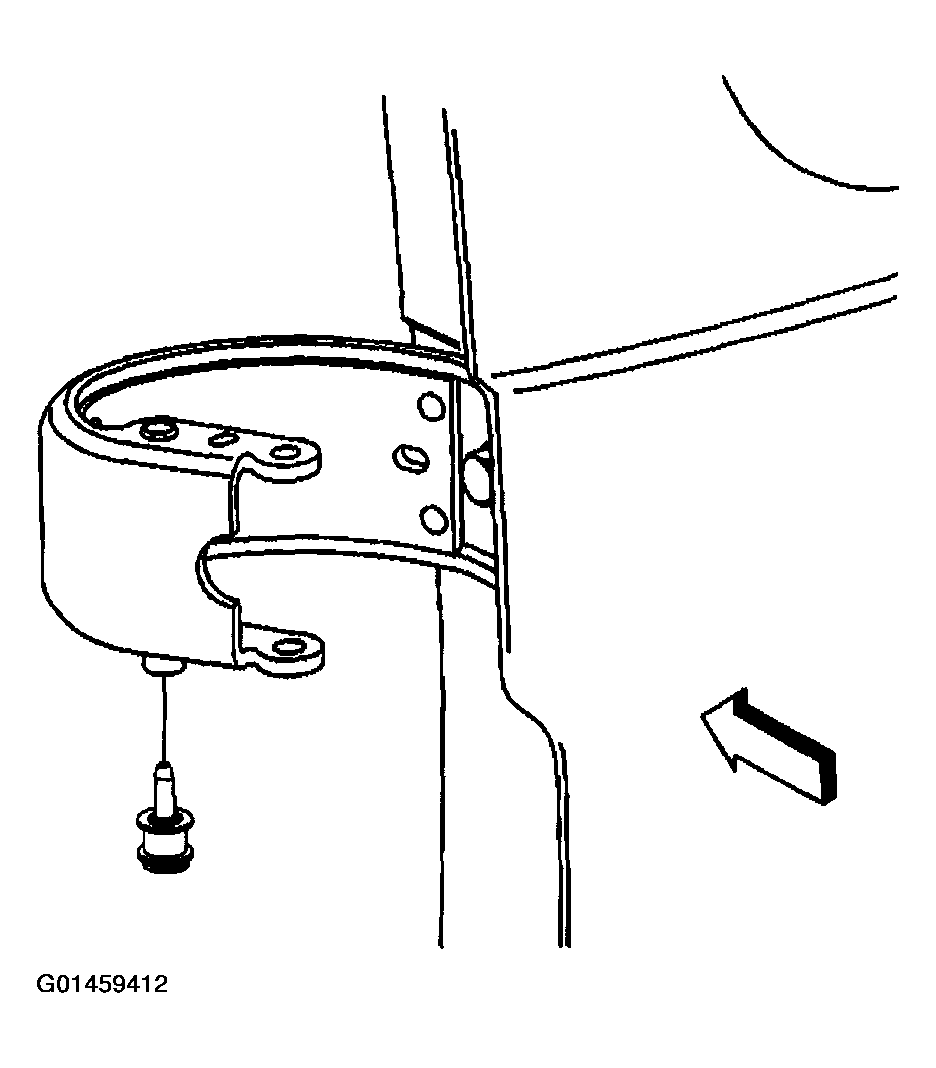

    5. Fig 1: Removing Bolts In Roller Assembly From Upper Door Side Hinge
    G01459412Courtesy of GENERAL MOTORS CORP.
  5. Remove the upper and lower hinge pin retainer clips.
  6. Using a soft-faced hammer and locking pliers, remove the lower hinge pin.
  7. Install a temporary bolt through the lower hinges in order to hold the door in place during the removal of the upper hinge pin.
  8. Remove the upper hinge pin.
  9. Remove the bolt from the lower hinge pin hole.

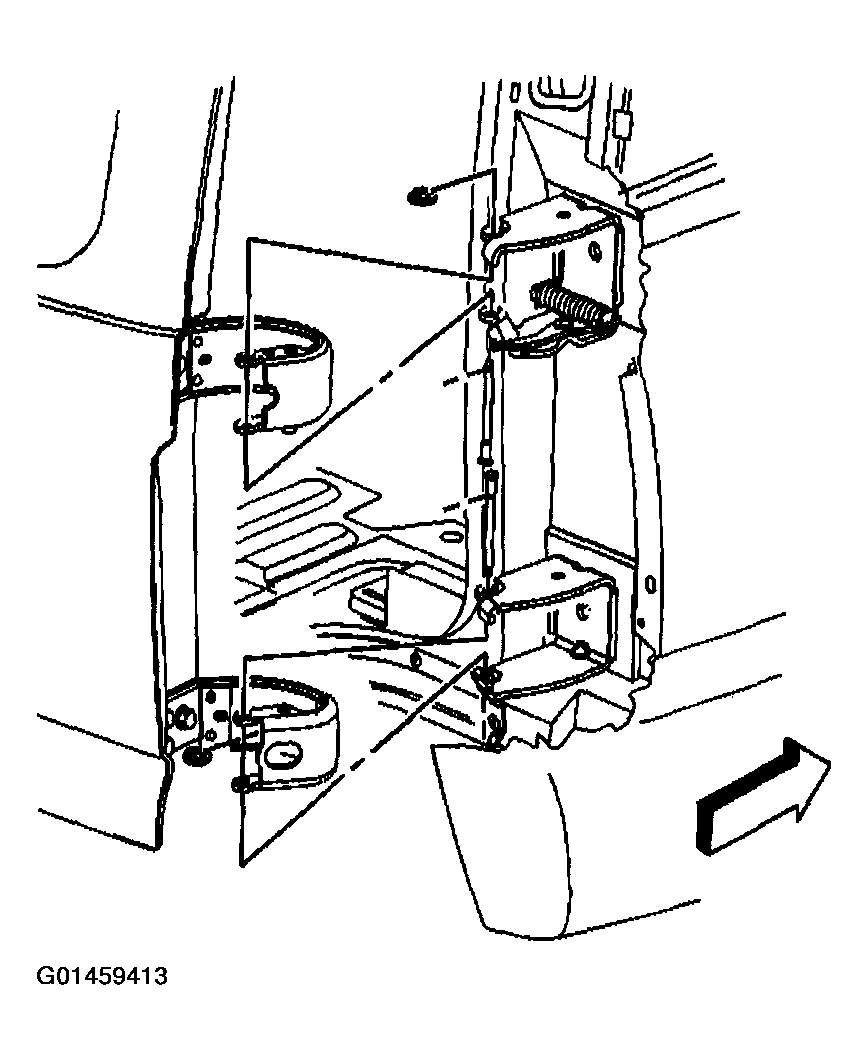

    10. Fig 2: Removing Bolt From Lower Hinge Pin Hole
    G01459413Courtesy of GENERAL MOTORS CORP.
  10. With an assistant, remove the door from the vehicle.
