Cargo Door Ajar Indicator Inoperative

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

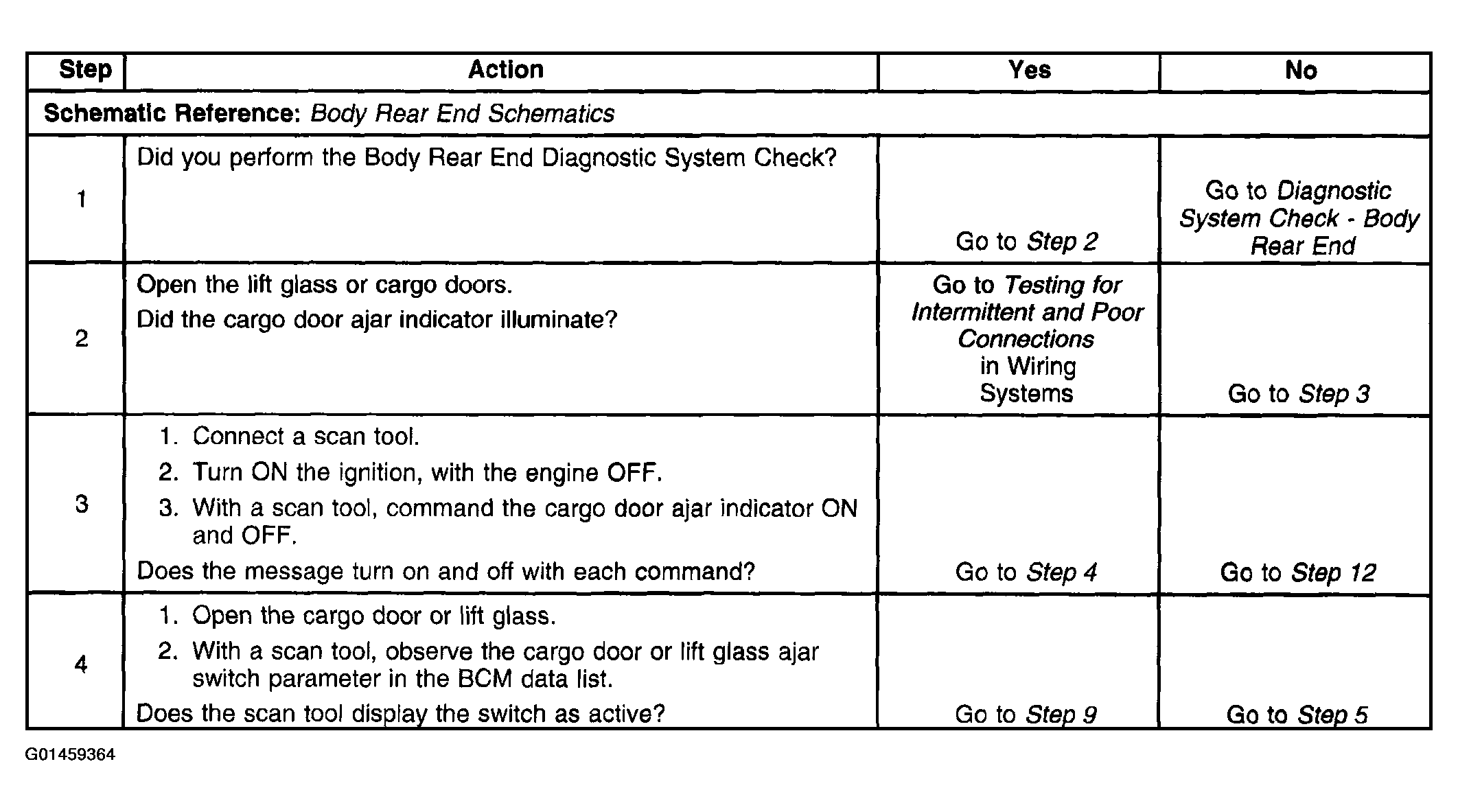

Fig 1: Symptom List - Cargo Door Ajar Indicator Inoperative (1 Of 2)
G01459364Courtesy of GENERAL MOTORS CORP.

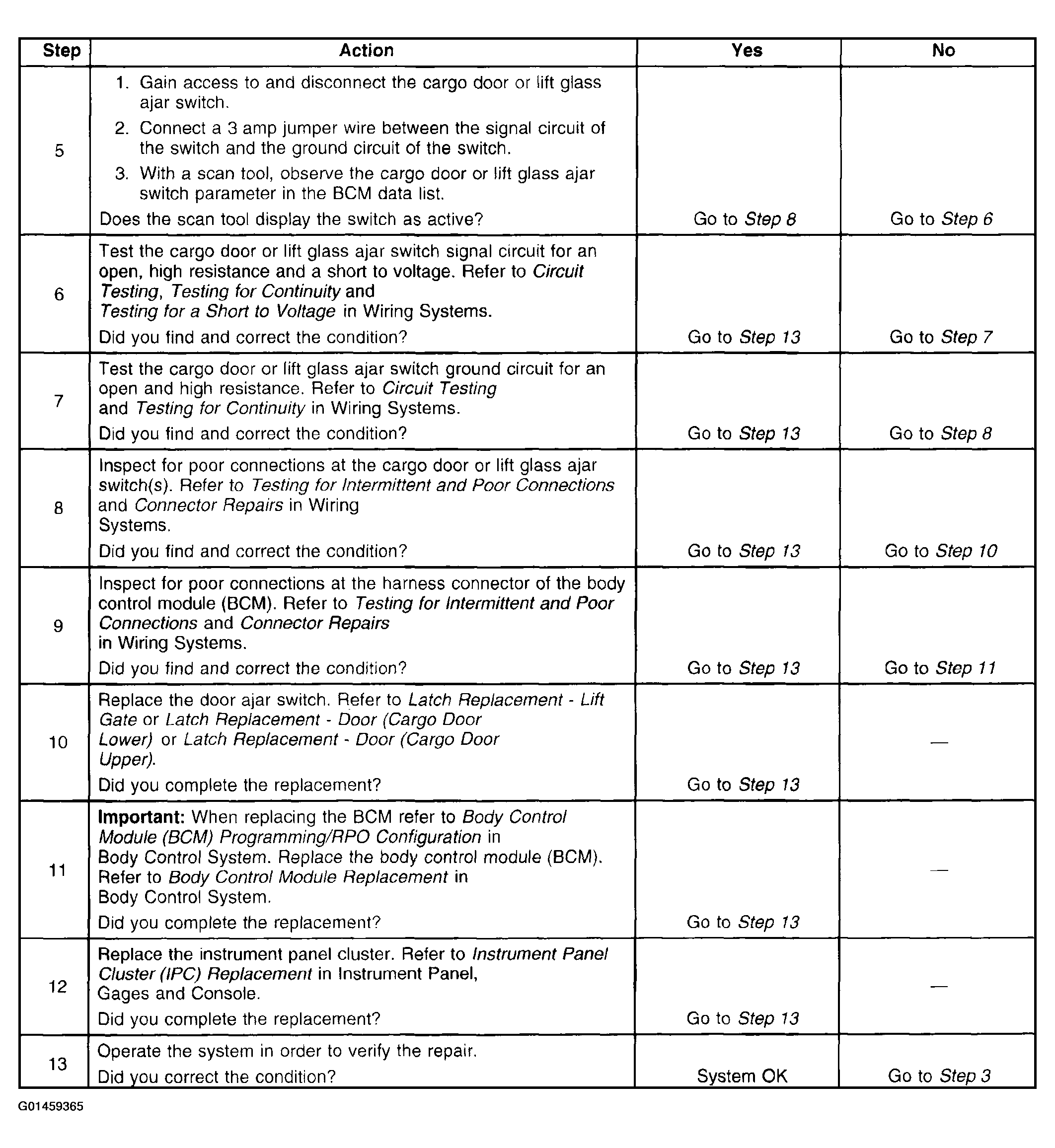

Fig 2: Symptom List - Cargo Door Ajar Indicator Inoperative (2 Of 2)
G01459365Courtesy of GENERAL MOTORS CORP.
