Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door sill trim plate. Refer to DOOR SILL PLATE REPLACEMENT - FRONT  or to DOOR SILL PLATE REPLACEMENT - REAR  .
  2. Remove the lower rear seat belt cover and bolt.
  3. Remove the trim panel from the vehicle.

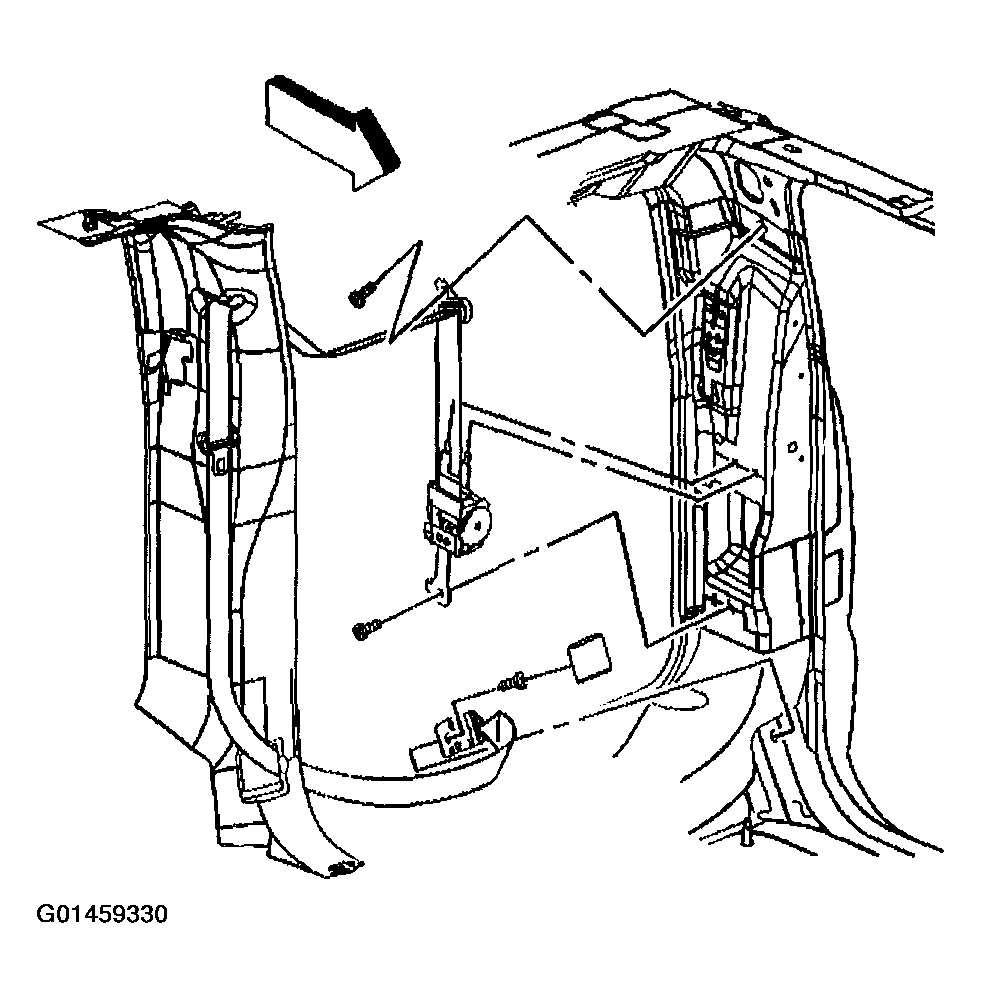

    Fig 1: Removing Lower Rear Seat Belt Cover And Bolt
    G01459330Courtesy of GENERAL MOTORS CORP.
