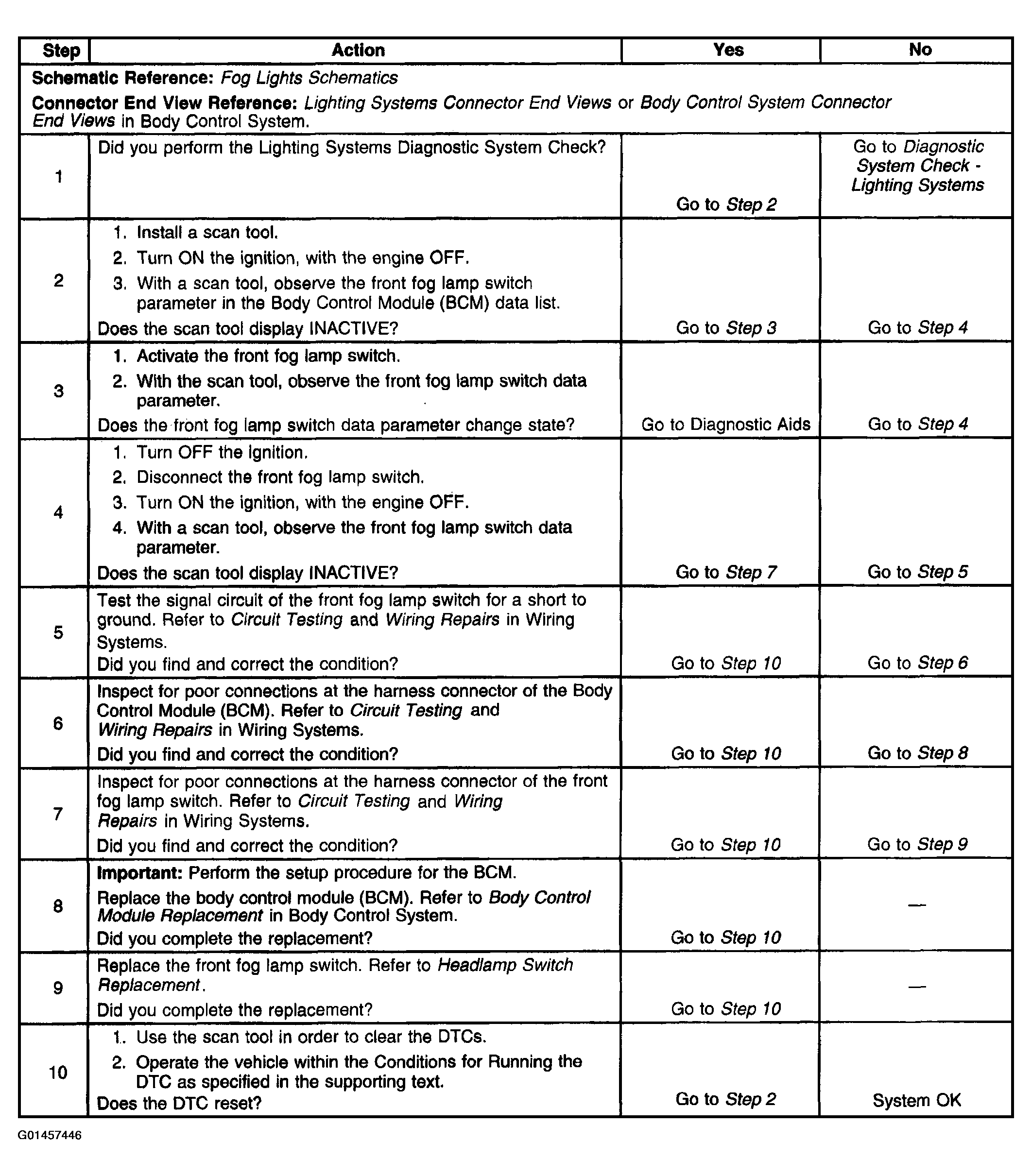

Diagnostic Aids
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
- Test the fog lamp switch for sticking in the ON position.
- Perform a visual inspection for loose or poor connections at all related components. Refer to TESTING WIRING SYSTEMS FOR INTERMITTENT & POOR CONNECTIONS in Wiring Systems.
