Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the air cleaner outlet duct clamps from the throttle body.
  2. Loosen the air cleaner outlet duct clamps from the mass airflow sensor.
  3. Remove the air cleaner outlet duct.

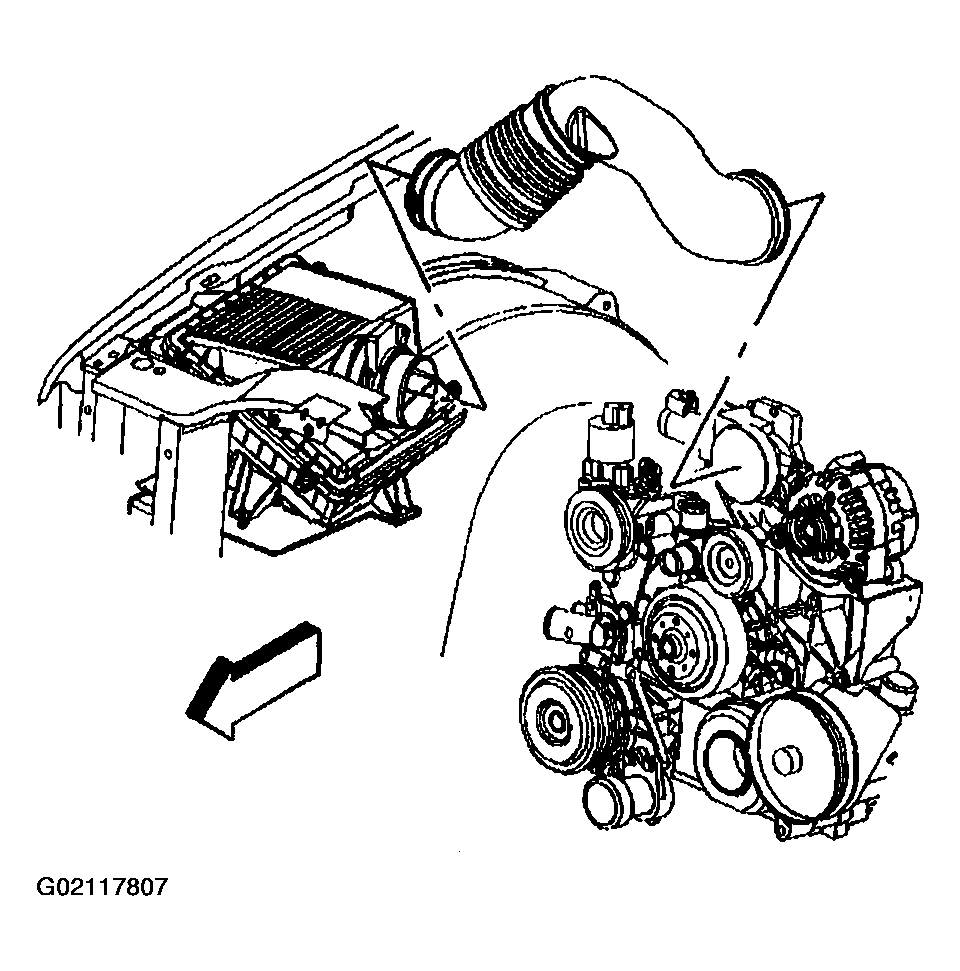

    Fig 1: Removing Air Cleaner Outlet Duct
    G02117807Courtesy of GENERAL MOTORS CORP.
  4. If equipped remove the throttle body heater hose retainer from the fan shroud.
  5. If equipped remove the inlet radiator hose retainer from the fan shroud.
  6. Remove the fan shroud retainers.
    Fig 2: Removing Fan Shroud Retainers
    G02117808Courtesy of GENERAL MOTORS CORP.
  7. Remove the fan shroud bolts
  8. Remove the upper fan shroud.

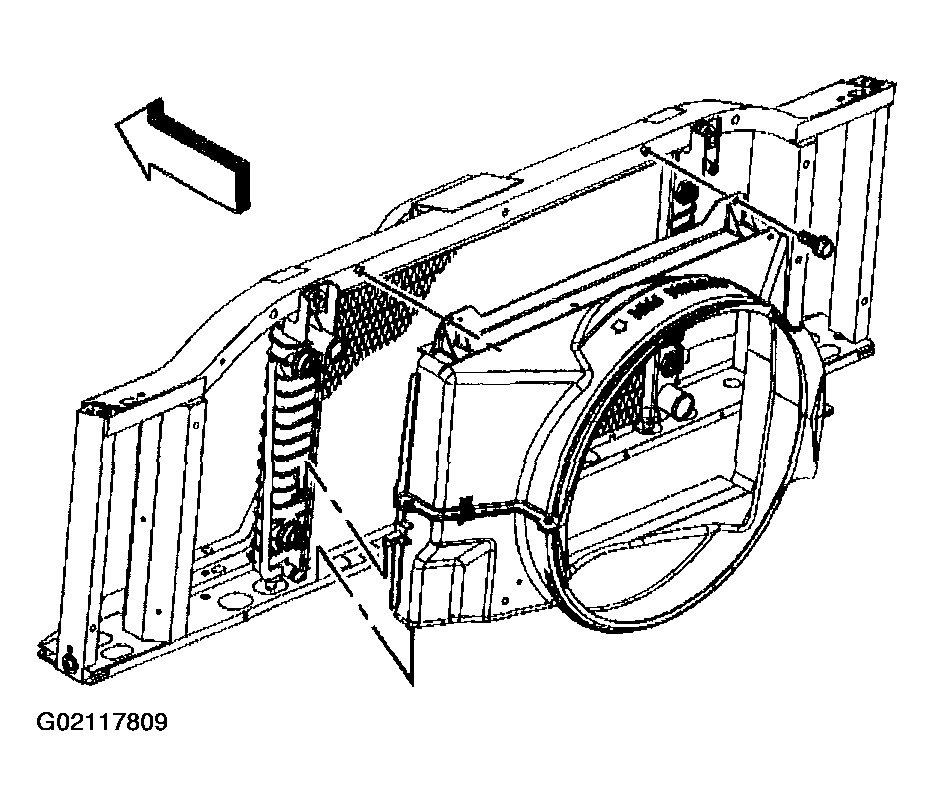

    Fig 3: Removing Upper Fan Shroud
    G02117809Courtesy of GENERAL MOTORS CORP.
