Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. If necessary, remove the engine sight shield.

    Refer to ENGINE SIGHT SHIELD REPLACEMENT (4.8L, 5.3L, AND 6.0L (RPO LQ4) or ENGINE SIGHT SHIELD REPLACEMENT (6.0L (RPO LQ9) in Engine Mechanical - 4.8L, 5.3L, and 6.0L.

  2. Position the coolant air bleed hose clamp at the throttle body.
  3. Remove the coolant air bleed hose from the throttle body.

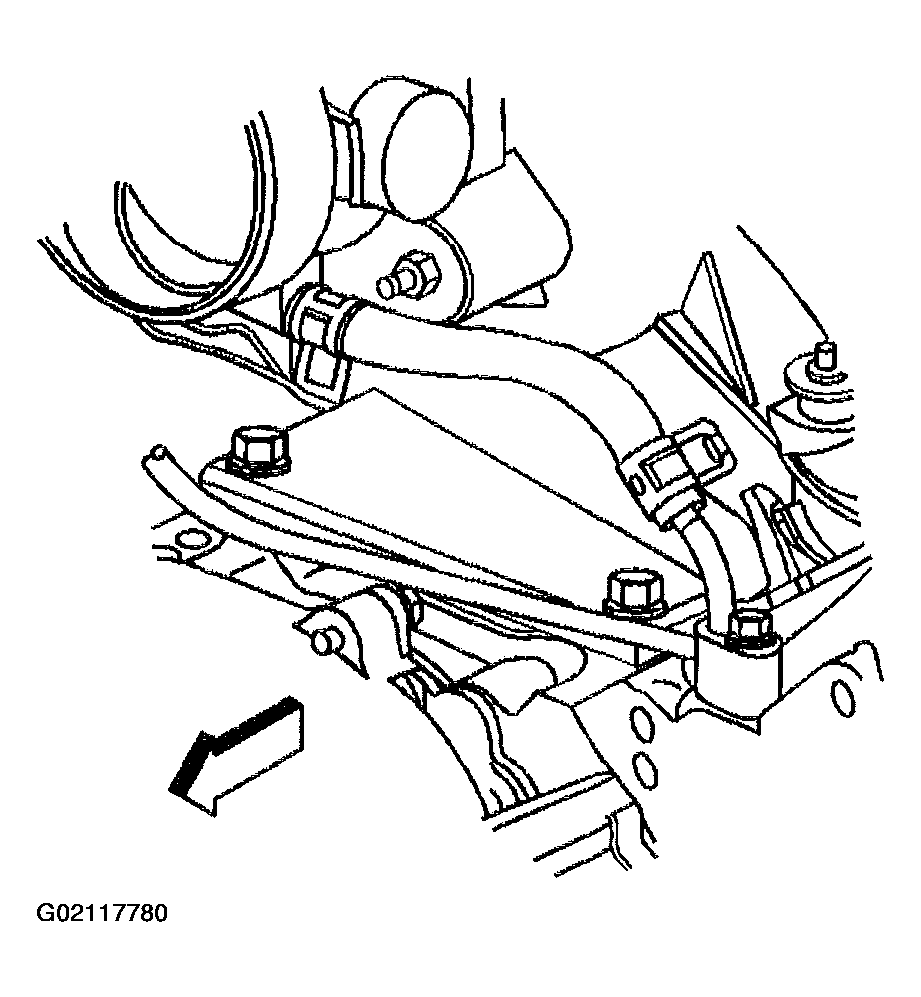

    Fig 1: Removing Coolant Air Bleed Hose From Throttle Body
    G02117780Courtesy of GENERAL MOTORS CORP.
  4. Position the hose clamp at the pipe.
  5. Remove the coolant air bleed hose (1) from the pipe (2).
    Fig 2: Removing Coolant Air Bleed Hose From Pipe
    G02117781Courtesy of GENERAL MOTORS CORP.
