Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. If equipped with air conditioning (A/C), set the air flow control to the instrument panel (IP) vent position.
  2. Apply the parking brake to prevent the vehicle from moving.
  3. If the transmission is automatic, move the shift lever all the way down.
  4. Tilt the steering wheel to the full down position.
  5. Remove the IP cluster trim plate bezel. Refer to BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER  .
  6. Remove the end panels. The left panel is shown, and the right panel is similar.
  7. Remove the right side air outlets.

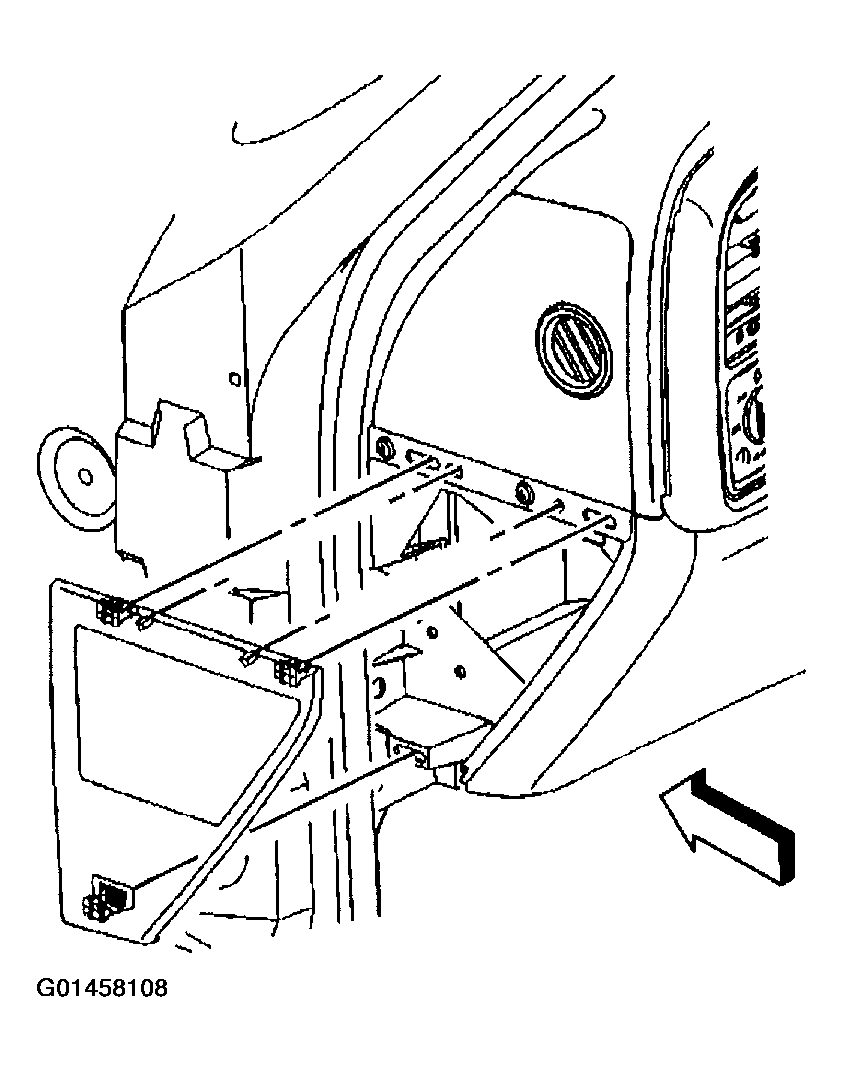

    Fig 1: Removing Instrument Panel Cluster Trim Plate Bezel
    G01458108Courtesy of GENERAL MOTORS CORP.
  8. Remove the assist handle by depressing the release tabs accessed through the air outlet duct holes.
  9. Remove the windshield pillar garnish moldings. Refer to GARNISH MOLDING REPLACEMENT - WINDSHIELD PILLAR in INTERIOR TRIM .
  10. Remove the bolts retaining the panel to IP assembly.

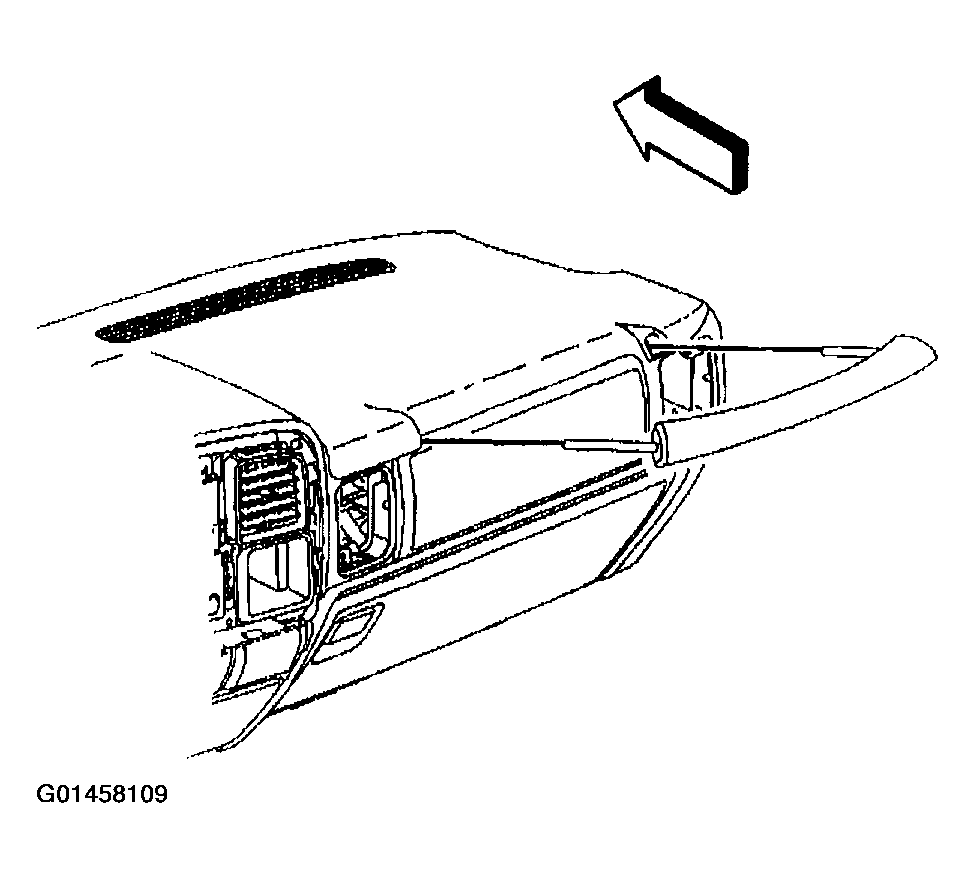

    Fig 2: Removing Assist Handle From IP Assembly
    G01458109Courtesy of GENERAL MOTORS CORP.
  11. Lift the trim panel up to disconnect the electrical connector (1) to the ambient light sensor on the underside of the trim panel.
    Fig 3: Disconnecting Electrical Connector From Ambient Light Sensor
    G01458110Courtesy of GENERAL MOTORS CORP.
  12. Remove the trim panel from the IP assembly.

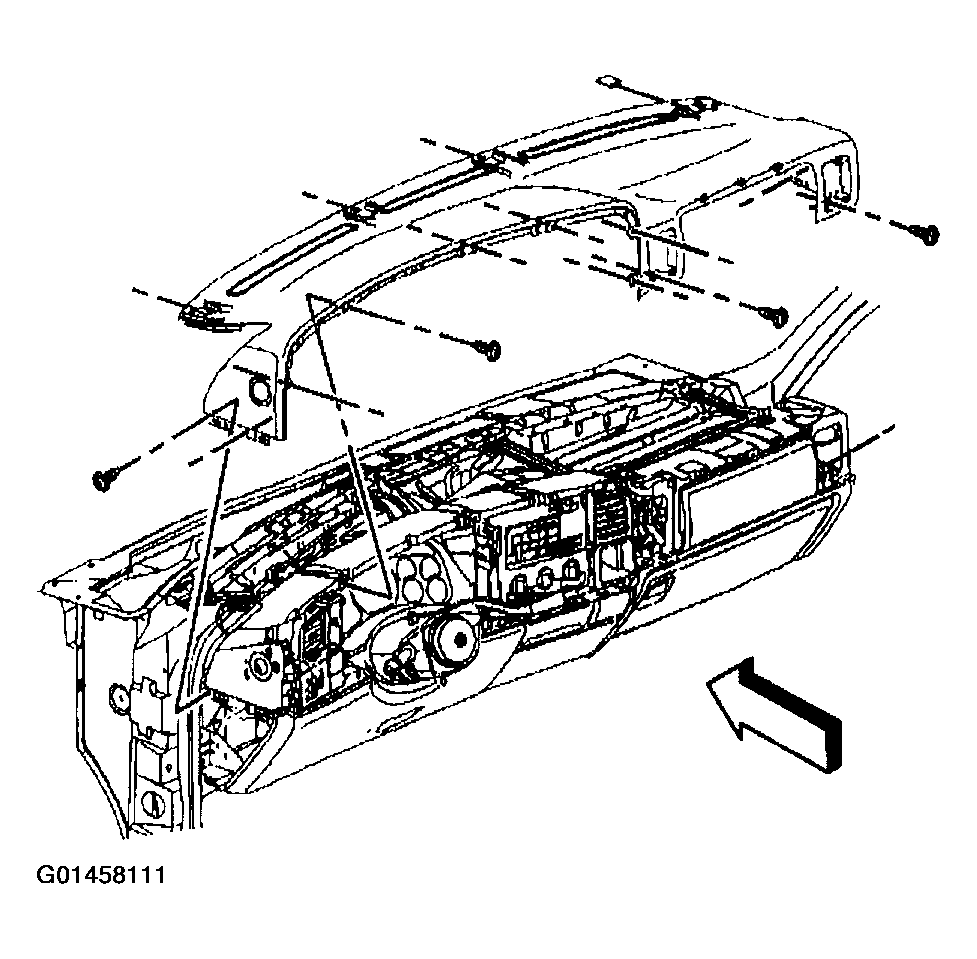

    Fig 4: Removing Trim Panel From Instrument Panel Assembly
    G01458111Courtesy of GENERAL MOTORS CORP.
