Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper trim bezel from the center console. Refer to BEZEL REPLACEMENT - FLOOR CONSOLE (NON-LUXURY UPPER)  or BEZEL REPLACEMENT - FLOOR CONSOLE (LUXURY UPPER)  or BEZEL REPLACEMENT - FLOOR CONSOLE (NON-LUX LOWER)  .
  2. Insert a flat bladed tool between the console and cupholder assembly.
  3. Remove the cupholder assembly by prying the cupholder to release the clips (2).
  4. Remove the wire connector for the cupholder.
  5. Remove the cupholder from the console.

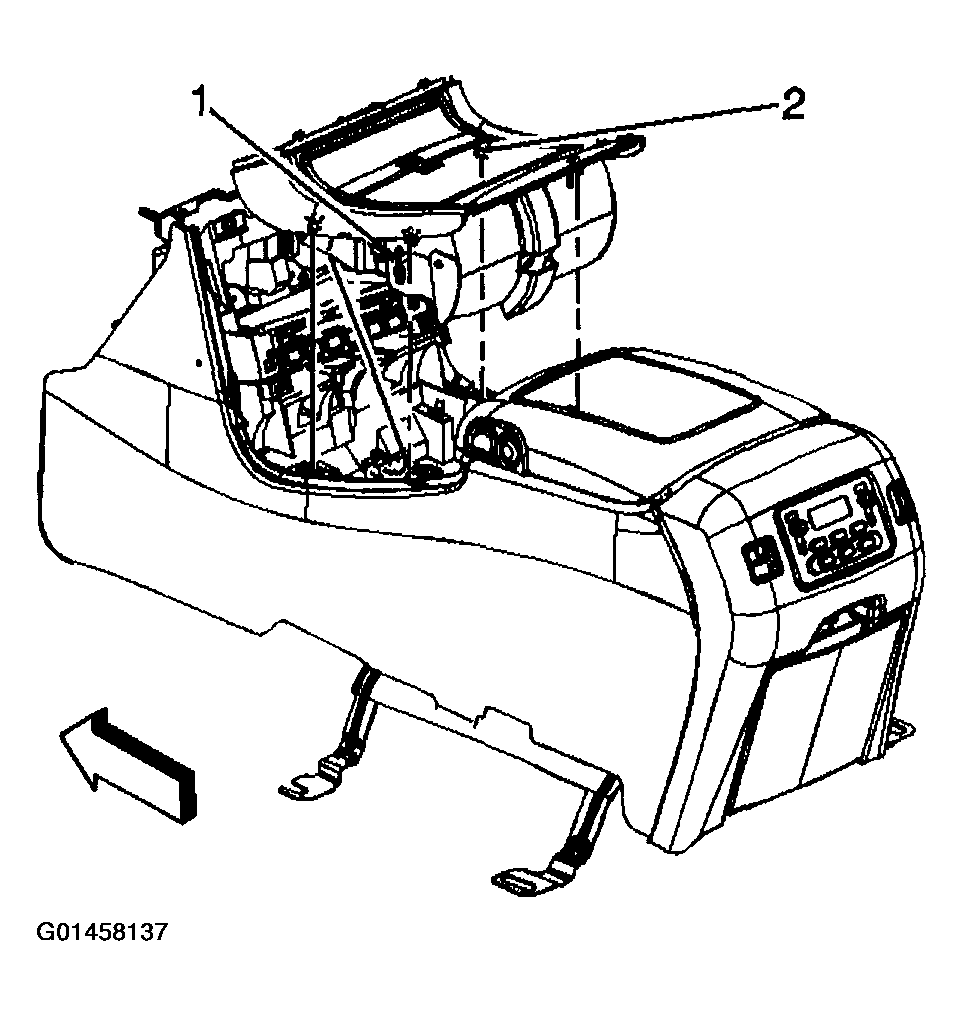

    Fig 1: Removing Cupholder From Console - Luxury
    G01458137Courtesy of GENERAL MOTORS CORP.
