Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place the bezel to the console.
  2. Connect the electrical connectors (1) and (2).

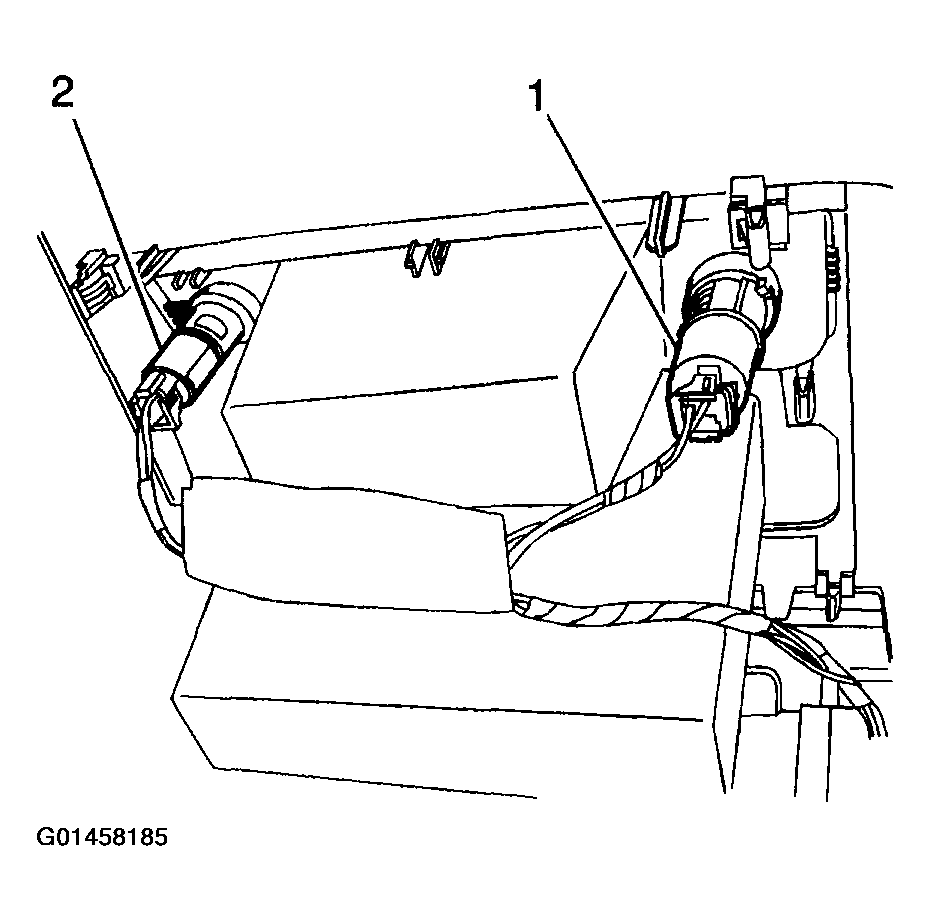

    Fig 1: Connecting Electrical Connectors - Non-Luxury Upper
    G01458185Courtesy of GENERAL MOTORS CORP.
  3. Install the bezel to the console pushing on the corners till the retainers click in place.
  4. Install the I/P cluster bezel. Refer to BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER  .

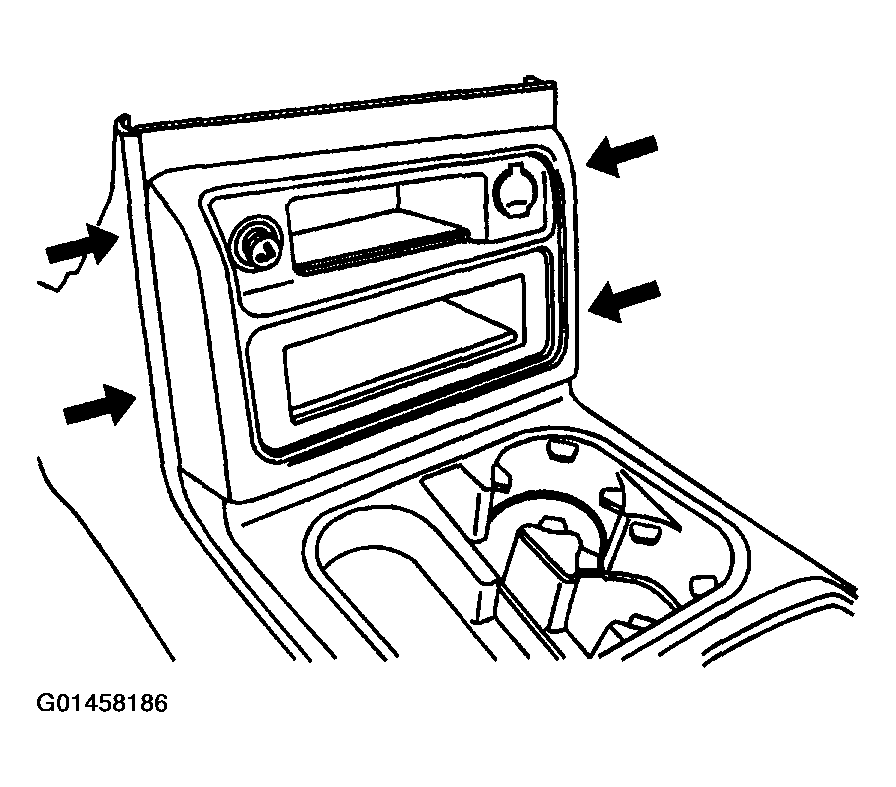

    Fig 2: Installing Instrument panel cluster bezel - Non-Luxury Upper
    G01458186Courtesy of GENERAL MOTORS CORP.
