Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bezel to the console till it clicks in place.
  2. Install the storage bin. Refer to CONSOLE STORAGE BIN REPLACEMENT (EXPECT PRO)  .

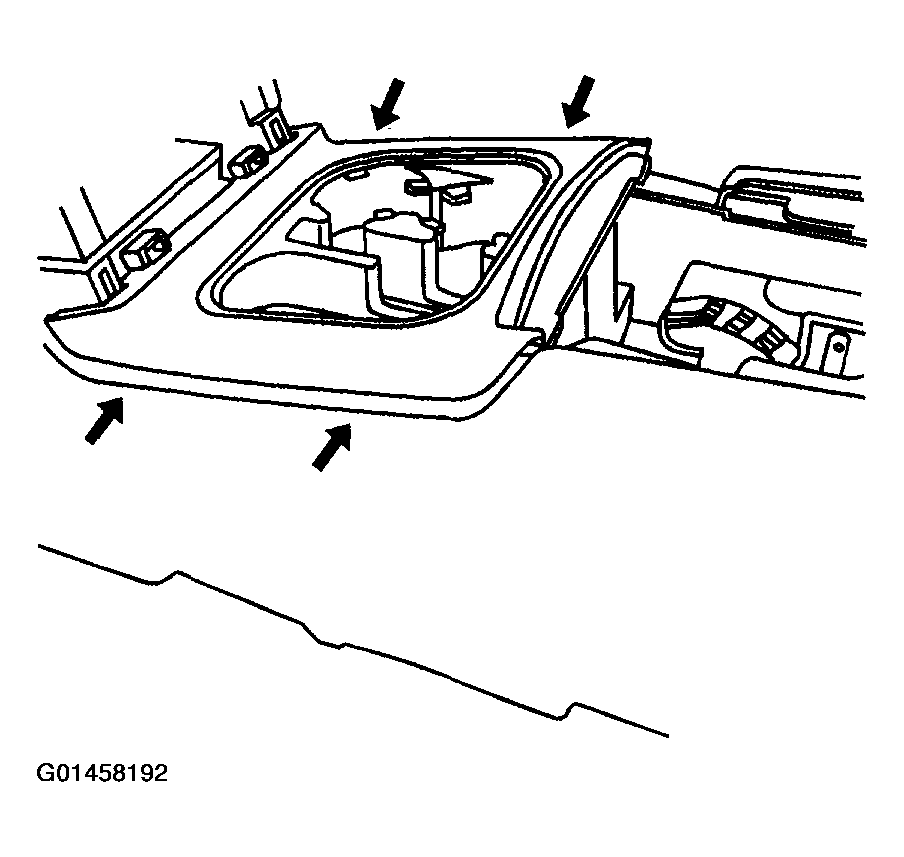

    Fig 1: Installing Bezel To Console - Non-Lux Lower
    G01458192Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connectors (1, 2) to the upper bezel.

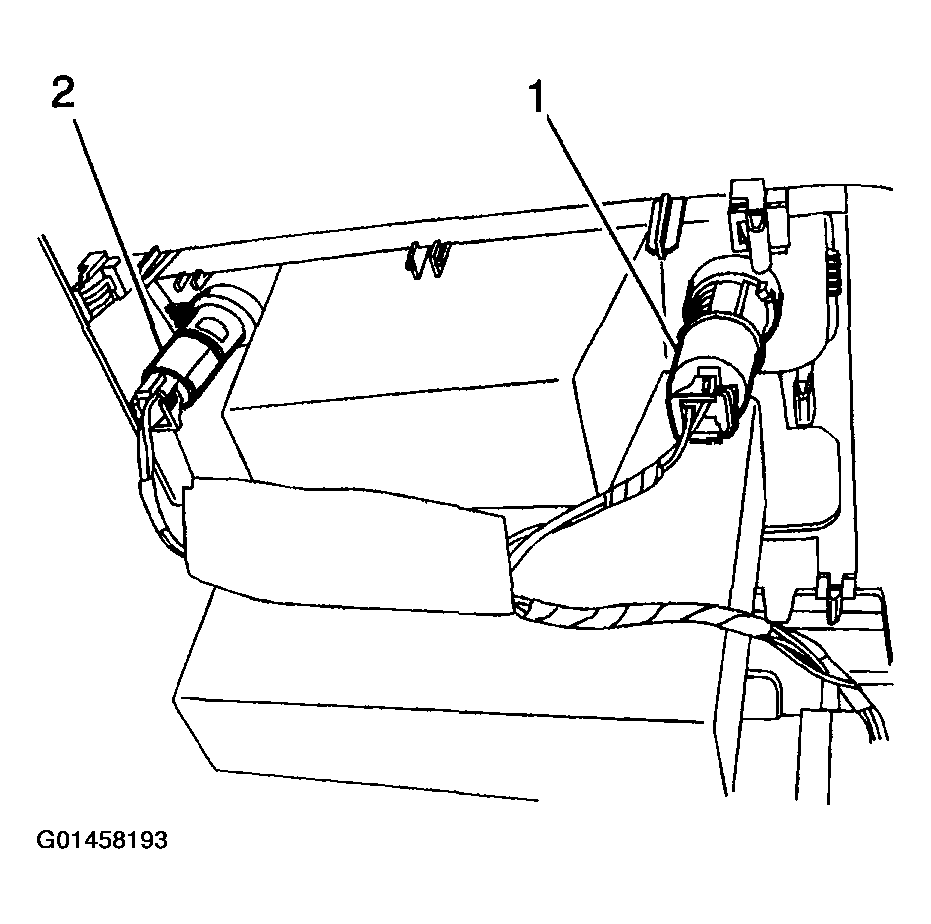

    Fig 2: Connecting Electrical Connectors - Non-Lux Lower
    G01458193Courtesy of GENERAL MOTORS CORP.
  4. Install the upper bezel till it clicks in place.
  5. Install the cluster bezel. Refer to BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER  .

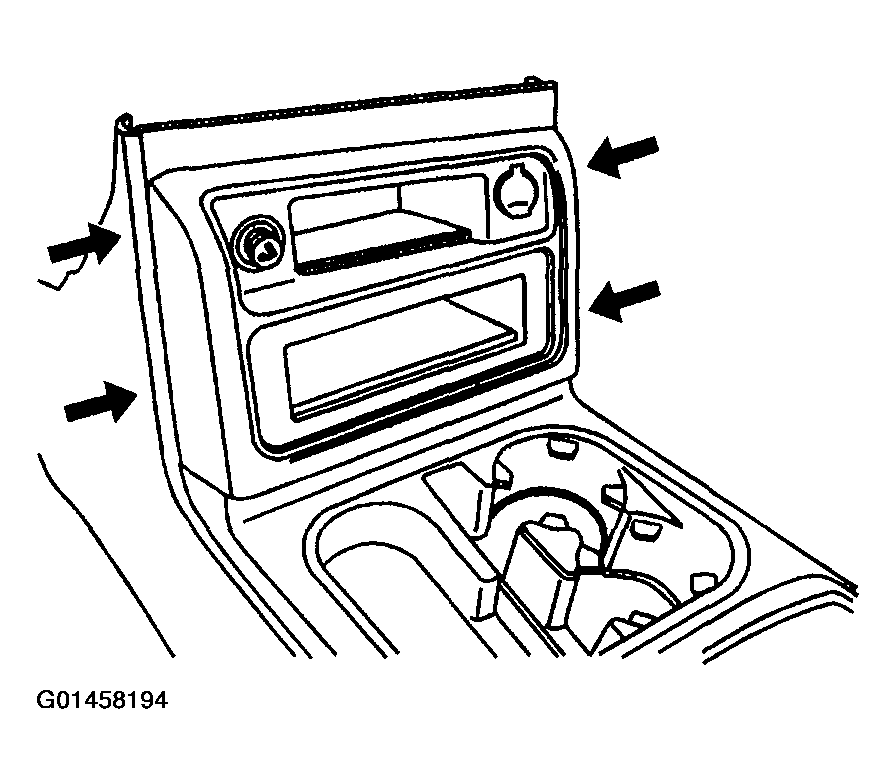

    Fig 3: Installing Upper Bezel - Non-Lux Lower
    G01458194Courtesy of GENERAL MOTORS CORP.
