Test Description

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

3. This step tests for high resistance in the signal circuits and the low reference circuit of the fuel level senders.
13. DTCs will be set in the PCM when you perform this diagnostic table.

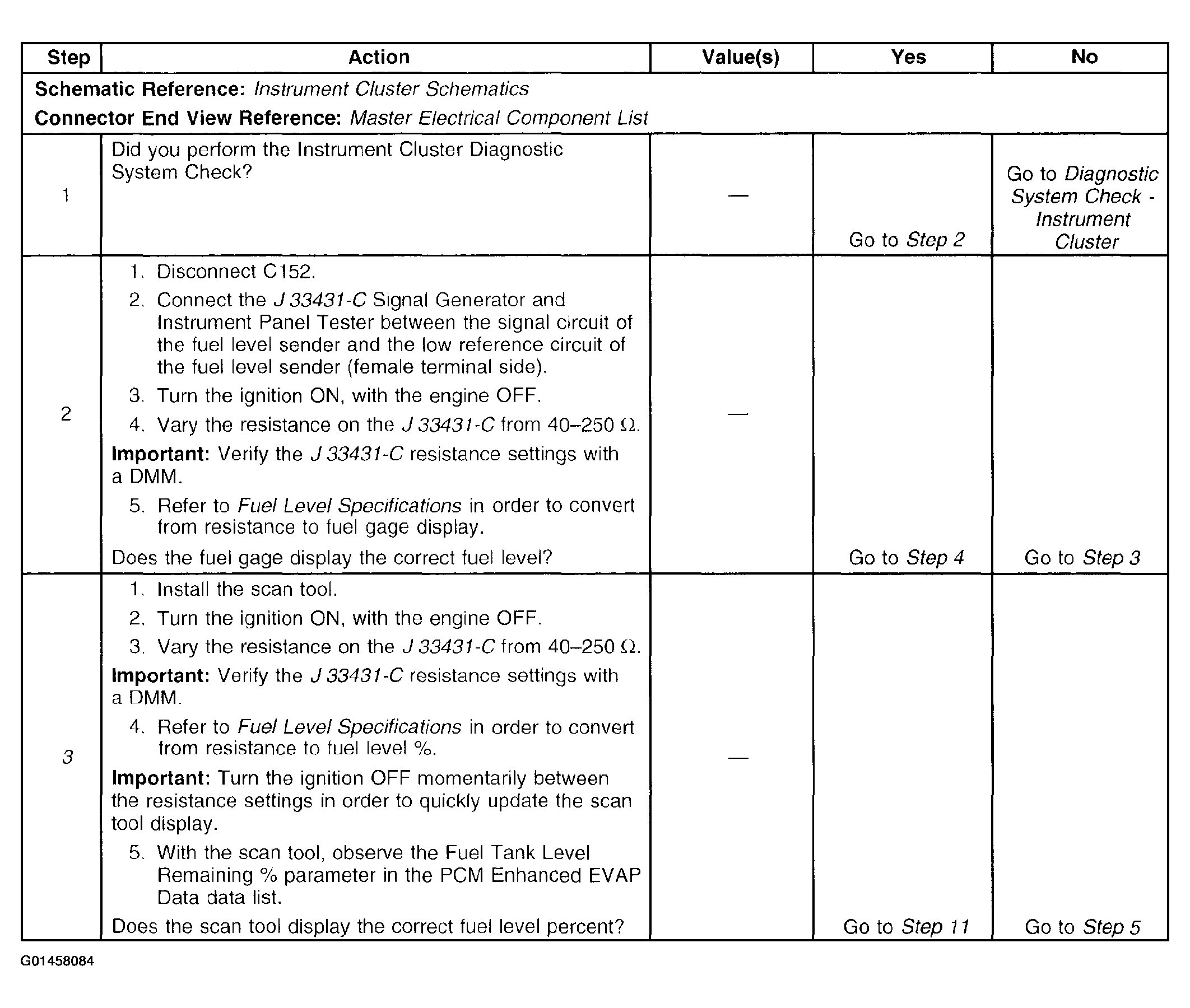

Fig 1: Fuel Gage Inaccurate or Inoperative (Single Tank) - Diagnostic Symptom Table (Steps 1 - 3)
Courtesy of GENERAL MOTORS CORP.

Fig 2: Fuel Gage Inaccurate or Inoperative (Single Tank) - Diagnostic Symptom Table (Steps 4 - 11)
Courtesy of GENERAL MOTORS CORP.

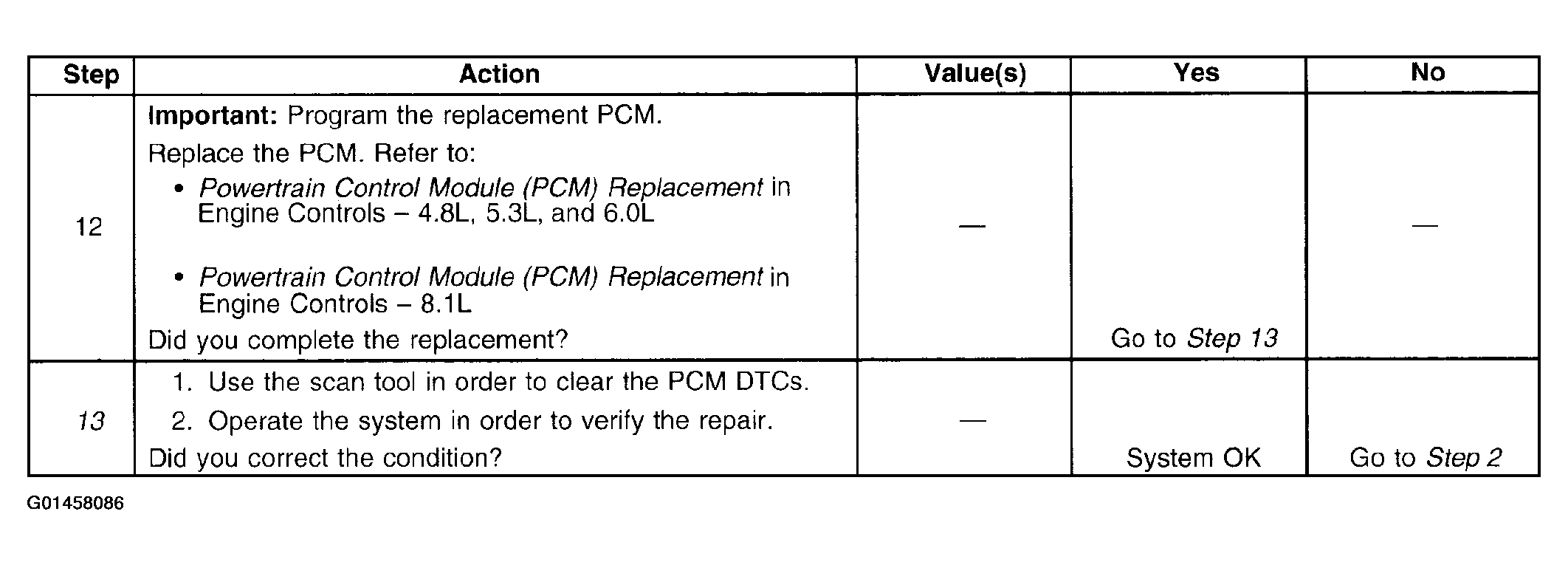

Fig 3: Fuel Gage Inaccurate or Inoperative (Single Tank) - Diagnostic Symptom Table (Steps 12 - 13)
Courtesy of GENERAL MOTORS CORP.
