Test Description

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

  1. Tests for the proper operation of the circuit in the low voltage range.

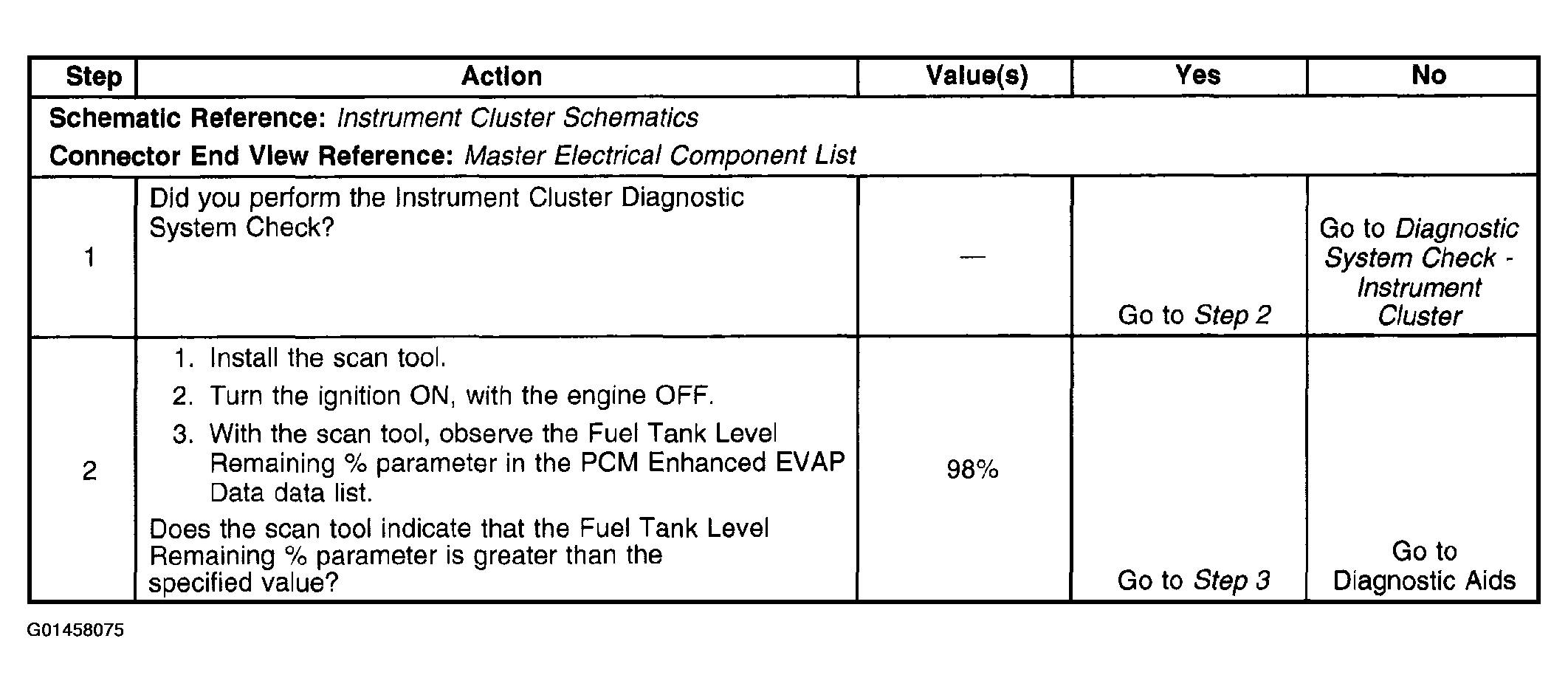

Fig 1: DTC P2068 Primary & Secondary Fuel Level Sender Changes Resistance - Diagnostic Table (Steps 1 - 2)
G01458075Courtesy of GENERAL MOTORS CORP.

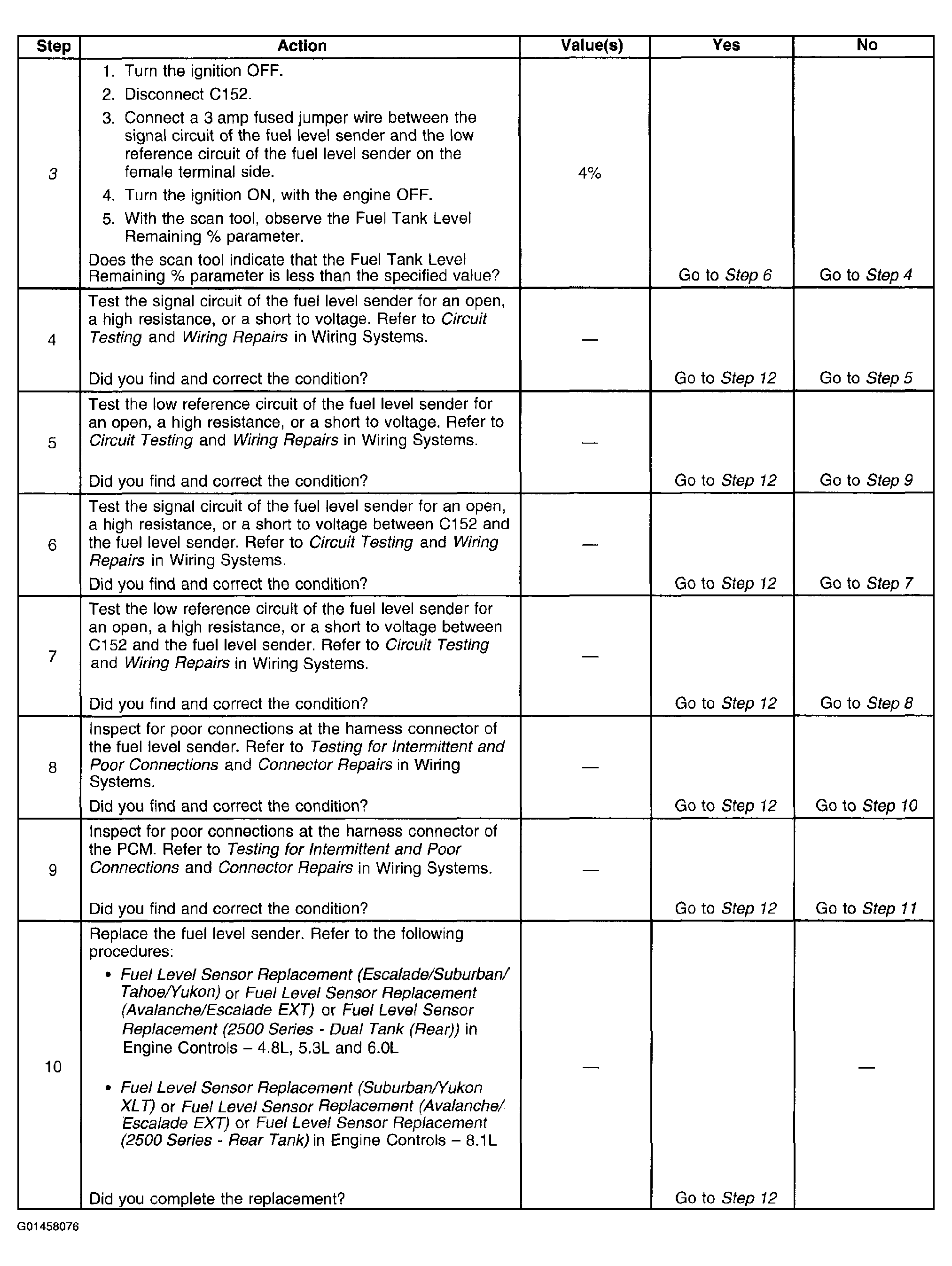

Fig 2: DTC P2068 Primary & Secondary Fuel Level Sender Changes Resistance - Diagnostic Table (Steps 3 - 10)
G01458076Courtesy of GENERAL MOTORS CORP.

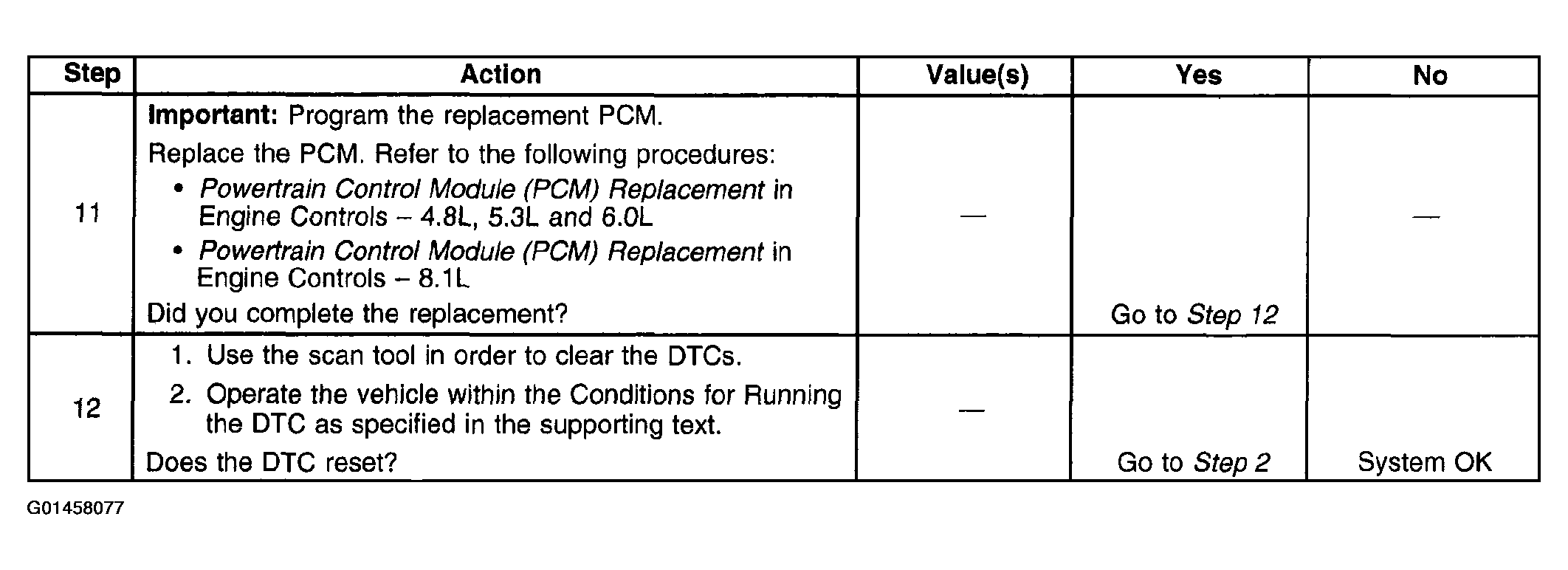

Fig 3: DTC P2068 Primary & Secondary Fuel Level Sender Changes Resistance - Diagnostic Table (Steps 11 - 12)
G01458077Courtesy of GENERAL MOTORS CORP.
