Test Description

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 2.  This step verifies that the DTC is still present.
  2. 3.  This step isolates the fault condition.

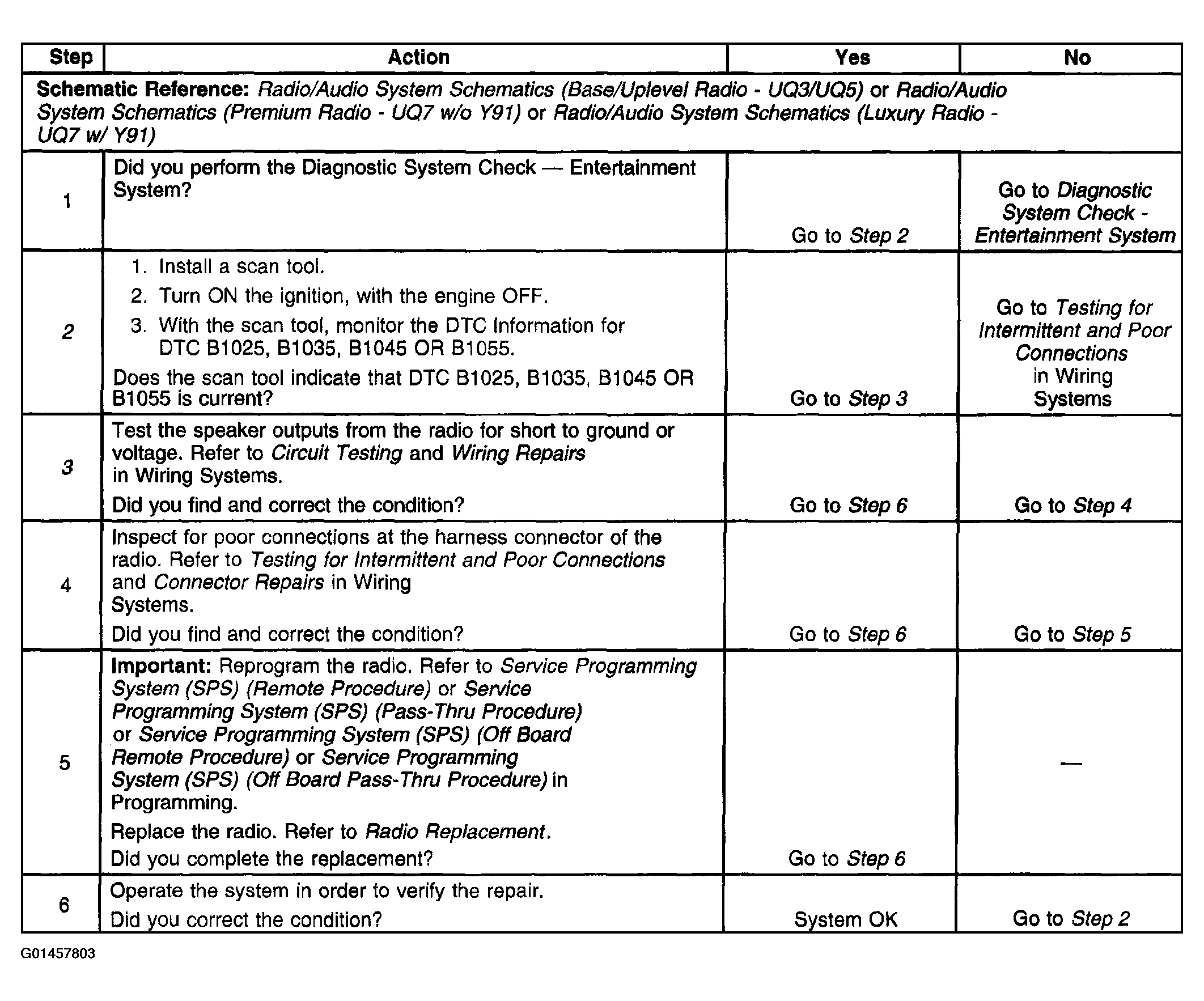

Fig 1: Diagnostic System Check - DTC B1025, B1035, B1045, Or B1055
G01457803Courtesy of GENERAL MOTORS CORP.
