Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Support the transmission with a suitable transmission jack.
  3. Remove the transmission mount to transmission support nuts.

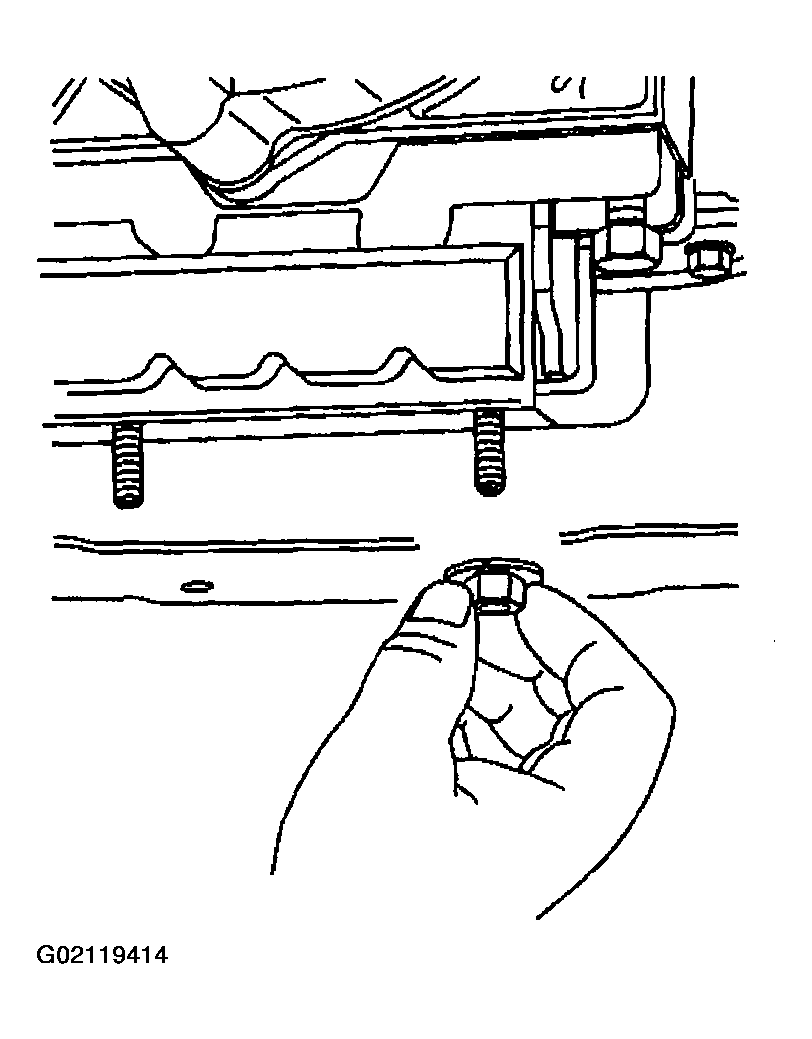

    4. Fig 1: Removing Transmission Mount To Transmission Support Nuts
    G02119414Courtesy of GENERAL MOTORS CORP.
  4. Raise the transmission off of the transmission support.
  5. Remove the transmission support crossmember bolts.

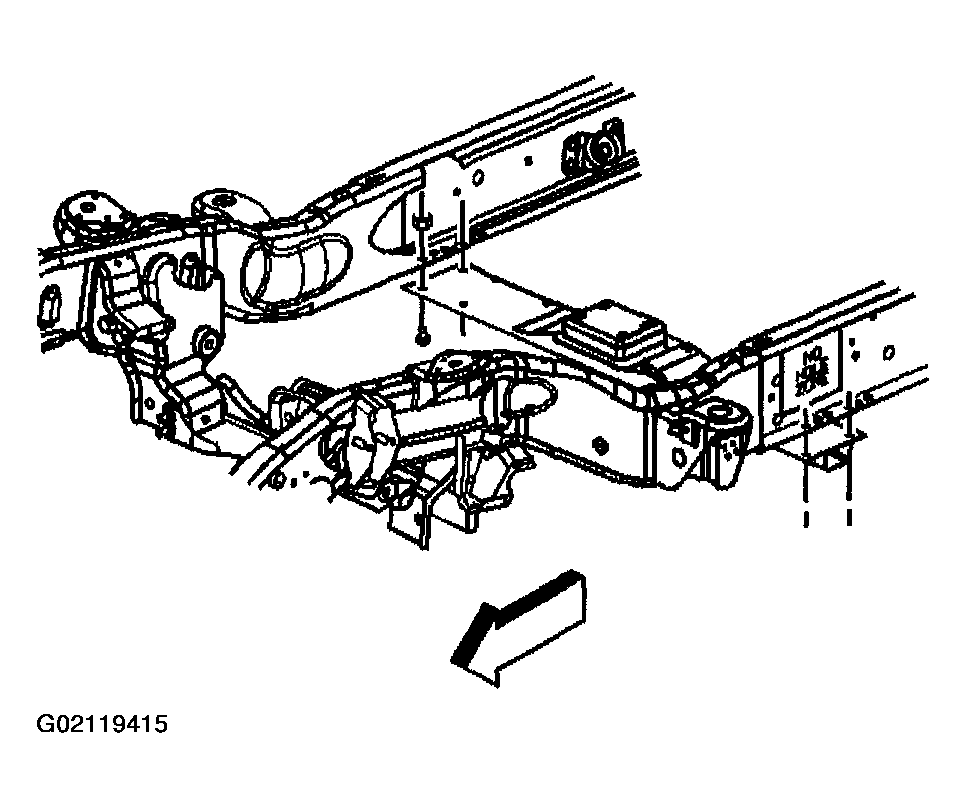

    6. Fig 2: Removing Transmission Support Crossmember
    G02119415Courtesy of GENERAL MOTORS CORP.
  6. Remove the transmission support crossmember.
  7. Remove the exhaust muffler. Refer to MUFFLER REPLACEMENT (4.8L AND 5.3L ENGINES)  or MUFFLER REPLACEMENT (6.0L AND 8.1L ENGINES)  .
  8. Remove the clip around the engine harness and the oxygen sensor pigtail.

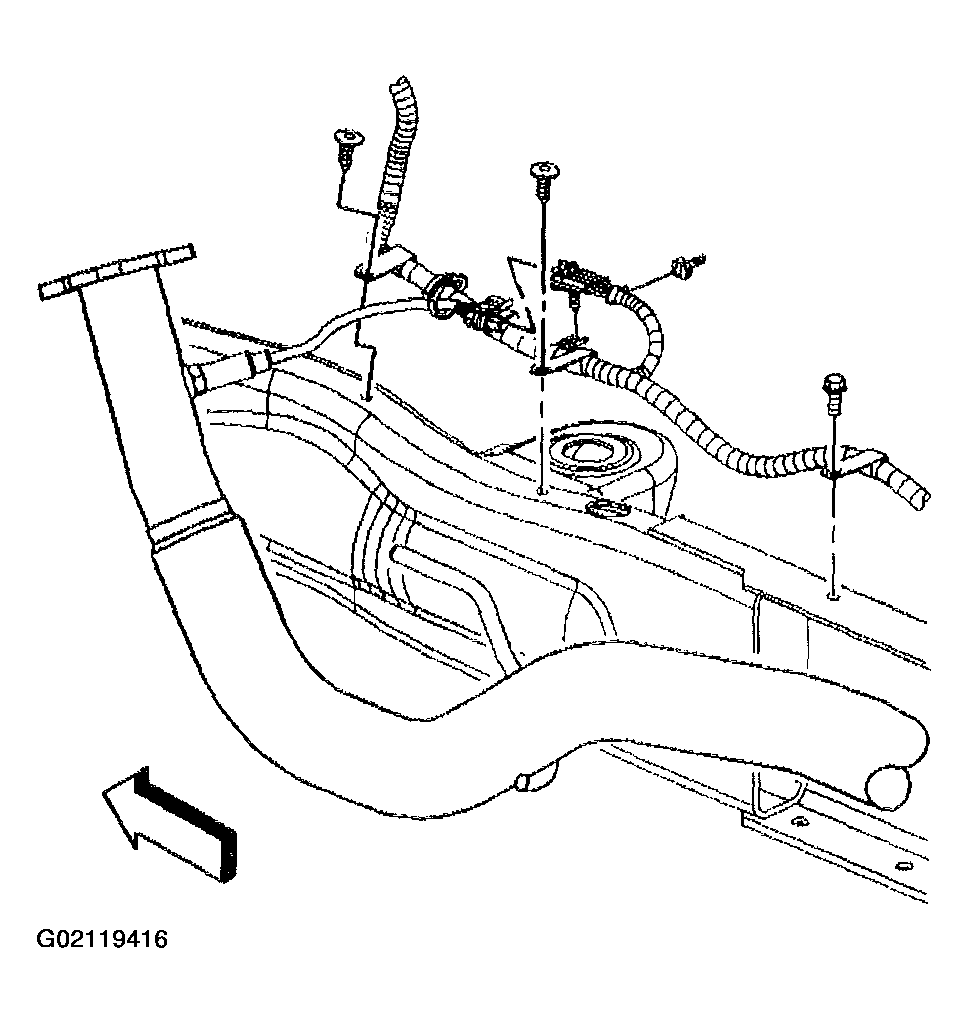

    9. Fig 3: Removing Clip Around Engine Harness And Oxygen Sensor Pigtail
    G02119416Courtesy of GENERAL MOTORS CORP.
  9. Disconnect the connector position assurance (CPA) retainer.
  10. Disconnect the oxygen sensor electrical connector.
  11. Remove the oxygen sensor.
  12. Remove the exhaust manifold pipe nuts.
    13. Fig 4: Removing Exhaust Manifold Pipe Nuts
    G02119417Courtesy of GENERAL MOTORS CORP.
  13. Using the transmission jack, lower the transmission slightly.
  14. Remove the exhaust manifold pipe.

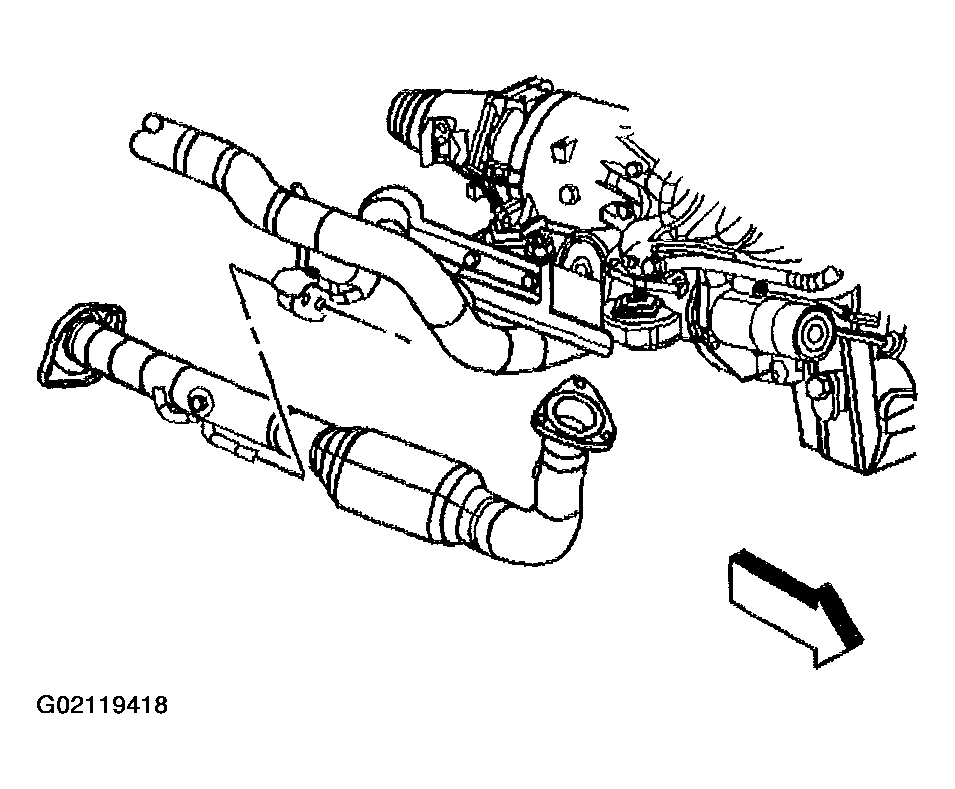

    15. Fig 5: Removing Exhaust Manifold Pipe
    G02119418Courtesy of GENERAL MOTORS CORP.
  15. Discard the exhaust manifold pipe seal.
