Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the exhaust manifold pipe. Refer to EXHAUST MANIFOLD PIPE REPLACEMENT (6.0L AND 8.1L ENGINES)  .
  2. Remove the catalytic converter. Refer to CATALYTIC CONVERTER REPLACEMENT (4.8L AND 5.3L ENGINES)  or CATALYTIC CONVERTER REPLACEMENT (6.0L AND 8.1L ENGINES)  .
  3. If equipped with a 4L80E transmission, remove the exhaust pipe hanger bracket bolts.

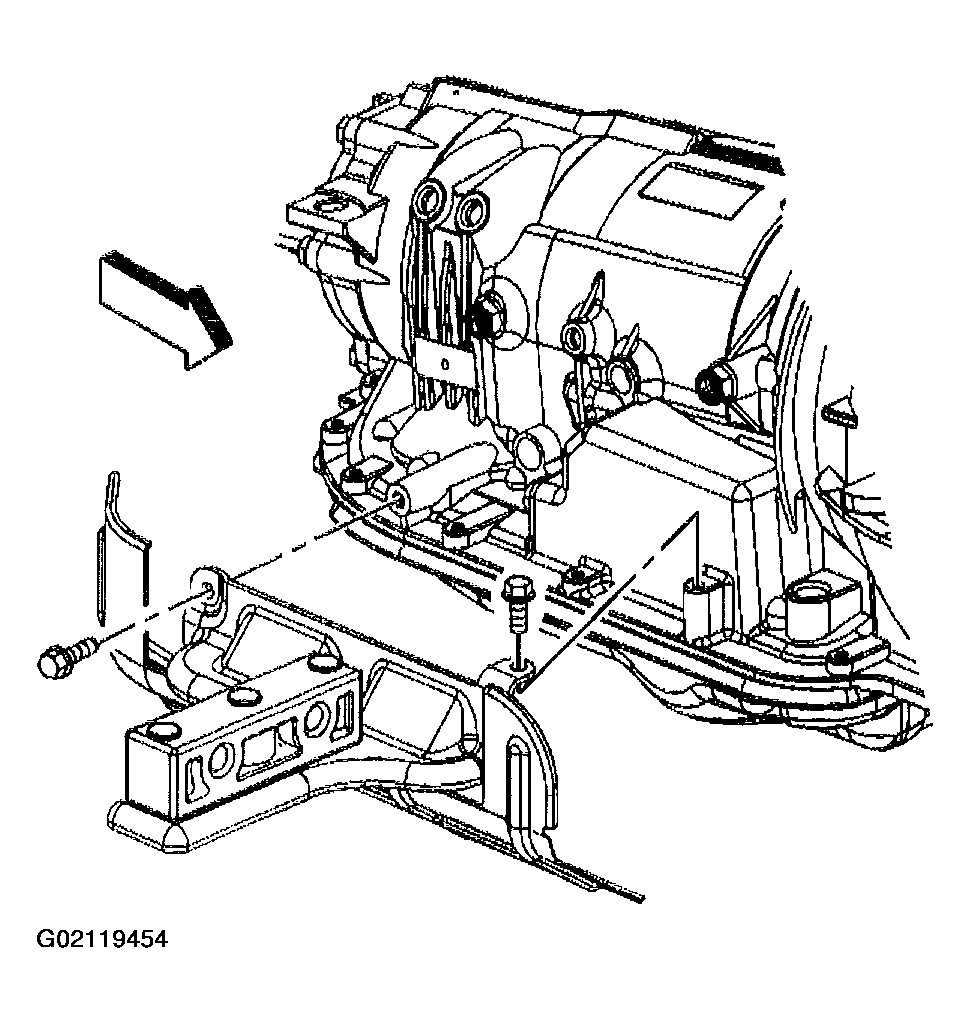

    4. Fig 1: Removing Exhaust Pipe Hanger Bracket Bolts
    G02119454Courtesy of GENERAL MOTORS CORP.
  4. If equipped with a 4L60E transmission, remove the exhaust pipe hanger bracket bolts.
  5. Remove the exhaust manifold pipe bracket.

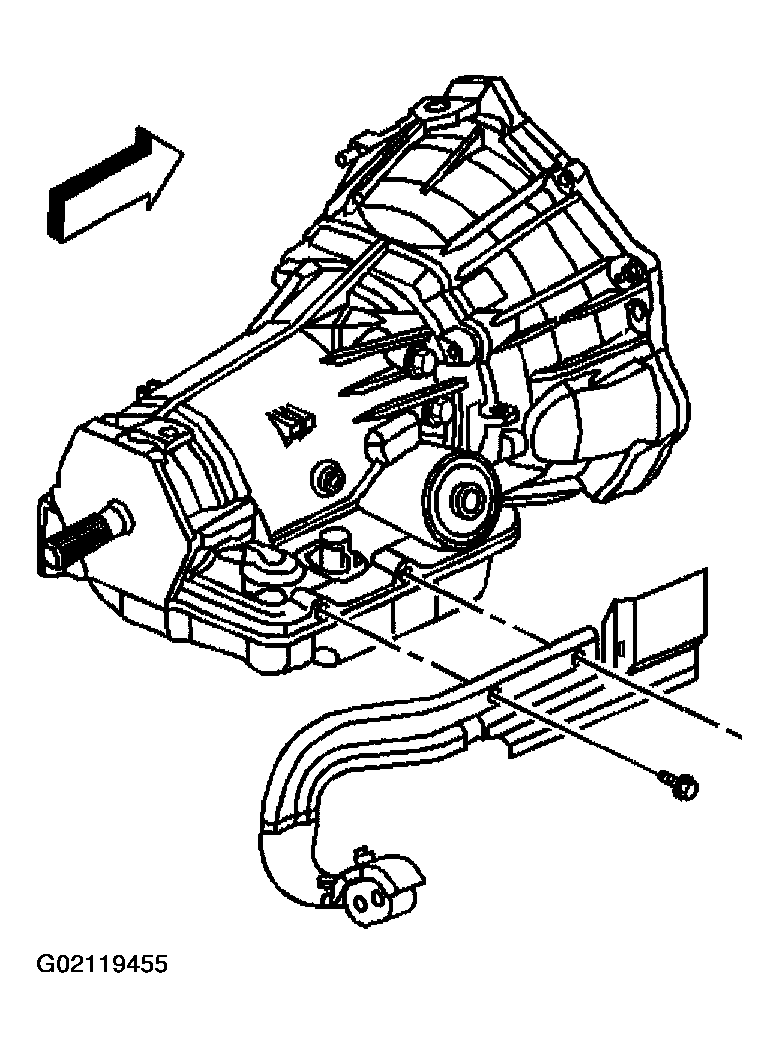

    6. Fig 2: Removing Exhaust Manifold Pipe Bracket
    G02119455Courtesy of GENERAL MOTORS CORP.
