Test Description

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

  1. 2.  This step tests if the IPC is able to illuminate the traction off indicator during the bulb check.

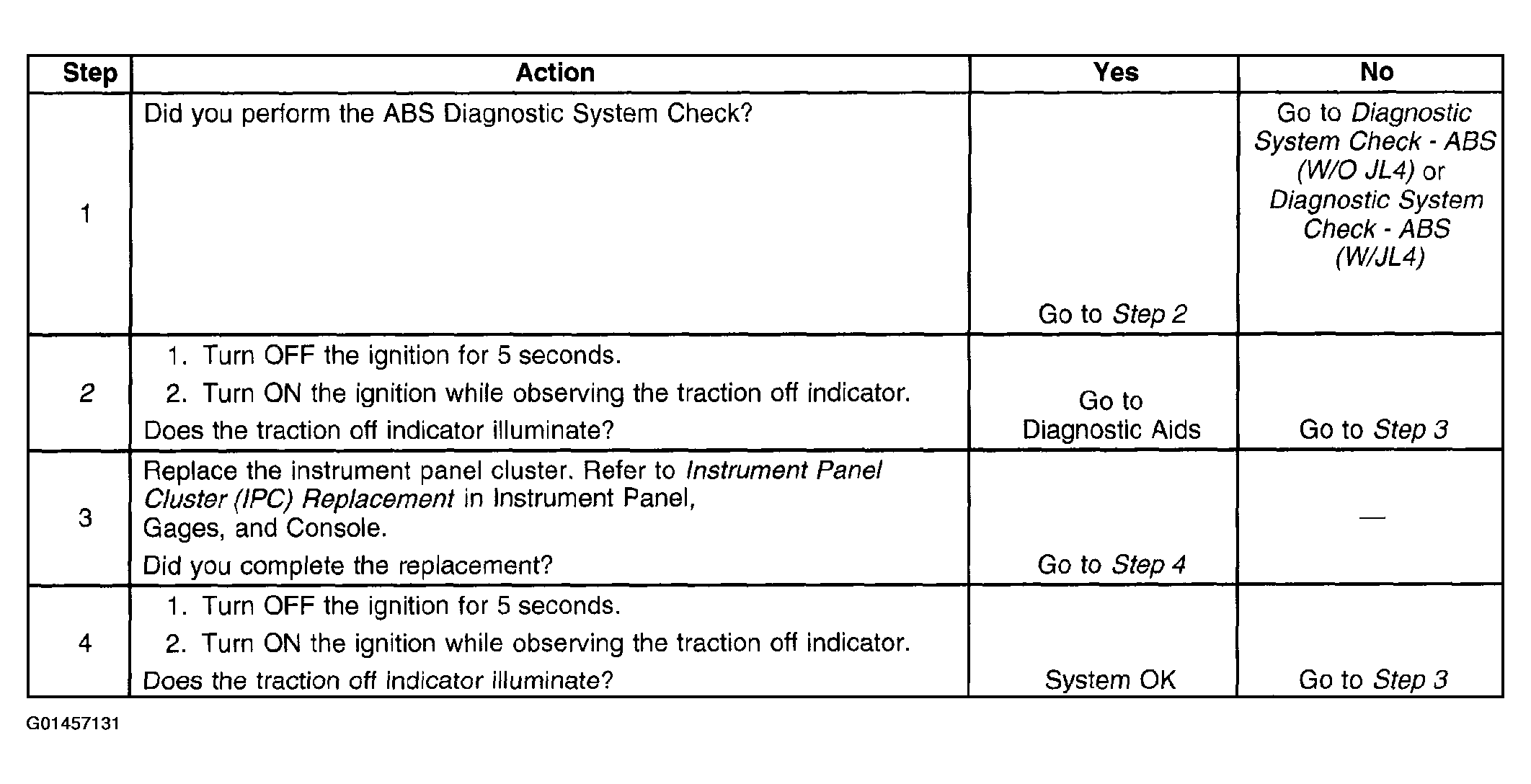

Fig 1: Traction Off Indicator Inoperative
G01457131Courtesy of GENERAL MOTORS CORP.
