Test Description

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

  1. 4.  This step tests the traction control switch circuitry. If the fuse opens when you perform this test, the traction control switch signal circuit is shorted to ground.

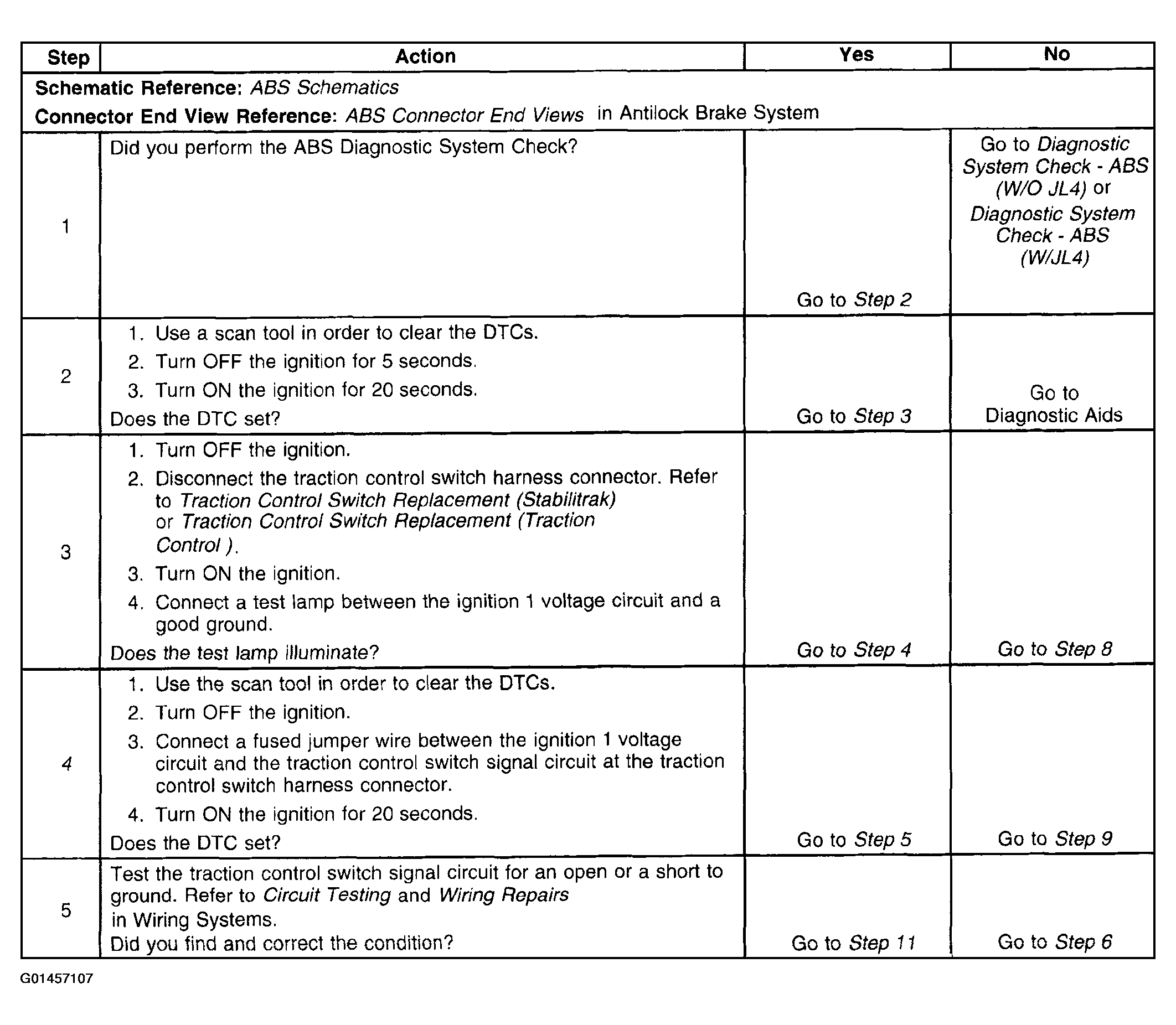

Fig 1: DTC C0283 (w/o JL4) (1 Of 2)
G01457107Courtesy of GENERAL MOTORS CORP.

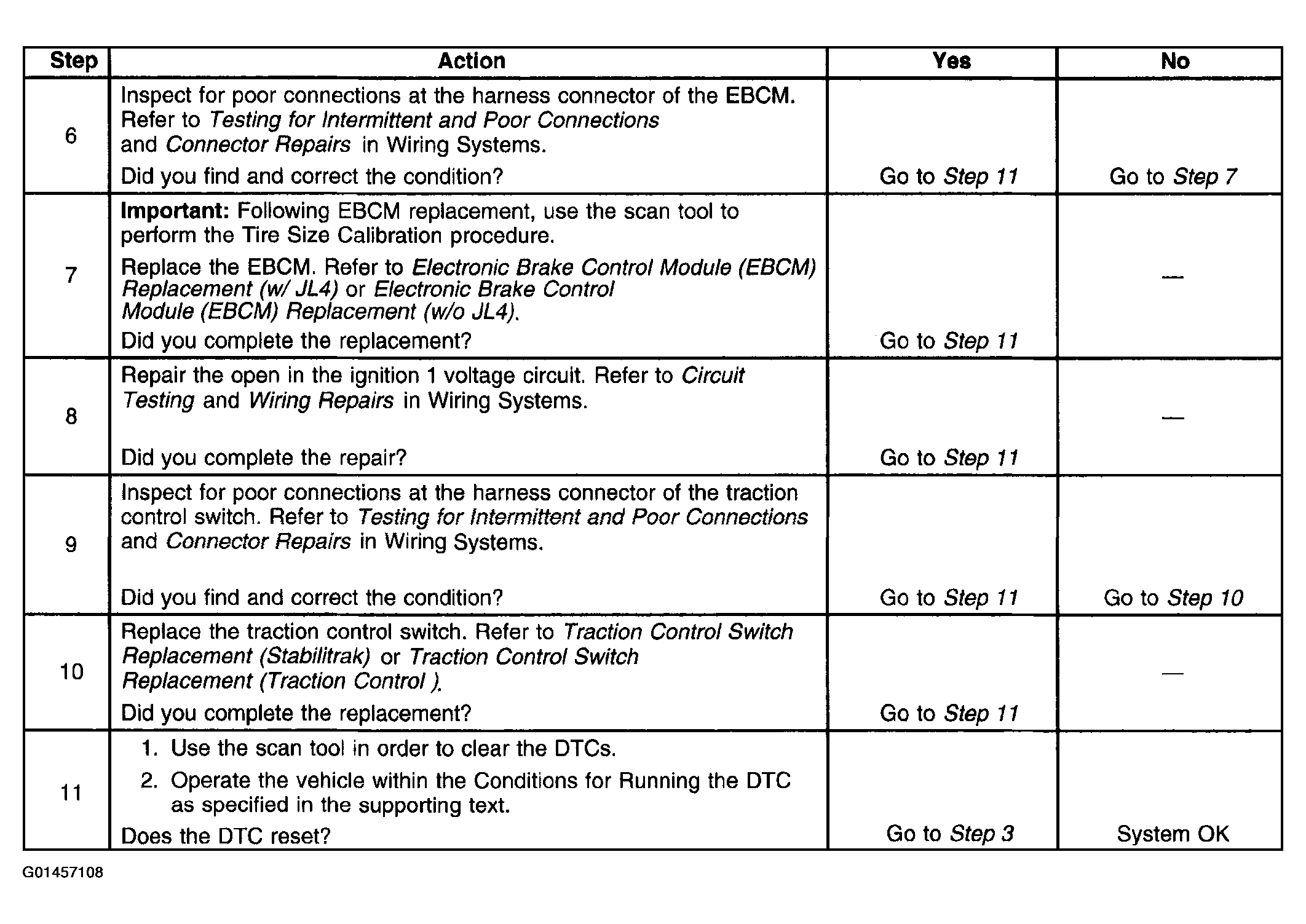

Fig 2: DTC C0283 (w/o JL4) (2 Of 2)
G01457108Courtesy of GENERAL MOTORS CORP.
