Test Description

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 4.  This step tests for a shorted stop lamp switch.
  2. 5.  This step tests for an open stop lamp switch.

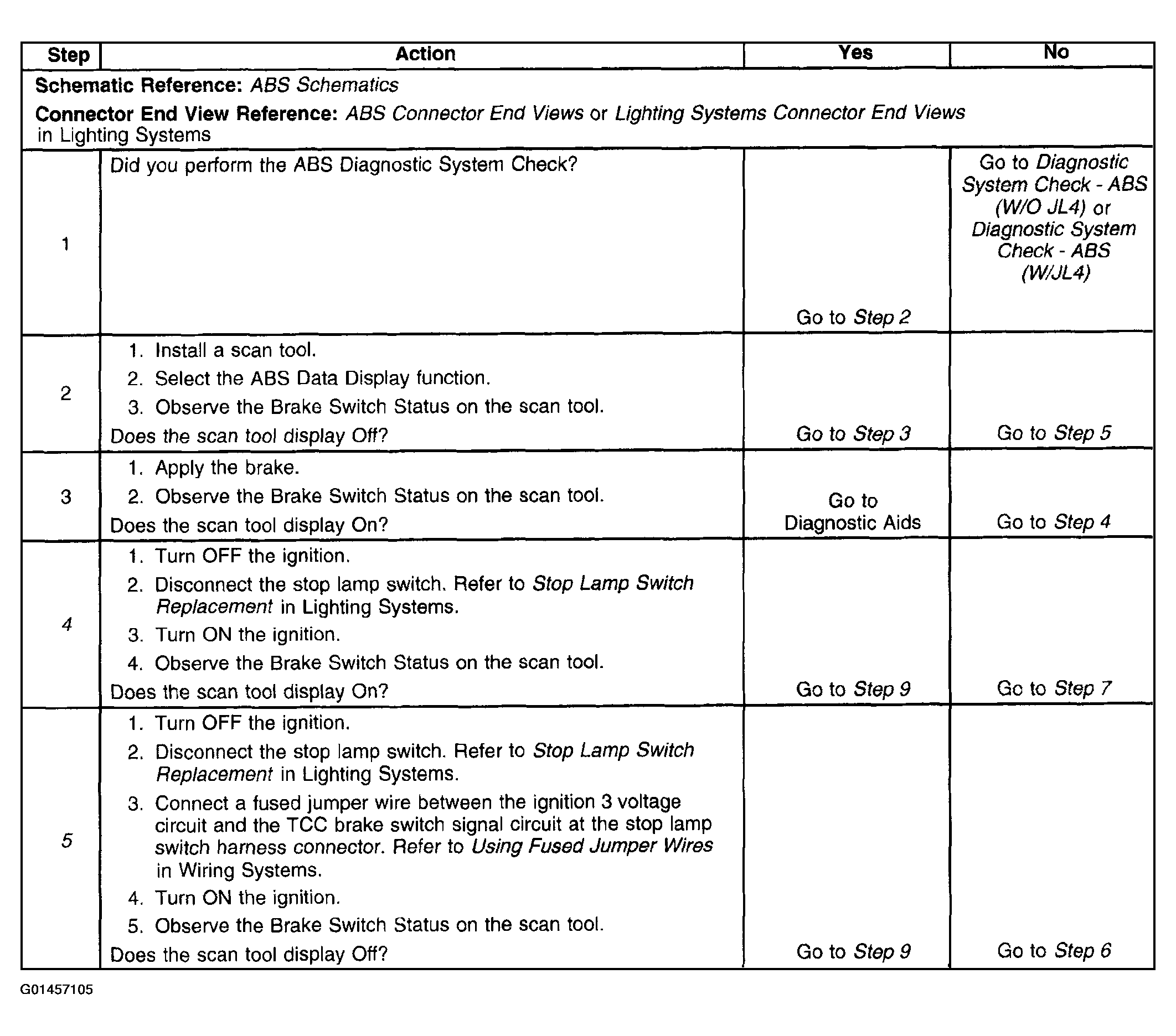

Fig 1: DTC C0281 (1 Of 2)
G01457105Courtesy of GENERAL MOTORS CORP.

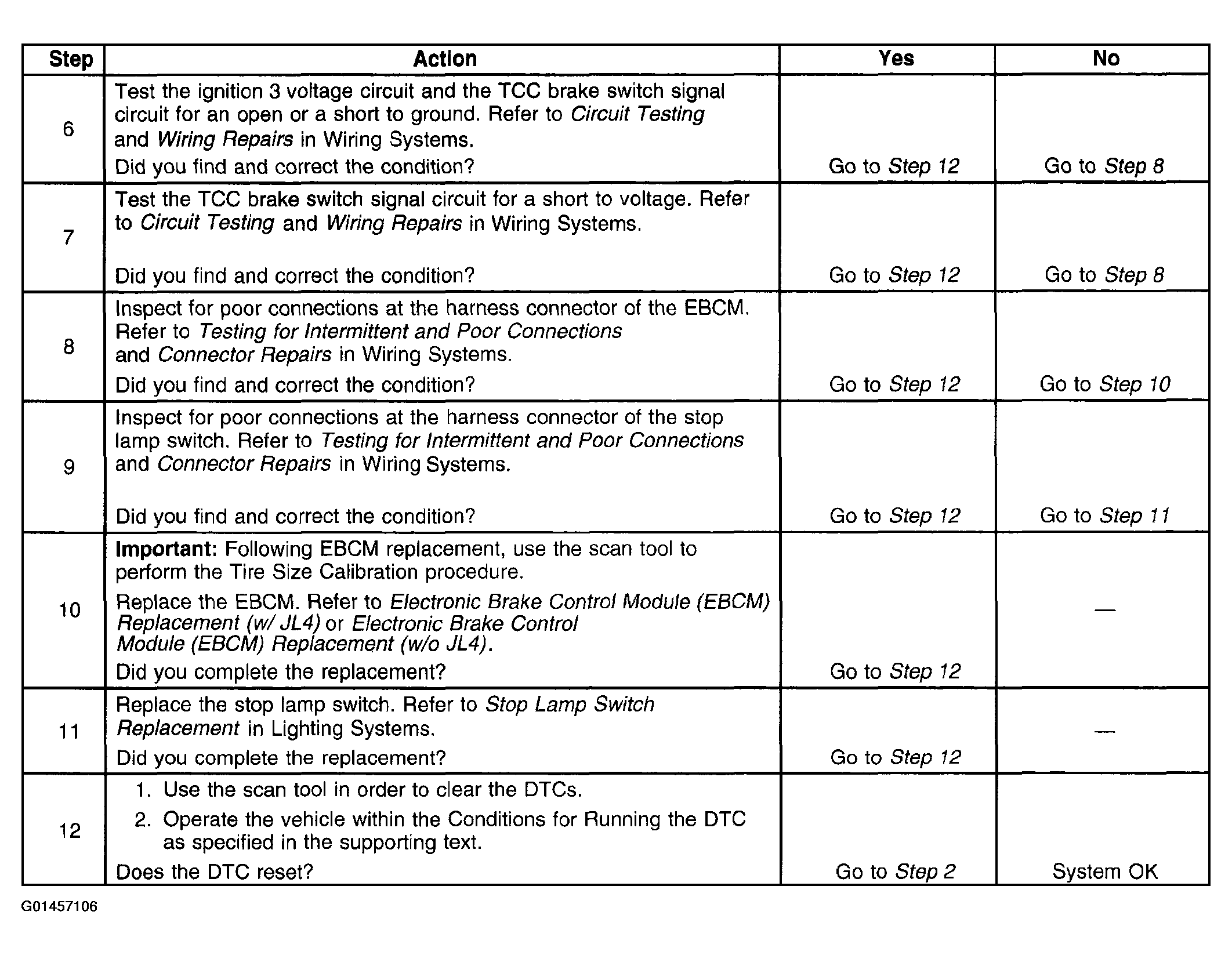

Fig 2: DTC C0281 (2 Of 2)
G01457106Courtesy of GENERAL MOTORS CORP.
