Test Description

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

  1. 4.  If the front tires are not the same size as the rear tires, the EBCM calibration must match the FRONT tire size and the PCM calibration must match the REAR tire size.

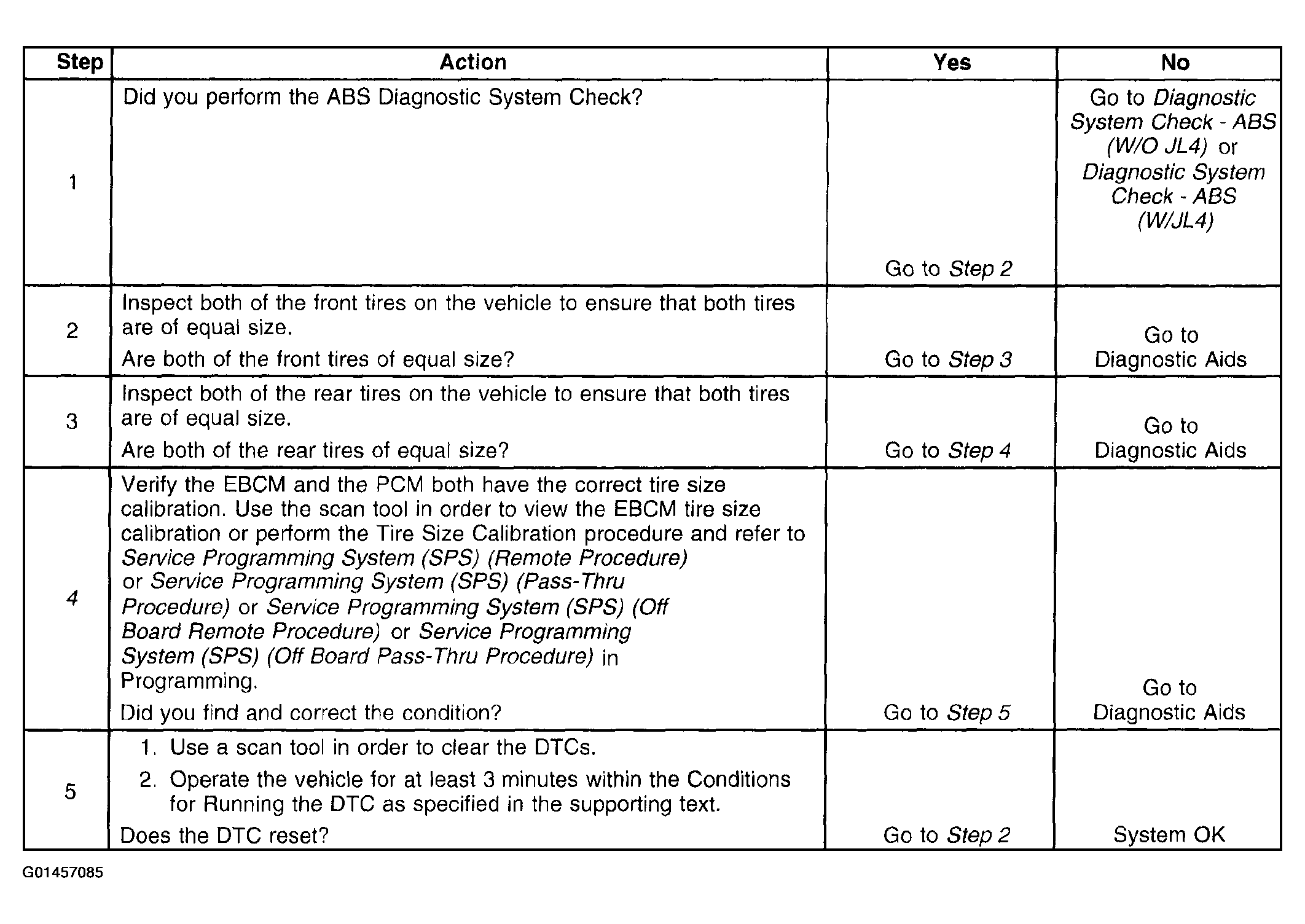

Fig 1: DTC C0238
G01457085Courtesy of GENERAL MOTORS CORP.
