Test Description

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

  1. 3.  A shorted ABS pump motor may damage the contacts within the system relay. It is imperative that the steps in the table be followed to prevent damage to a replacement EBCM.

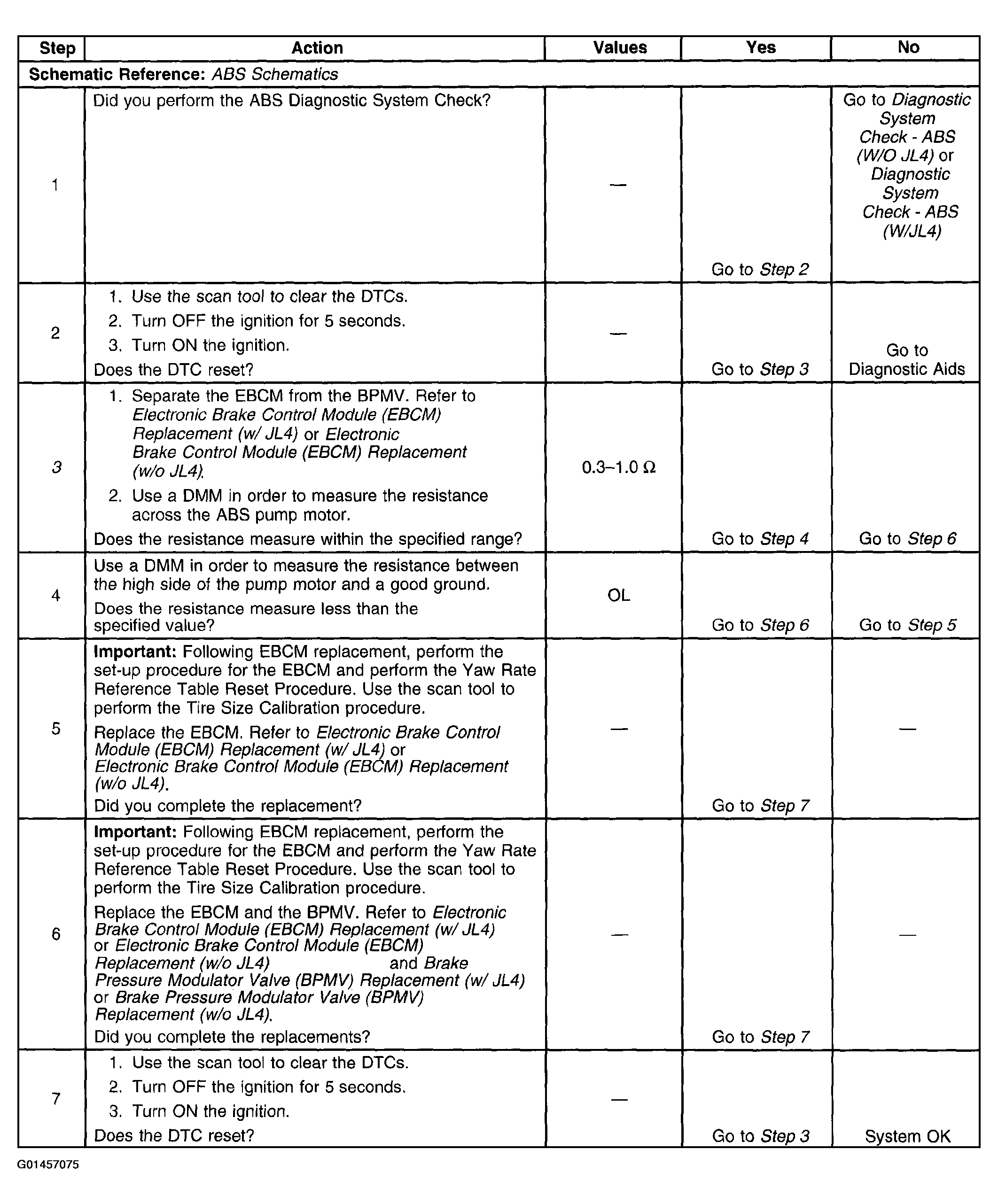

Fig 1: DTC C0201
G01457075Courtesy of GENERAL MOTORS CORP.
