Test Description

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

  1. 4.  This step tests for high resistance in the battery positive voltage circuit by verifying that an excessive voltage drop does not occur in the circuit.

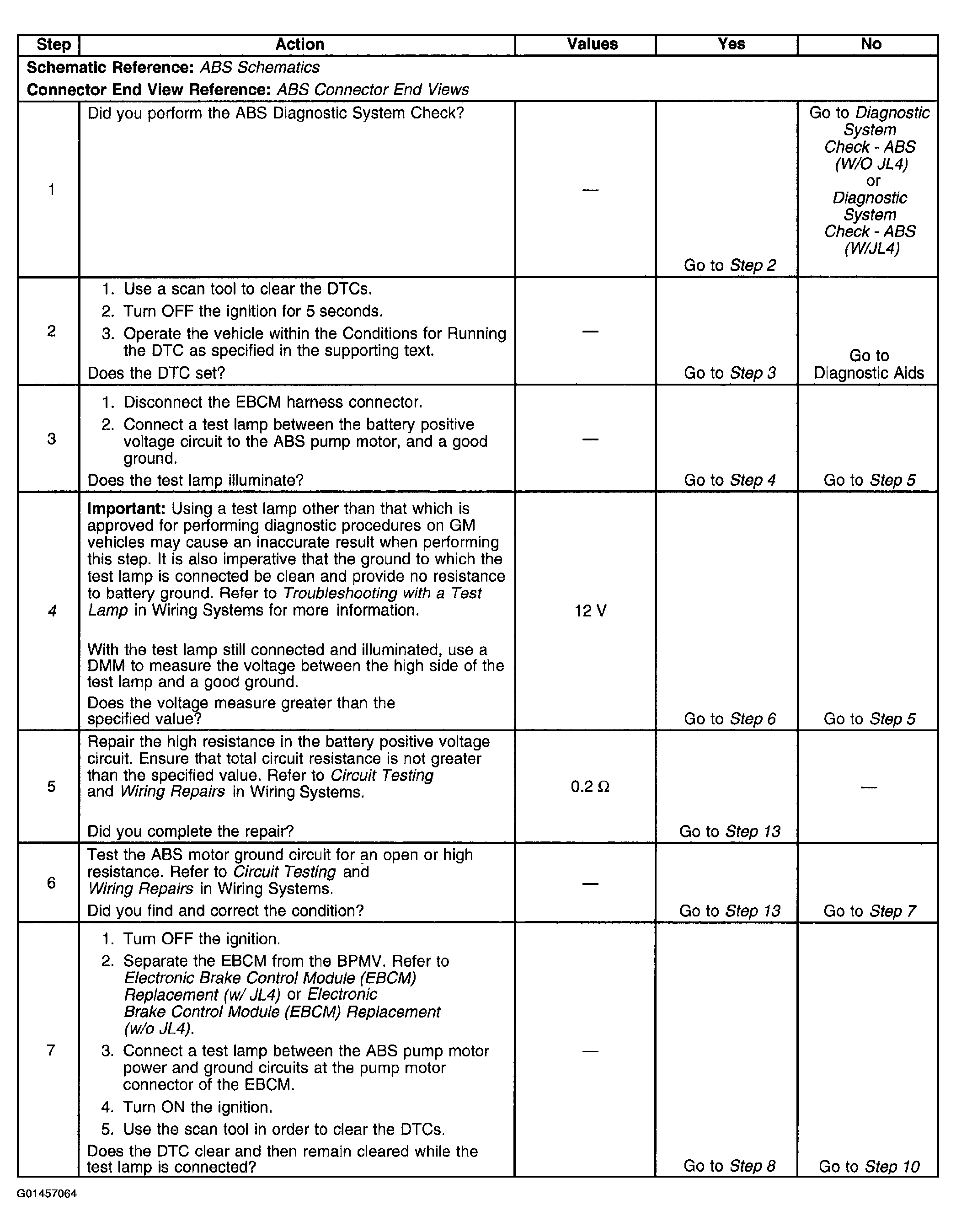

Fig 1: DTC C0110 (1 Of 2)
G01457064Courtesy of GENERAL MOTORS CORP.

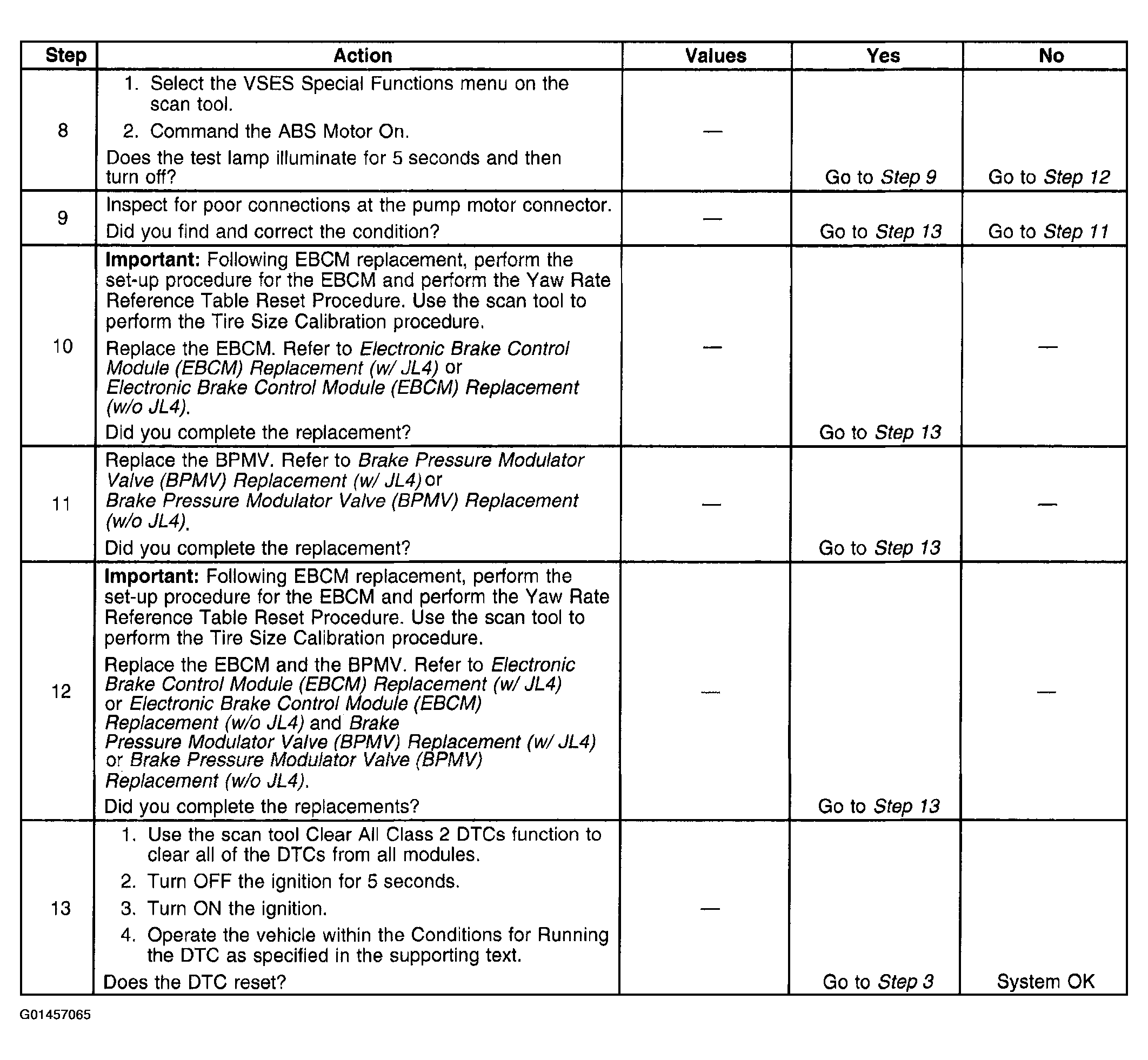

Fig 2: DTC C0110 (2 Of 2)
G01457065Courtesy of GENERAL MOTORS CORP.
