Test Description

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

  1. 3.  This step tests if the IPC is able to turn OFF the ABS indicator.

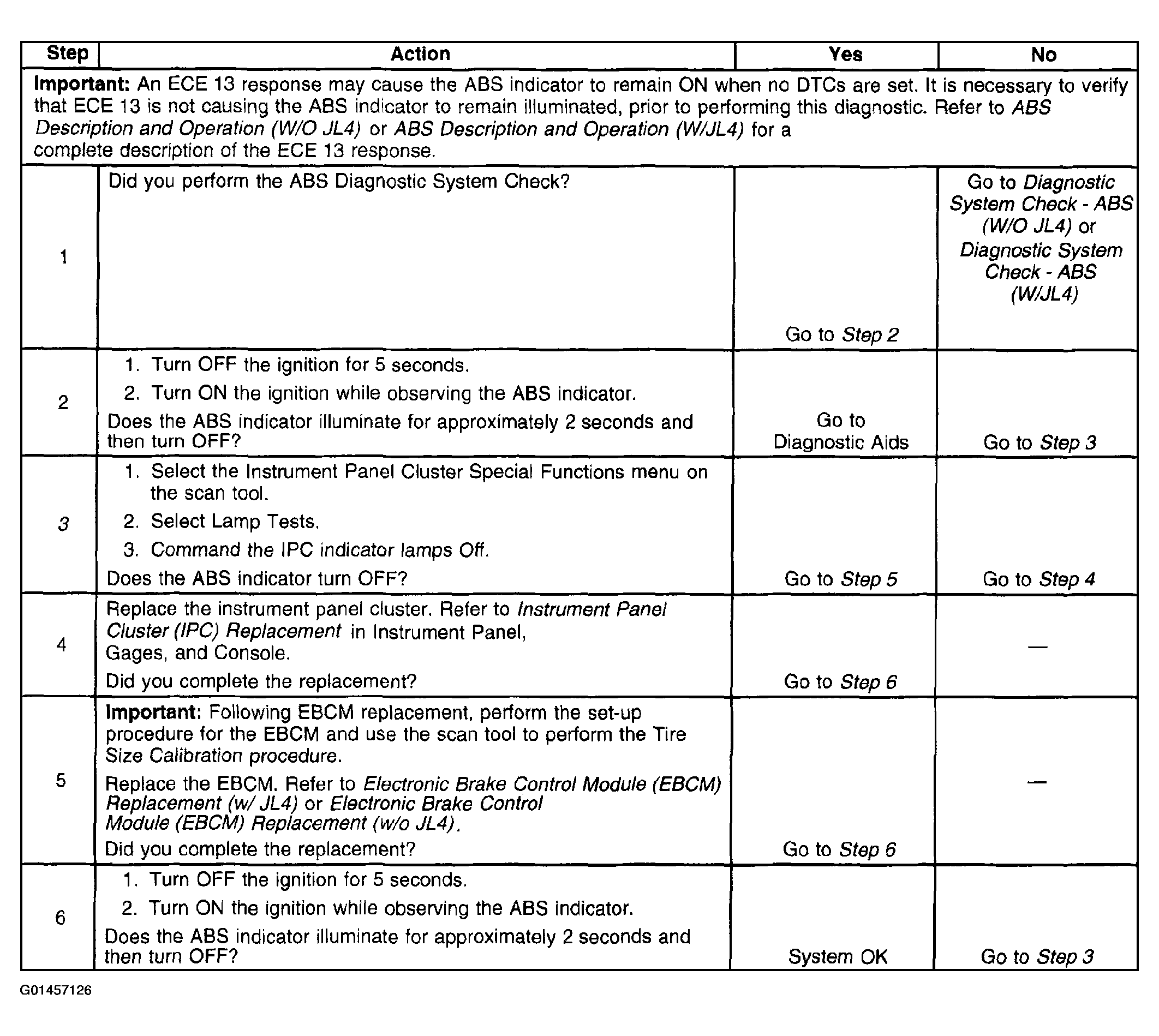

Fig 1: ABS Indicator Always On
G01457126Courtesy of GENERAL MOTORS CORP.
