Disassembly Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Important:  Replace the housing if the stub shaft housing, seal or bearing are damaged.

  1. Remove the stub shaft housing bolts (4) from the stub shaft housing (3).
  2. Remove the stub shaft housing (3) from the steering gear.
  3. Remove the stub shaft housing O-rings (1) (2) from the steering gear.

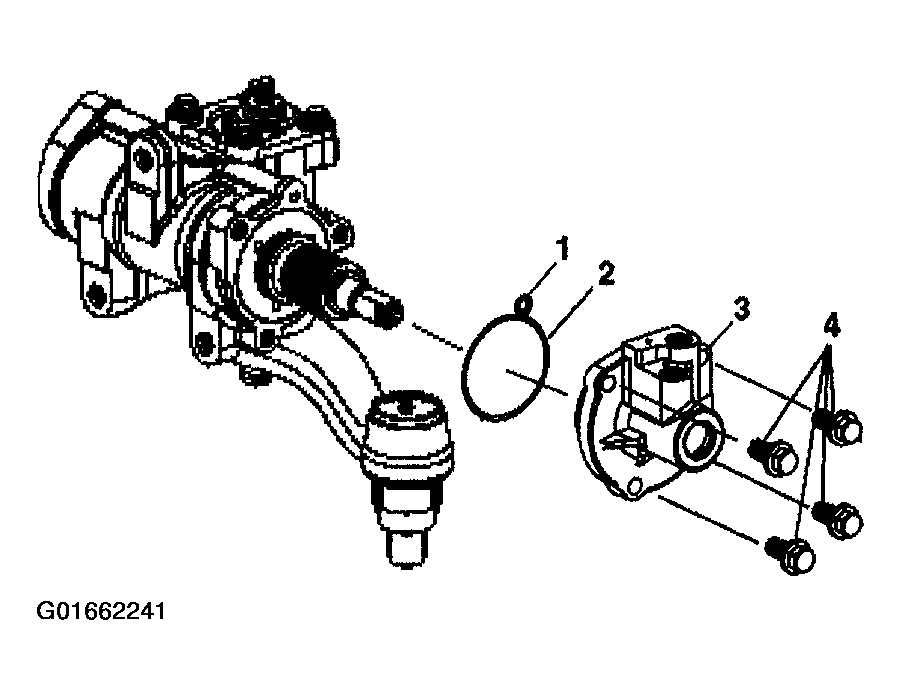

    Fig 1: Removing Stub Shaft Housing (680 Gear)
    G01662241Courtesy of GENERAL MOTORS CORP.
