Disassembly Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the adjuster plug lock nut (5) from the adjuster plug (4).
  2. Remove the adjuster plug (4) from the gear assembly (1).
  3. Remove the adjuster spring (3) and the rack bearing (2).

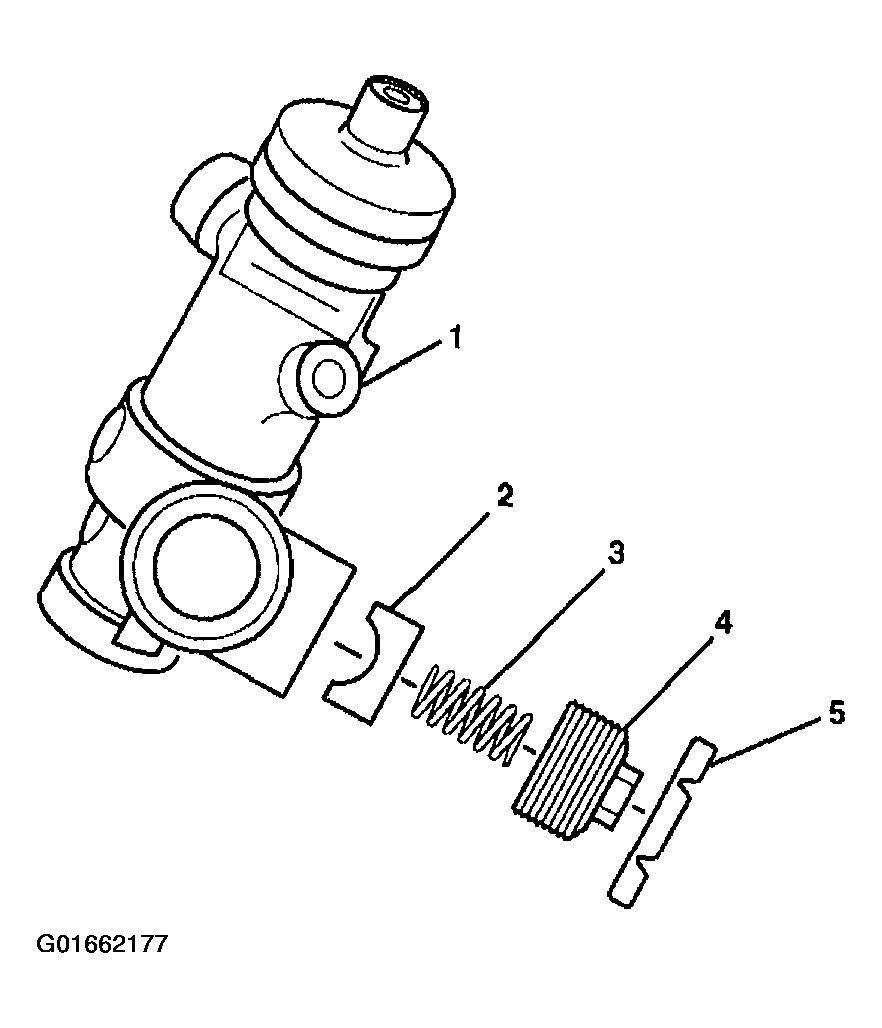

    Fig 1: Removing Adjuster Plug & Adjuster Spring
    G01662177Courtesy of GENERAL MOTORS CORP.
  4. Remove the spool shaft boot (1) from the rack and pinion gear assembly.
  5. Remove the retaining ring (2) from the valve bore of the rack and pinion gear assembly.
  6. Remove the dust cover (4) from the bottom of the rack and pinion gear assembly.
  7. Remove the hex lock nut (3) from the lower end of the pinion and valve assembly while holding the stub shaft with a 14 mm crowfoot wrench.

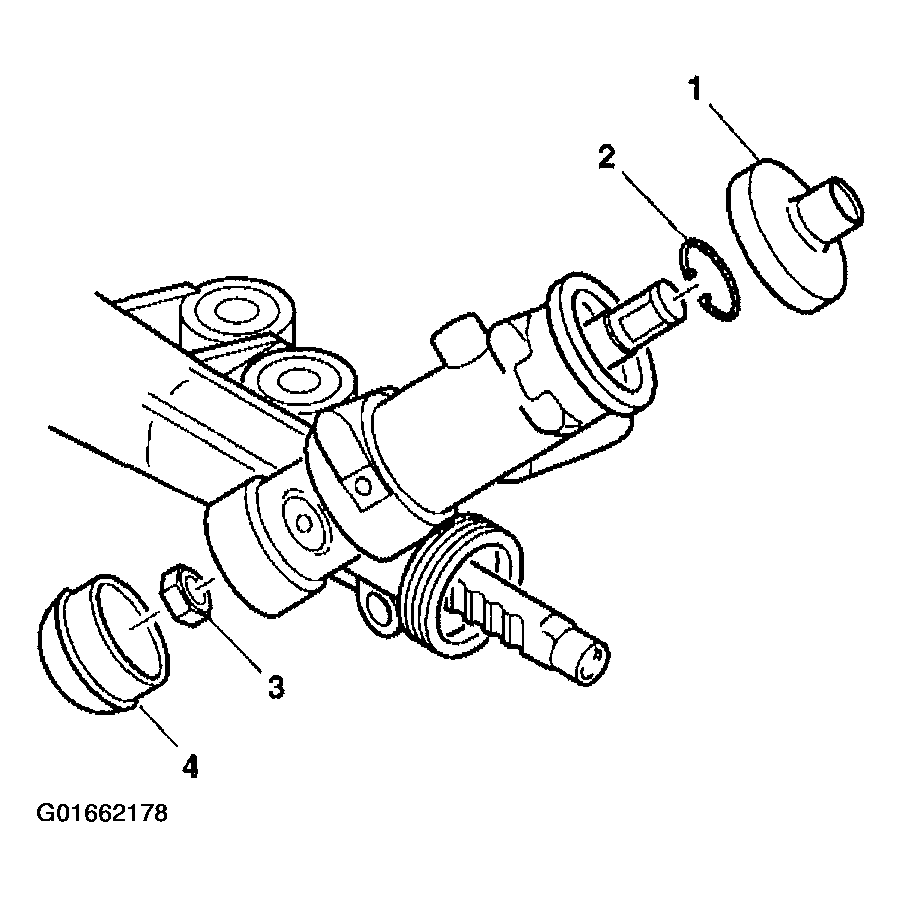

    Fig 2: Removing Spool Shaft Boot & Dust Cover
    G01662178Courtesy of GENERAL MOTORS CORP.

    Important:  When performing the following procedure, do not remove pinion and valve assembly from the rack and pinion gear assembly (5). Press the pinion and valve assembly only far enough to allow removal of the stub shaft bearing annulus (3) and the stub shaft seal (2).

  8. Using an arbor press (1), press on the threaded end of the pinion until removal of the following items is possible:
    1. 8.1.  The stub shaft (4)
    2. 8.2.  The stub shaft seal (2)
    3. 8.3.  The stub shaft bearing annulus assembly (3)

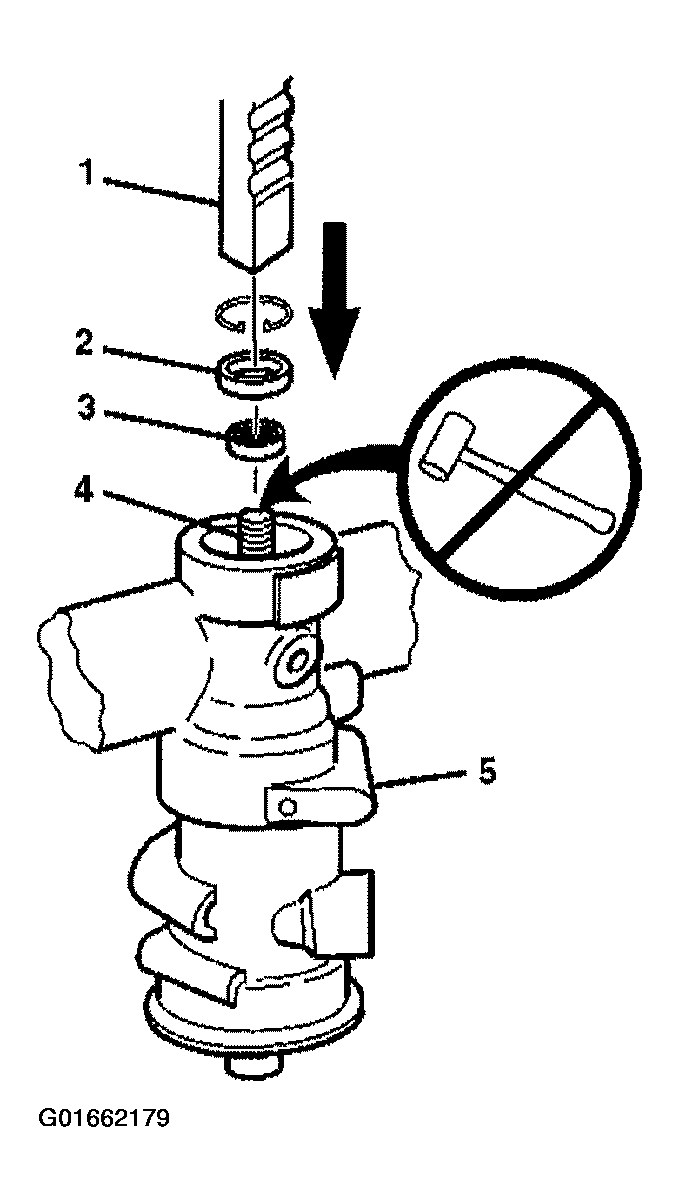

    Fig 3: Removing Stub Shaft, Seal & Bearing Annulus Assembly
    G01662179Courtesy of GENERAL MOTORS CORP.
