Assembly Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Screw the pitman shaft (4) to the side cover (8) until it fully seats to the side cover (8).
  2. Install the adjuster lock nut (1). Do not tighten the adjuster lock nut (1) until the pitman shaft adjustment is completed.
  3. Install the pitman shaft assembly (4) and the side cover (8) to the steering gear housing (7).
    CAUTION: Refer to FASTENER NOTICE .
  4. Install the bolts (2).

    Tighten

    Tighten the bolts (2) to 60 N.m (45 lb ft).

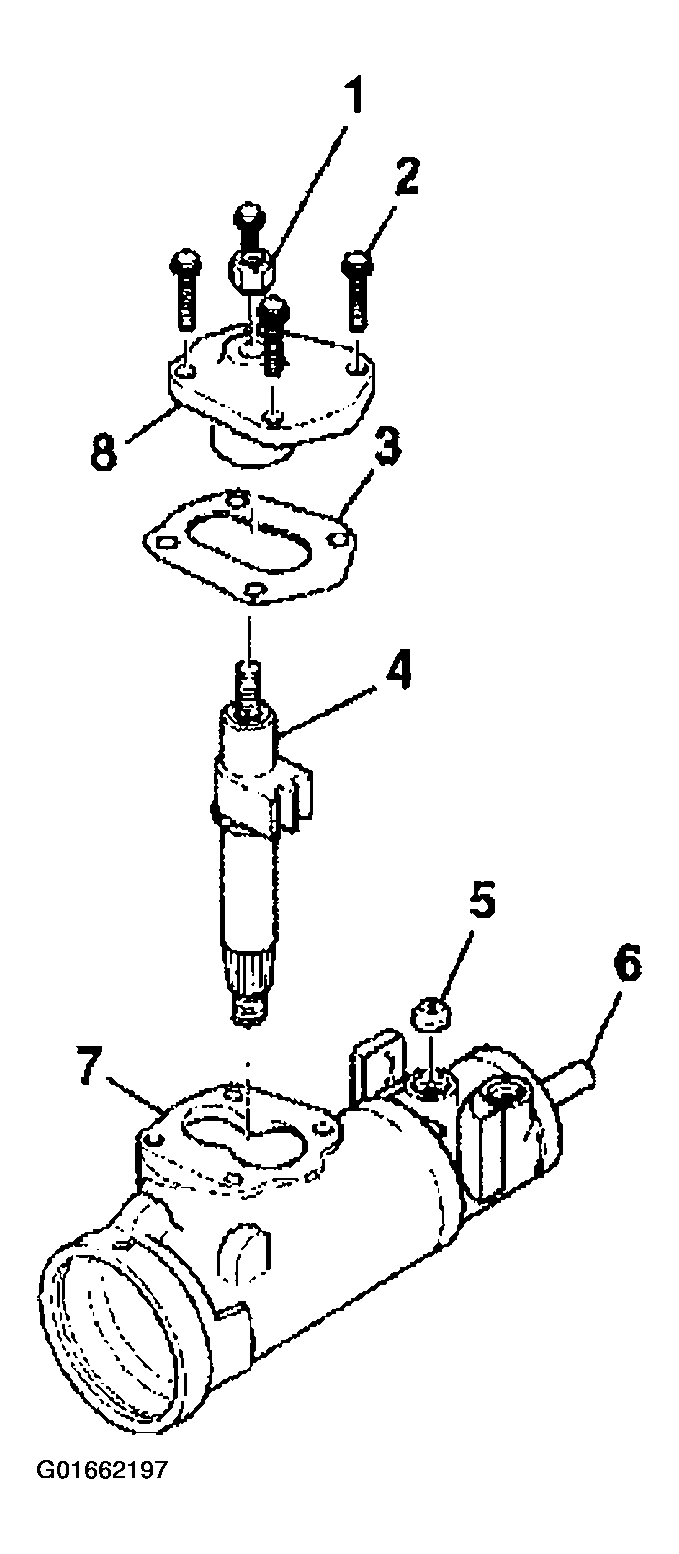

    Fig 1: Installing Pitman Shaft
    G01662197Courtesy of GENERAL MOTORS CORP.
  5. Install the lock washer (2).
  6. Install the nut (3).
  7. Refer to Pitman Shaft Over-Center Preload Adjustment - Off Vehicle  to adjust the pitman shaft.
    Fig 2: Installing Steering Gear Nut & Lock Washer
    G01662198Courtesy of GENERAL MOTORS CORP.
