Disassembly Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the nut (3).
  2. Remove the lock washer (2).
  3. Clean the exposed end of the pitman shaft.
  4. Clean the steering gear housing (1).
  5. Use a wire brush to clean the pitman shaft splines.

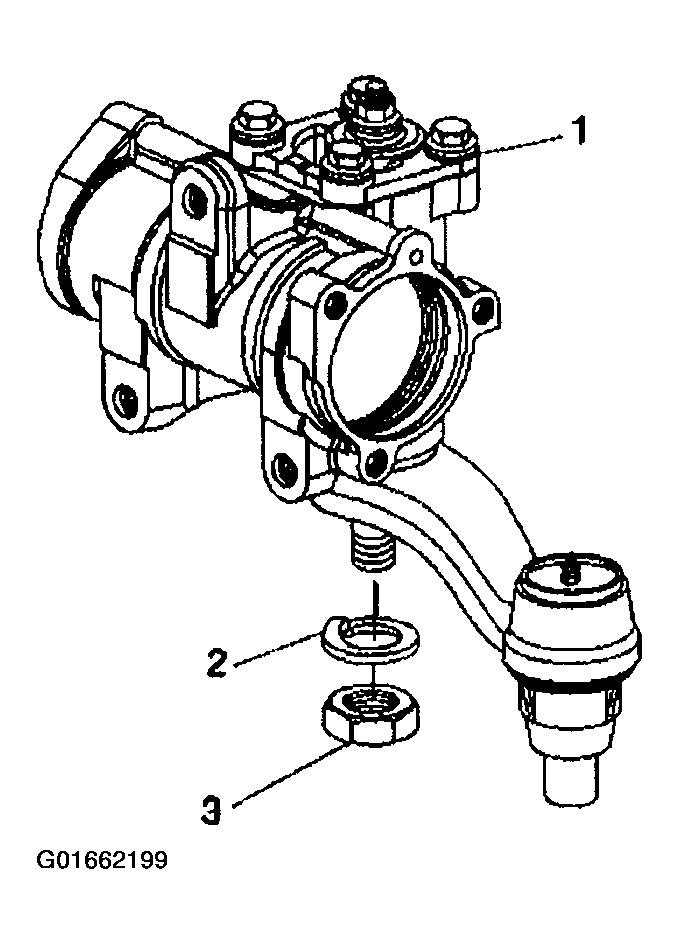

    Fig 1: Removing Steering Gear Housing Nut & Lock Washer
    G01662199Courtesy of GENERAL MOTORS CORP.

    Important:  The pitman shaft will not clear the housing if it is not centered.

  6. To center the stub shaft:
    1. 6.1.  Rotate the stub shaft (1) with a wrench from stop to stop.
    2. 6.2.  Count the number of turns.
    3. 6.3.  Rotate the stub shaft back 1/2 of the total amount of turns.

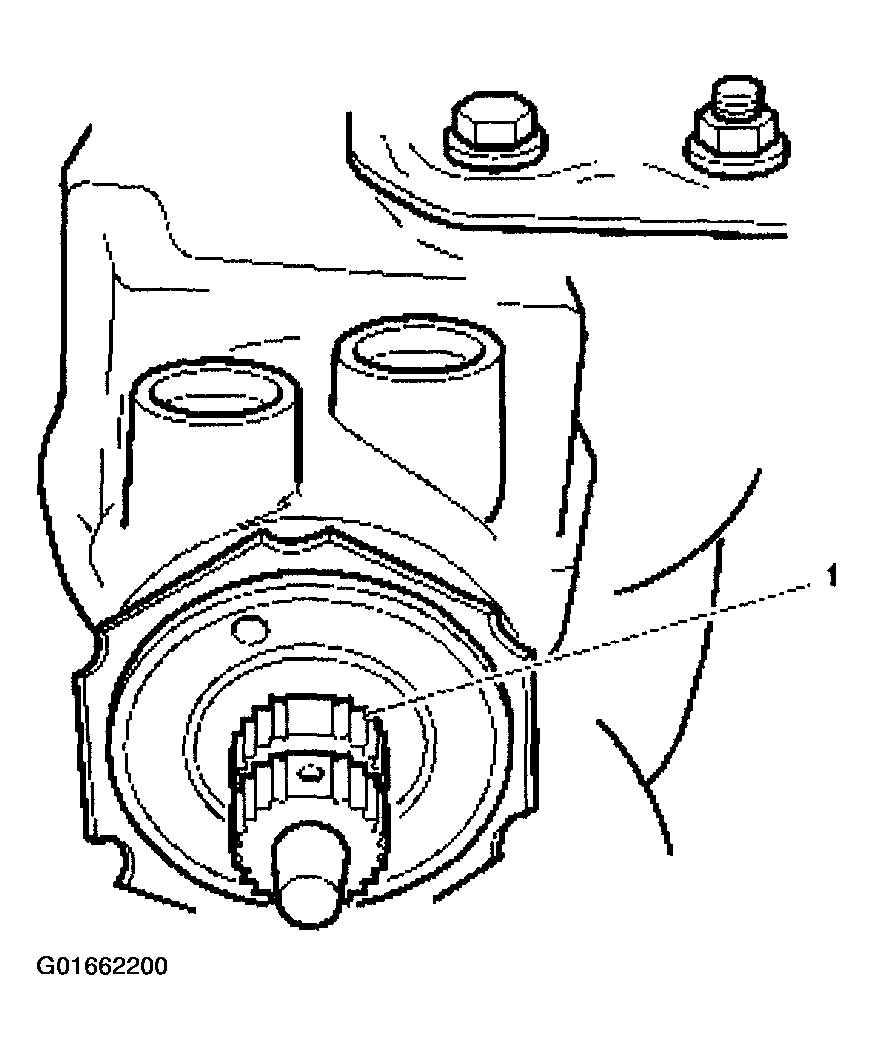

    Fig 2: Locating Stub Shaft
    G01662200Courtesy of GENERAL MOTORS CORP.

    Important:  When removing the pitman shaft assembly, the pitman arm and its components may fall from the steering gear housing. Support the pitman arm and its components while removing the pitman shaft assembly.

  7. Remove the pitman shaft cover bolts (1) from the pitman shaft and cover assembly (3).

    Remove the lash adjuster nut (2) from the pitman shaft and cover assembly (3).

  8. Remove the pitman shaft and cover assembly (3).
  9. Remove the pitman shaft cover O-ring (4) from the steering gear housing assembly.

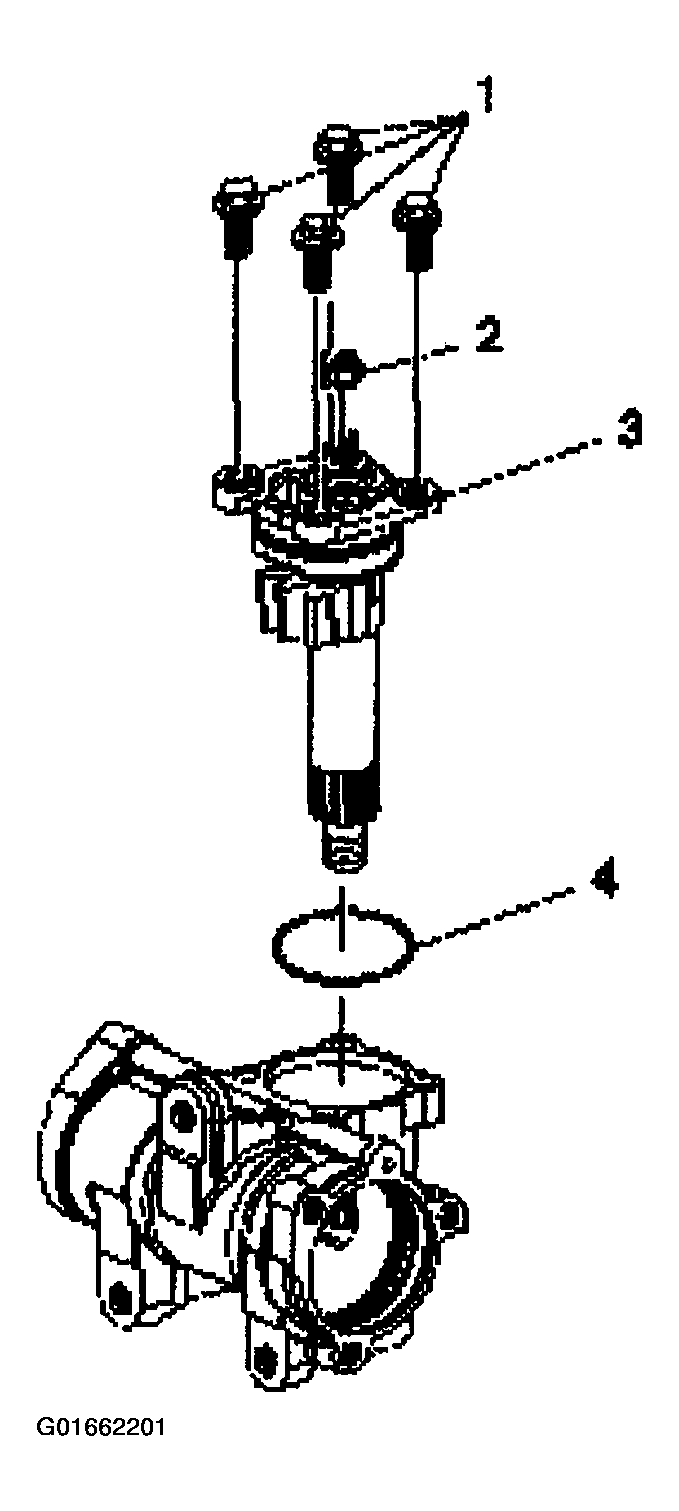

    Fig 3: Removing Pitman Shaft & Cover Assembly
    G01662201Courtesy of GENERAL MOTORS CORP.
