Assembly Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the new pitman shaft cover O-ring (4).
  2. Install the pitman shaft and cover assembly (3) onto the steering gear housing assembly.
  3. Install the lash adjuster nut (2) onto the pitman shaft and cover assembly (3)
    CAUTION: Refer to FASTENER NOTICE .
  4. Install the pitman shaft cover bolts (1) onto the pitman shaft and cover assembly (3).

    Tighten

    Tighten the pitman shaft cover bolts to 62 N.m (46 lb ft).

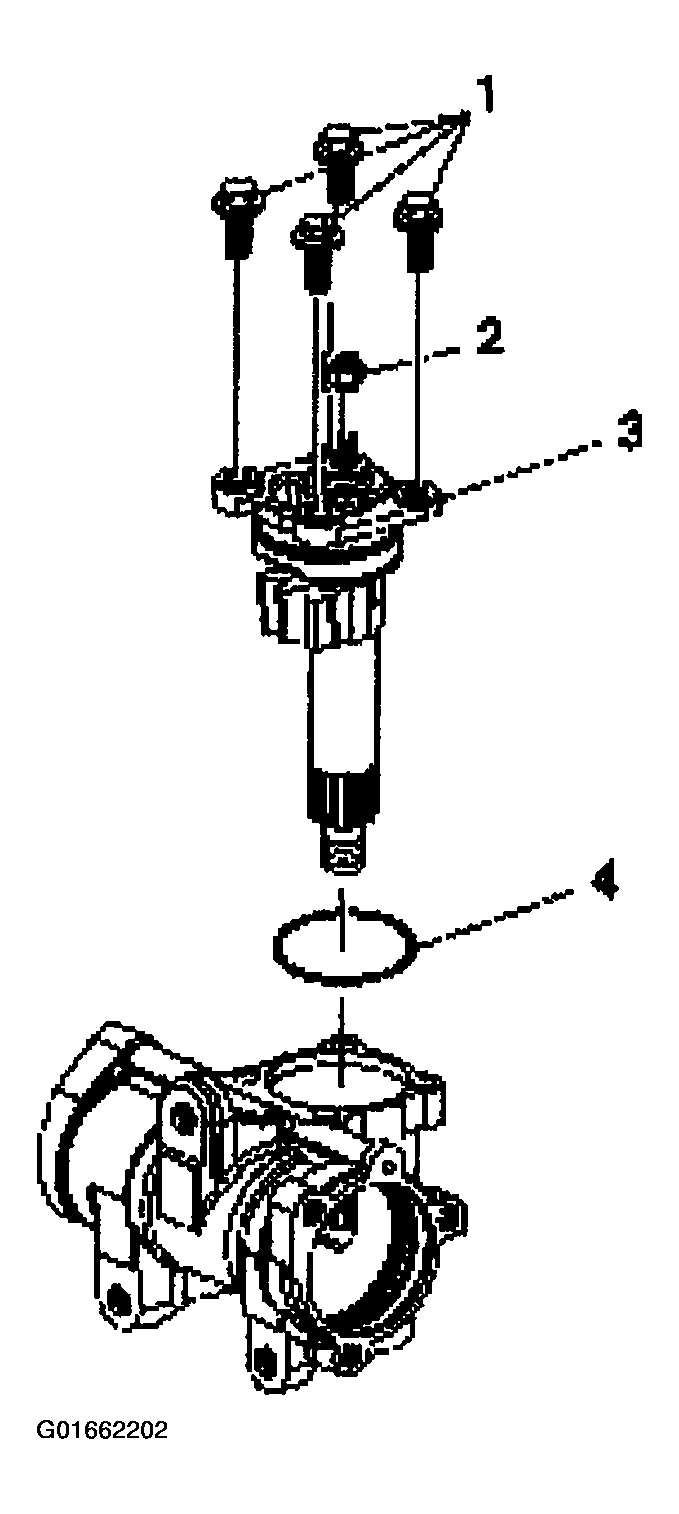

    Fig 1: Installing Pitman Shaft & Cover Assembly
    G01662202Courtesy of GENERAL MOTORS CORP.
  5. Install the lock washer (2).
  6. Install the nut (3).
  7. If necessary adjust the pitman shaft. Refer to Pitman Shaft Over-Center Preload Adjustment - Off Vehicle .

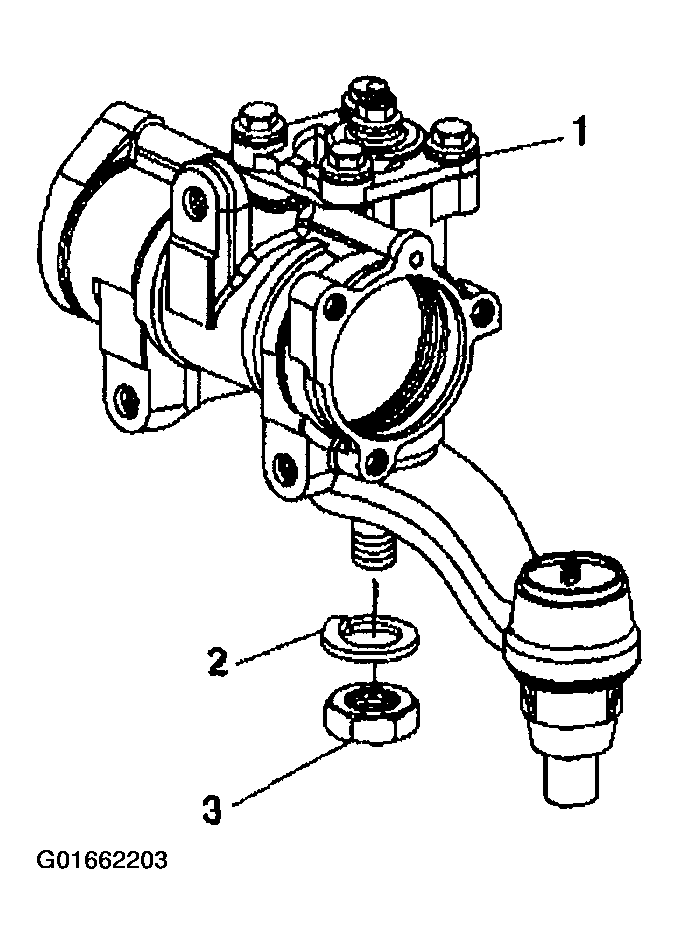

    Fig 2: Installing Steering Gear Housing Nut & Lock Washer
    G01662203Courtesy of GENERAL MOTORS CORP.
