Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the power steering pulley. Refer to Power Steering Pulley Replacement .
  2. Place a drain pan under the pump.
  3. Remove the hose guide bracket from the front of the pump.
  4. For vehicles with variable effort steering, disconnect the electrical connector.
  5. Remove the hoses from the pump.
  6. Remove the lower intermediate shaft from the steering gear. Refer to INTERMEDIATE STEERING SHAFT REPLACEMENT - LOWER .
  7. Remove the bolt retaining the rear bracket to the engine.
  8. Remove the bolts from the front of the pump.
  9. Remove the pump from the vehicle.

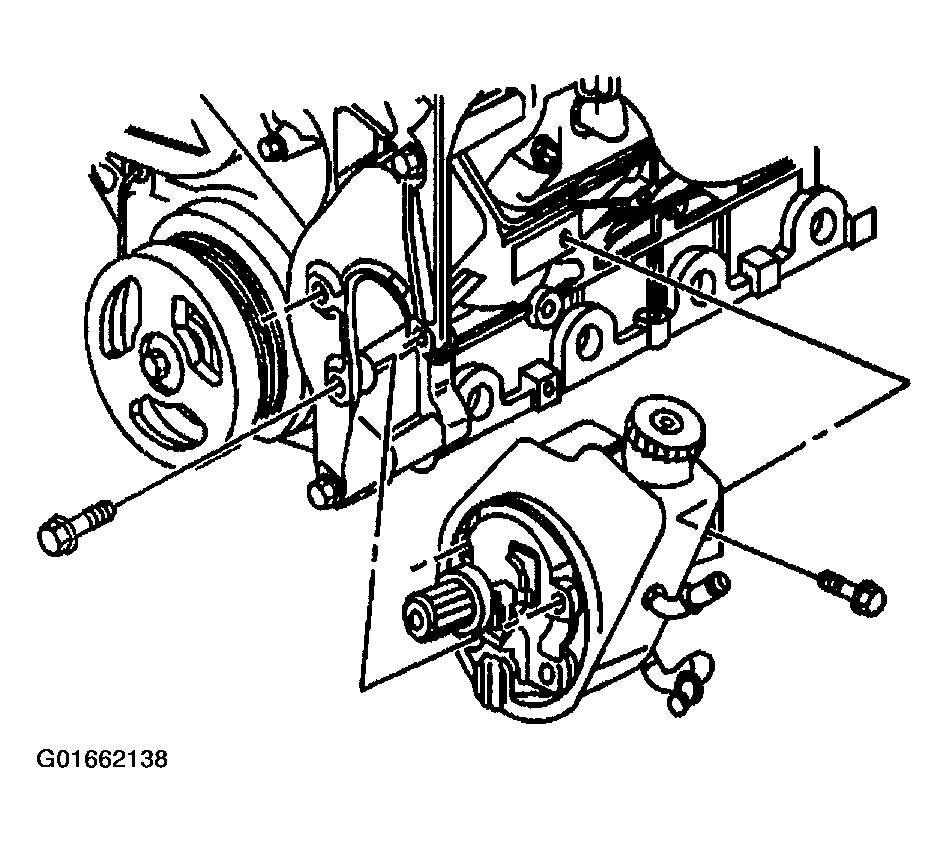

    Fig 1: Removing Power Steering Pump
    G01662138Courtesy of GENERAL MOTORS CORP.
  10. Remove the bracket (3) from the rear of the pump (1).

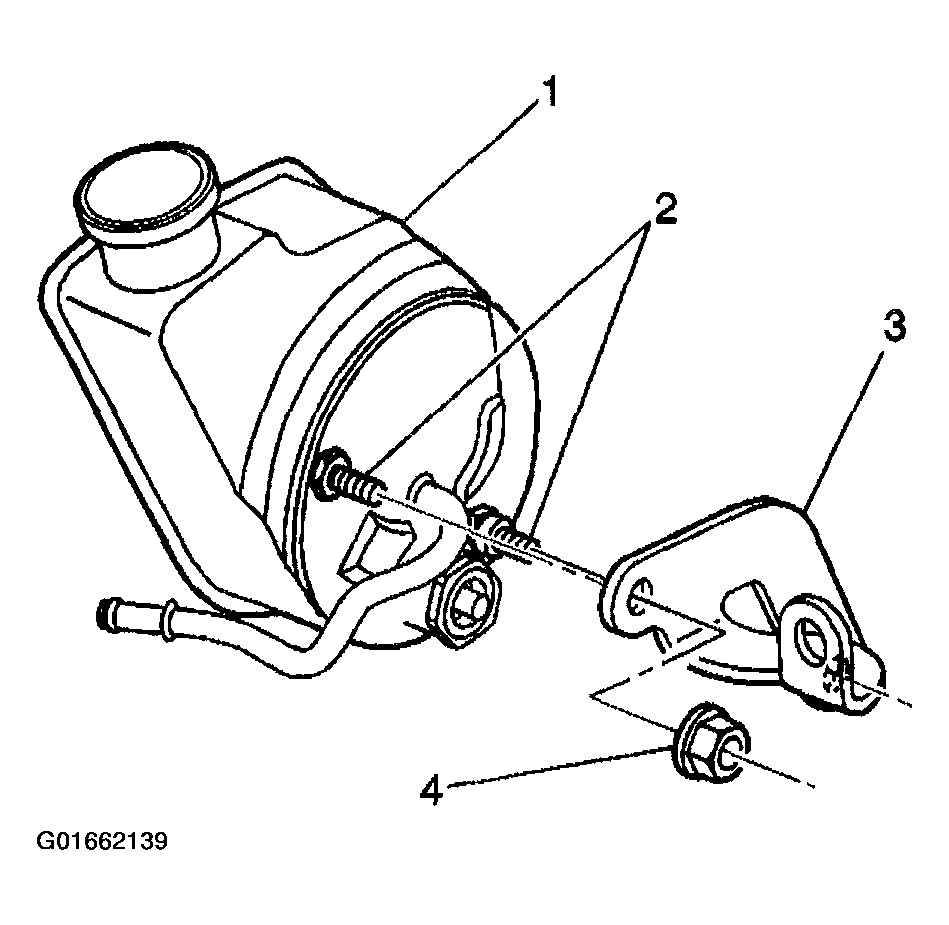

    Fig 2: Removing Power Steering Pump Rear Bracket
    G01662139Courtesy of GENERAL MOTORS CORP.
