Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to FASTENER NOTICE .
  1. Install the bracket (3) to the rear of the pump (1).

    Tighten

    Tighten the rear bracket retaining nuts to 50 N.m (37 lb ft).

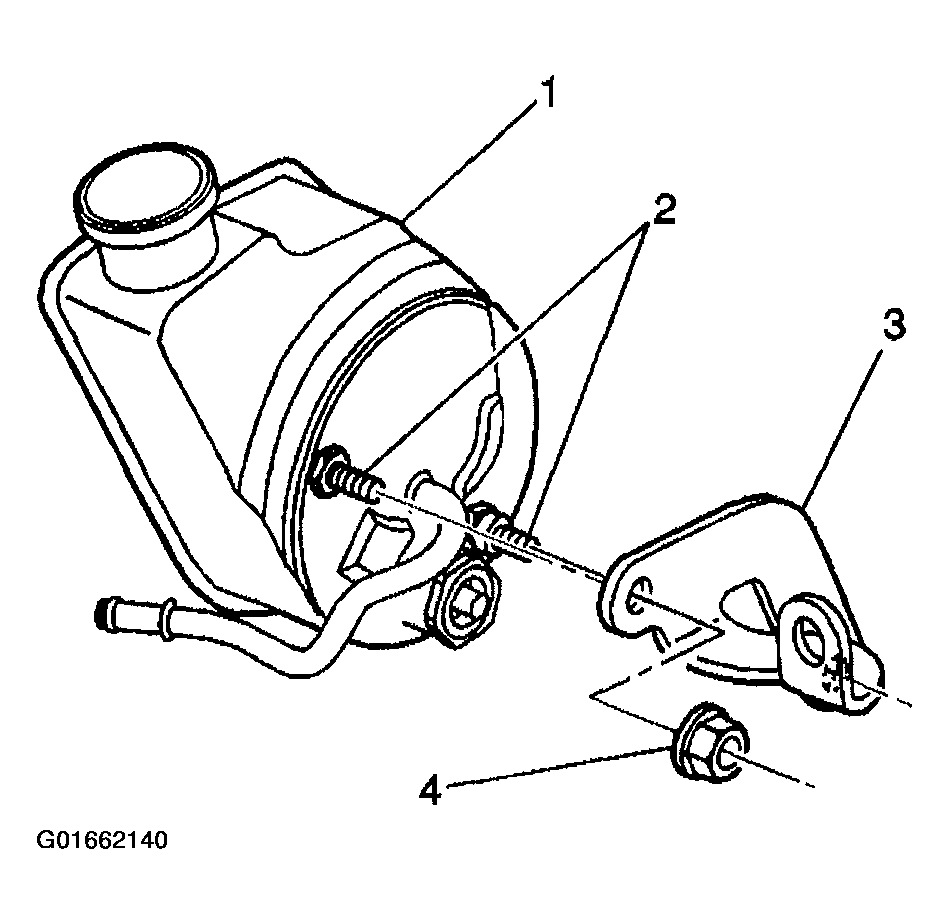

    Fig 1: Installing Power Steering Pump Rear Bracket
    G01662140Courtesy of GENERAL MOTORS CORP.
  2. Install the pump.
  3. Install the hose guide bracket bolt to the pump.
  4. Install the bolt retaining the rear bracket to the engine.
  5. Install the bolts to the front of the pump.

    Tighten

    Tighten the bolts to 50 N.m (37 lb ft).

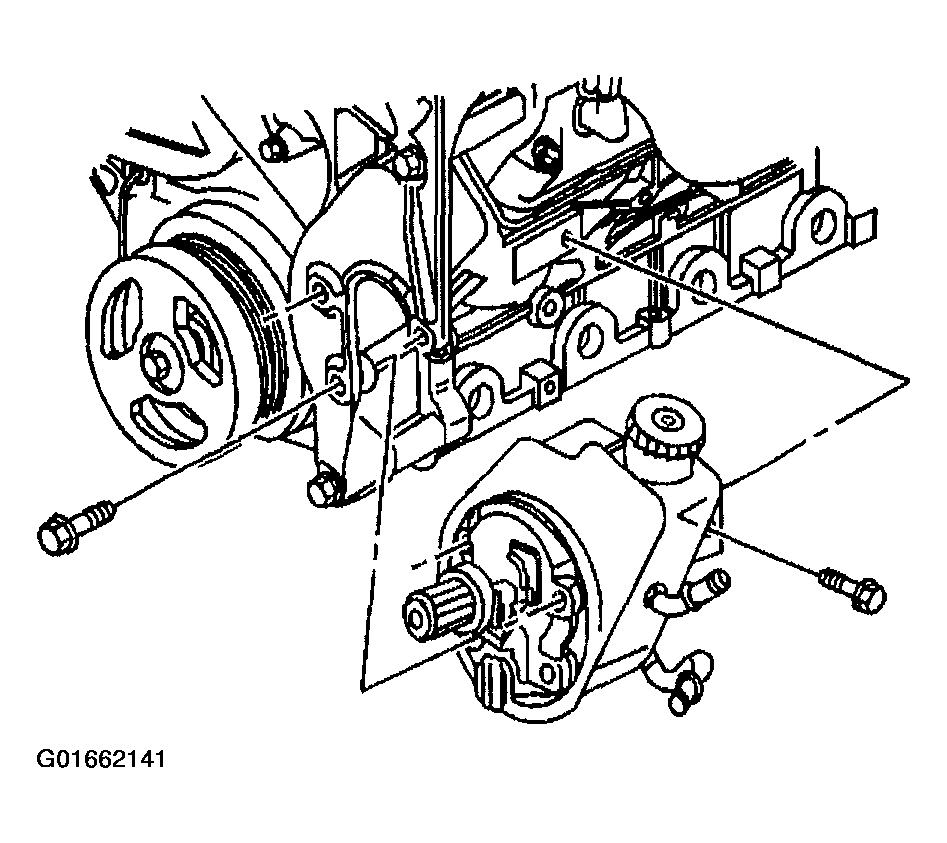

    6. Fig 2: Installing Power Steering Pump
    G01662141Courtesy of GENERAL MOTORS CORP.
  6. For vehicles with variable effort steering, connect the electrical connector.
  7. Install the hoses to the pump.

    Tighten

    Tighten the nut to 28 N.m (20 lb ft).

  8. Install the intermediate shaft. Refer to INTERMEDIATE STEERING SHAFT REPLACEMENT - LOWER .
  9. Install the power steering pulley. Refer to Power Steering Pulley Replacement .
  10. Fill and bleed the power steering system. Refer to Bleeding the Power Steering System .
