Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front grille. Refer to GRILLE REPLACEMENT (CADILLAC) or GRILLE REPLACEMENT (AVALANCHE) .
    CAUTION: Refer to POWER STEERING HOSE DISCONNECTED NOTICE .
  2. Remove the clamp retaining the power steering outlet hose (3) from the power steering gear (4).
  3. Remove the clamp retaining the power steering inlet hose from the power steering pump (5).
  4. Remove the bolts (2) retaining the power steering cooler from the radiator support.
  5. Remove the power steering cooler from the vehicle.

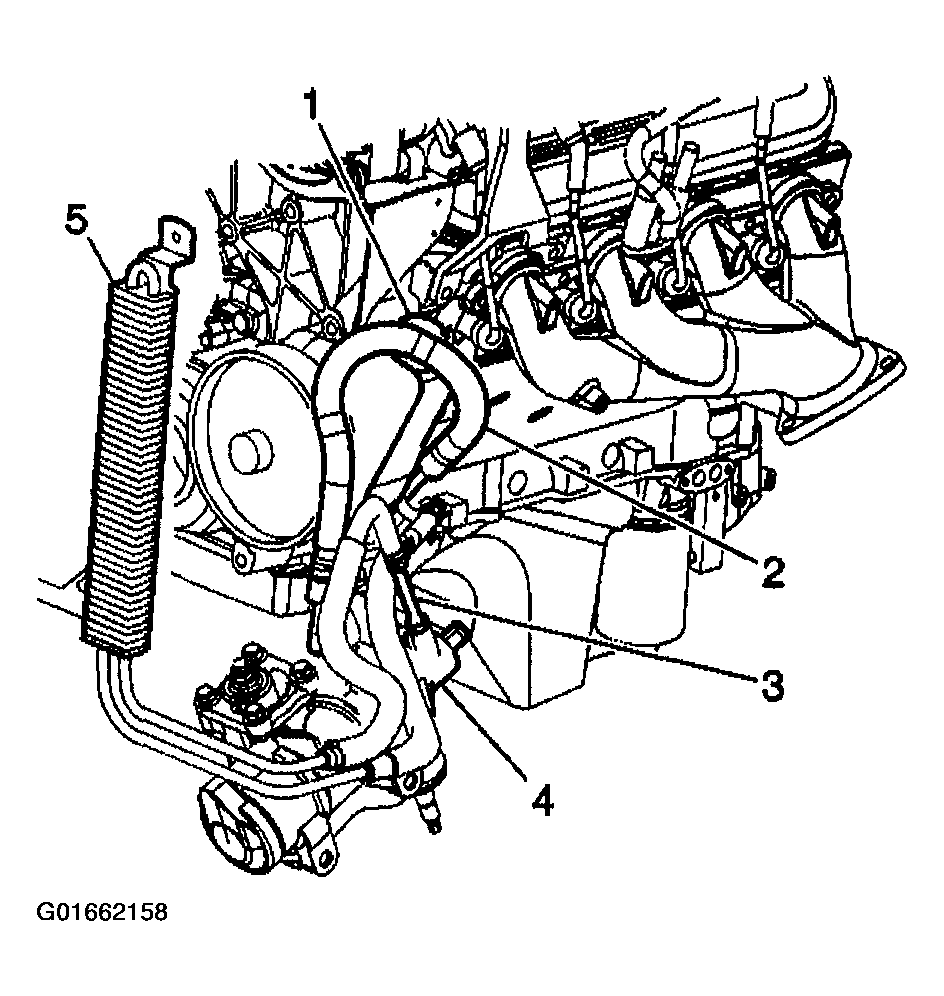

    Fig 1: Removing Power Steering Cooler Pipe/Hose
    G01662158Courtesy of GENERAL MOTORS CORP.
