Assembly Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the needle bearing (2) to the steering gear housing (1) using the J 6278  .

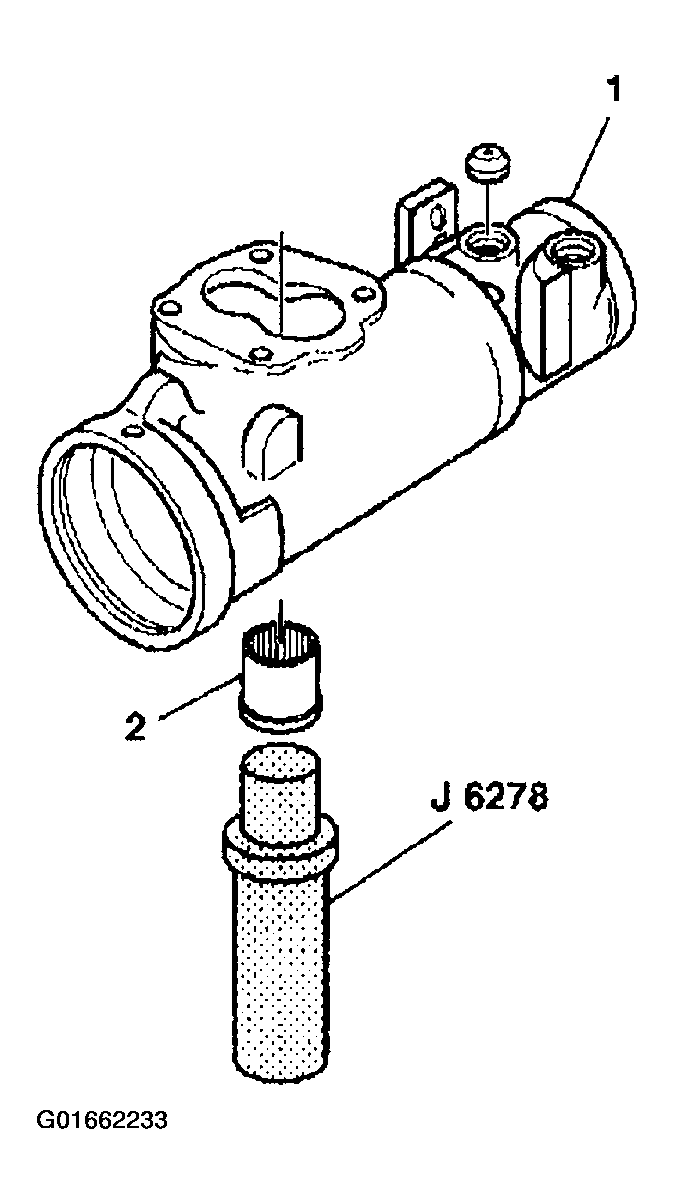

    Fig 1: Installing Needle Bearing
    G01662233Courtesy of GENERAL MOTORS CORP.
  2. Coat the double lip seal (2) and the washer (3) with grease.
  3. Install the double lip seal (2).
  4. Install the backup washer (3).
    Fig 2: Installing Double Lip Seal & Backup Washer
    G01662234Courtesy of GENERAL MOTORS CORP.
  5. Install the retaining ring using the J 4245  .

    Important:  Do not install the lock washer and nut until complete installation of the pitman arm and it's components have been installed. Do not adjust the pitman shaft until all components have been installed on the steering gear housing.

  6. Install the pitman shaft and the side cover. Refer to Steering Gear Pitman Shaft and Housing Cover Replacement - Off Vehicle (700 Gear)  or Steering Gear Pitman Shaft and Housing Cover Replacement - Off Vehicle (670 Gear)  .
  7. Install the dust seal (1).
    Fig 3: Installing Dust Seal
    G01662235Courtesy of GENERAL MOTORS CORP.
  8. Install the pitman shaft boot (2).
  9. Install the pitman arm (3) to the steering gear (1).
  10. Install the lock washer (4).
  11. Install the nut (5).
  12. Refer to Pitman Shaft Over-Center Preload Adjustment - Off Vehicle  to adjust the pitman shaft.

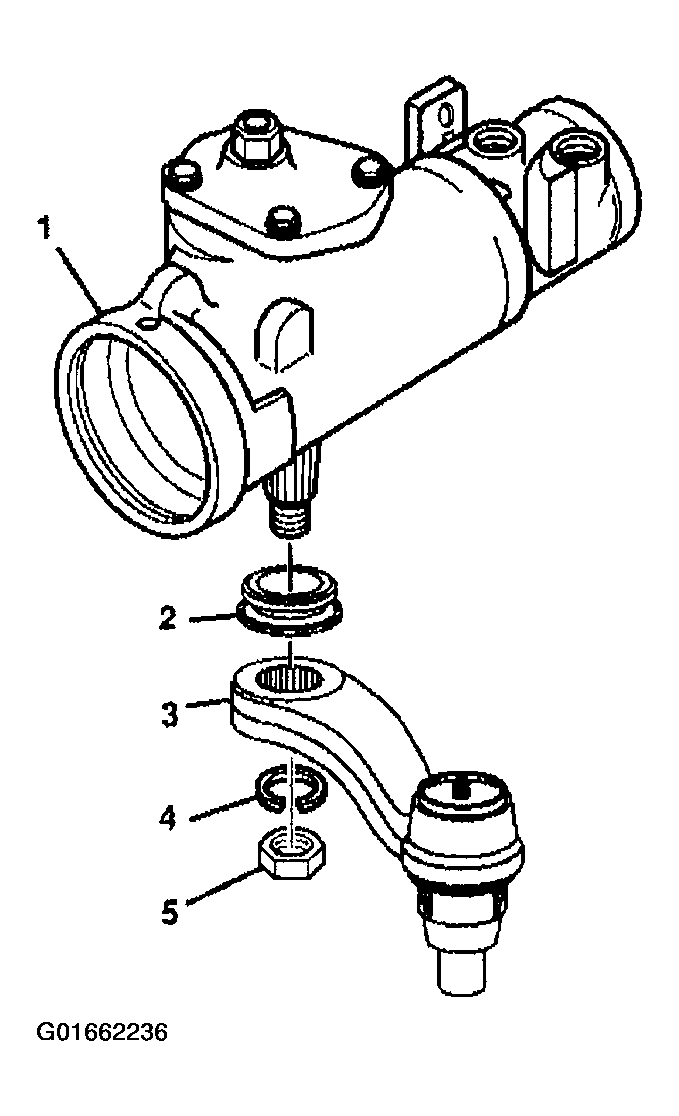

    Fig 4: Installing Lock Washer & Nut
    G01662236Courtesy of GENERAL MOTORS CORP.
