Cylinder Head Removal - Left

WARNING: This page is about a different car, the 2002 GMC Savana and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

Remove the engine coolant temperature sensor, if applicable.

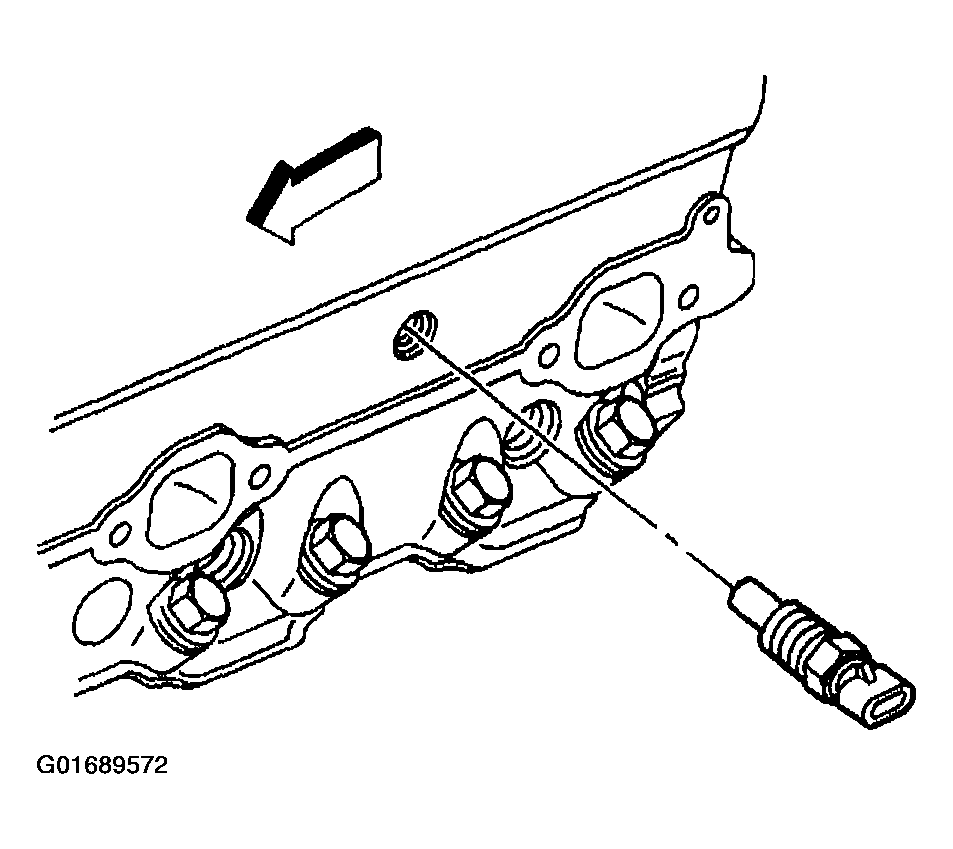

Fig 1: Engine Coolant Temperature Sensor
Courtesy of GENERAL MOTORS CORP.
Remove the engine coolant temperature gage sensor, if applicable.

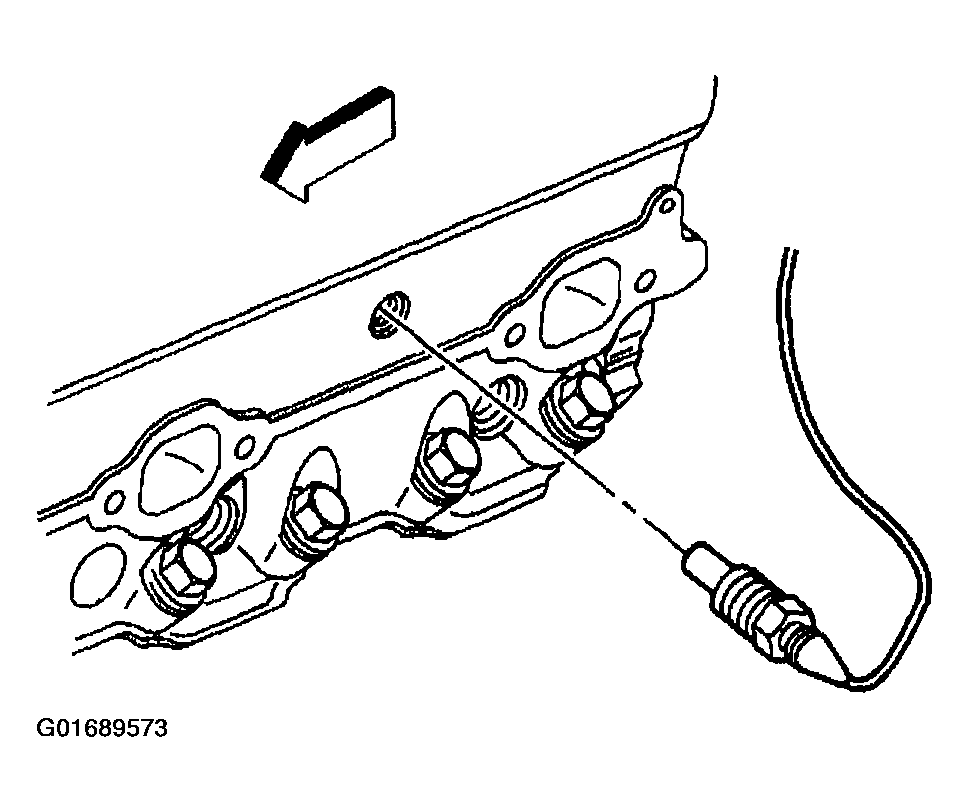

Fig 2: Engine Coolant Temperature Gage Sensor
Courtesy of GENERAL MOTORS CORP.
Remove the spark plugs.

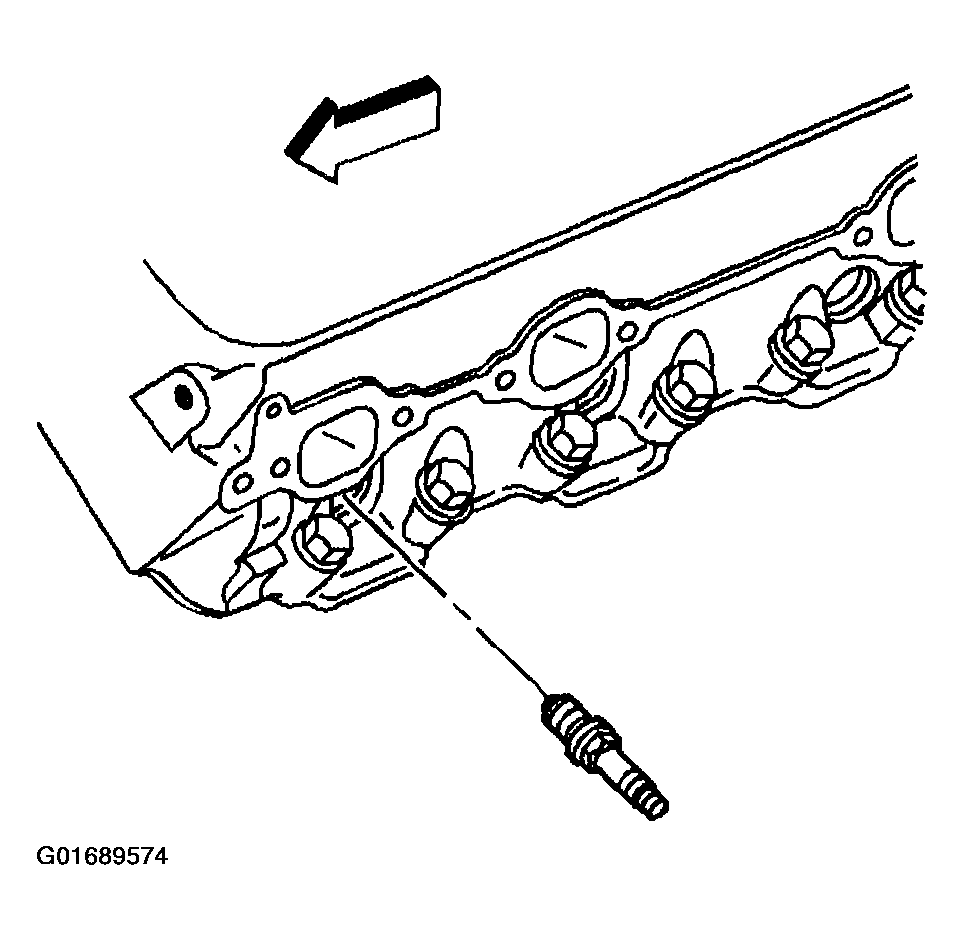

Fig 3: Spark Plugs
Courtesy of GENERAL MOTORS CORP.
Remove the bolts and the spark plug wire support.

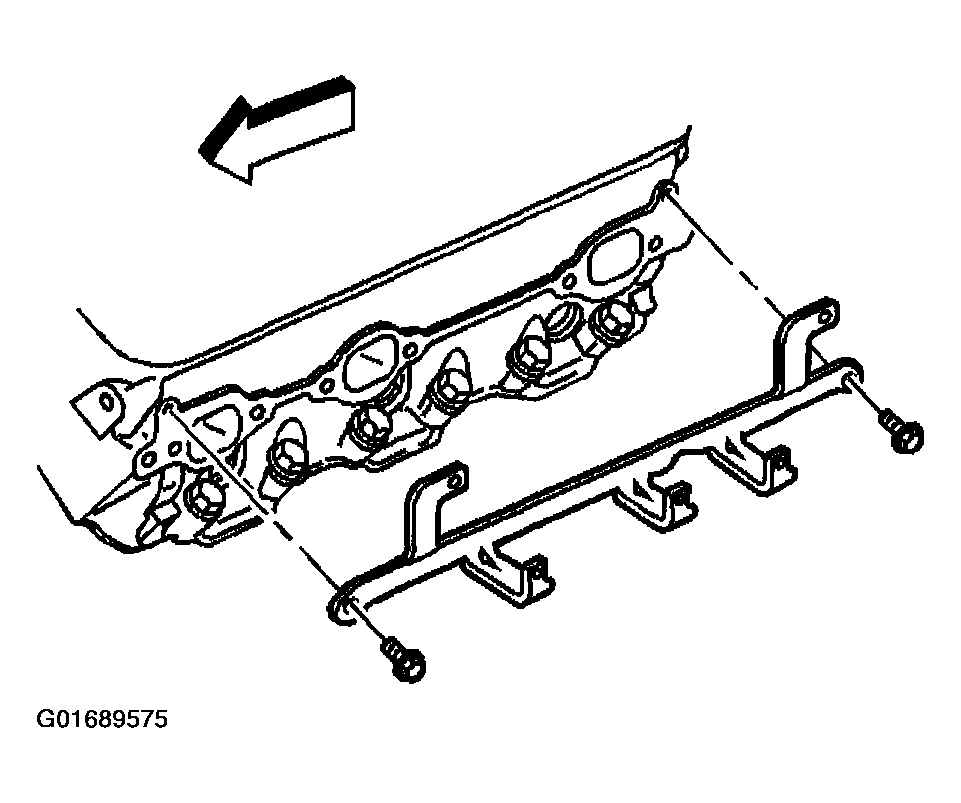

Fig 4: Bolts & Spark Plug Wire Support
Courtesy of GENERAL MOTORS CORP.
Remove the cylinder head bolts.

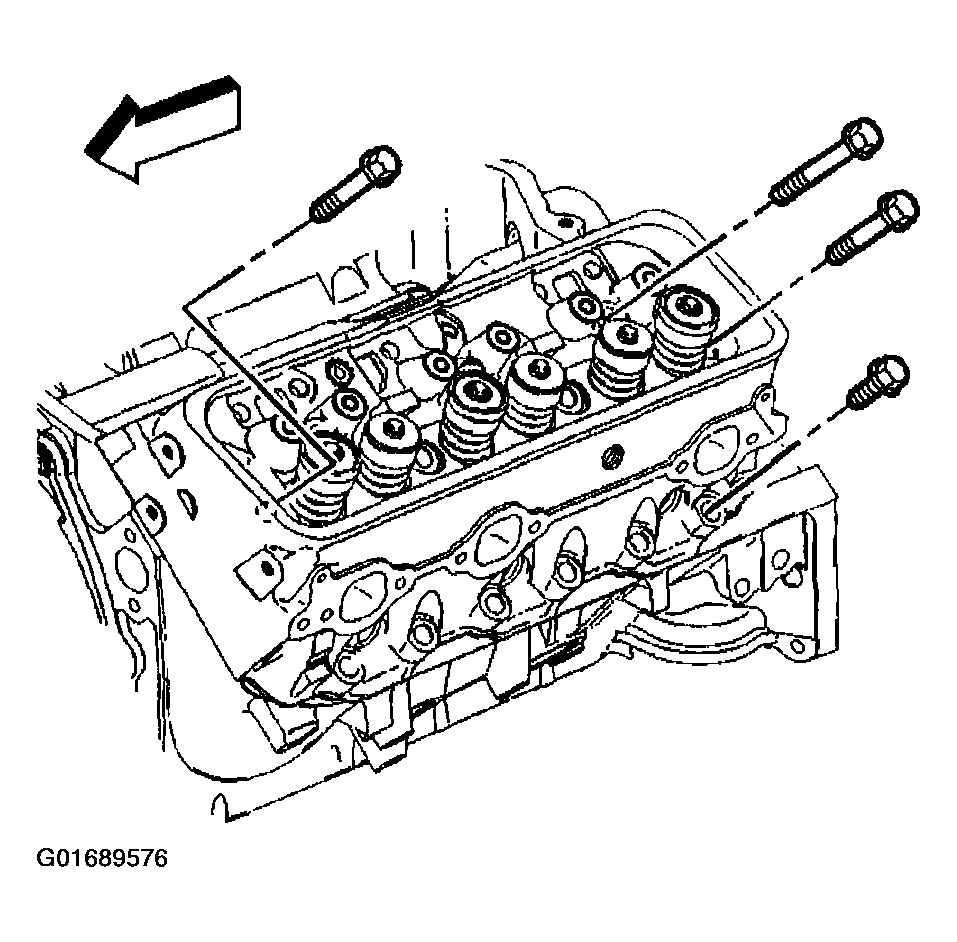

Fig 5: Cylinder Head Bolts
Courtesy of GENERAL MOTORS CORP.

NOTE: After removal, place the cylinder head on two wood blocks to prevent damage.
Remove the cylinder head.

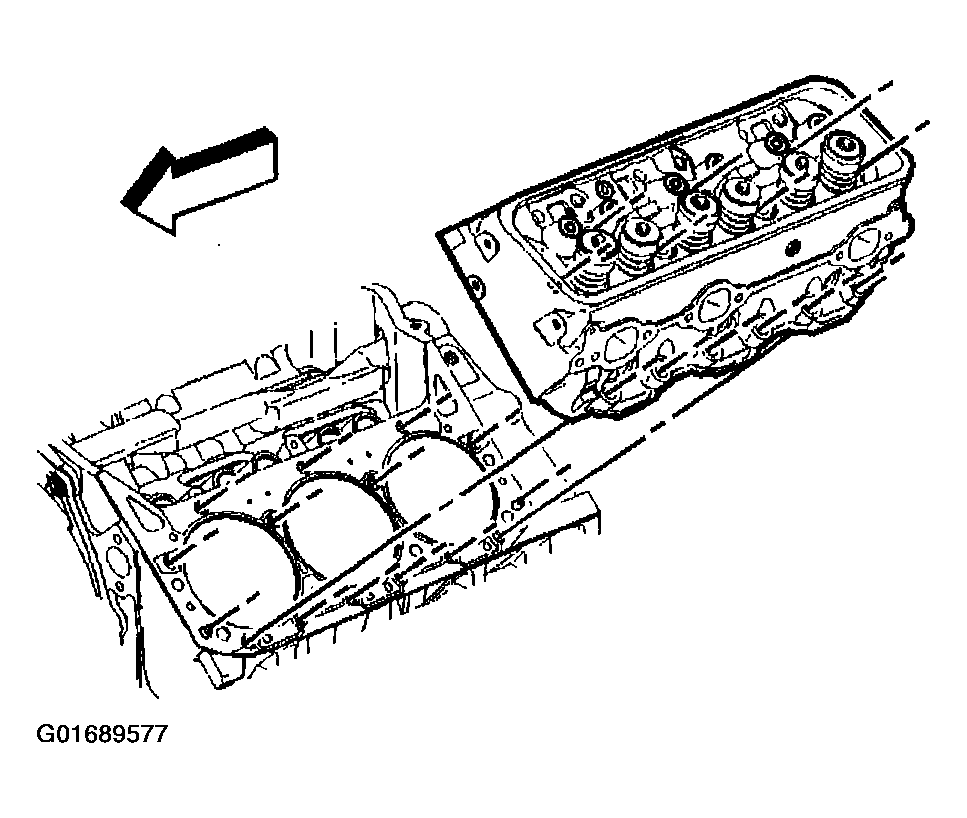

Fig 6: Cylinder Head
Courtesy of GENERAL MOTORS CORP.
Remove and discard the cylinder head gasket.

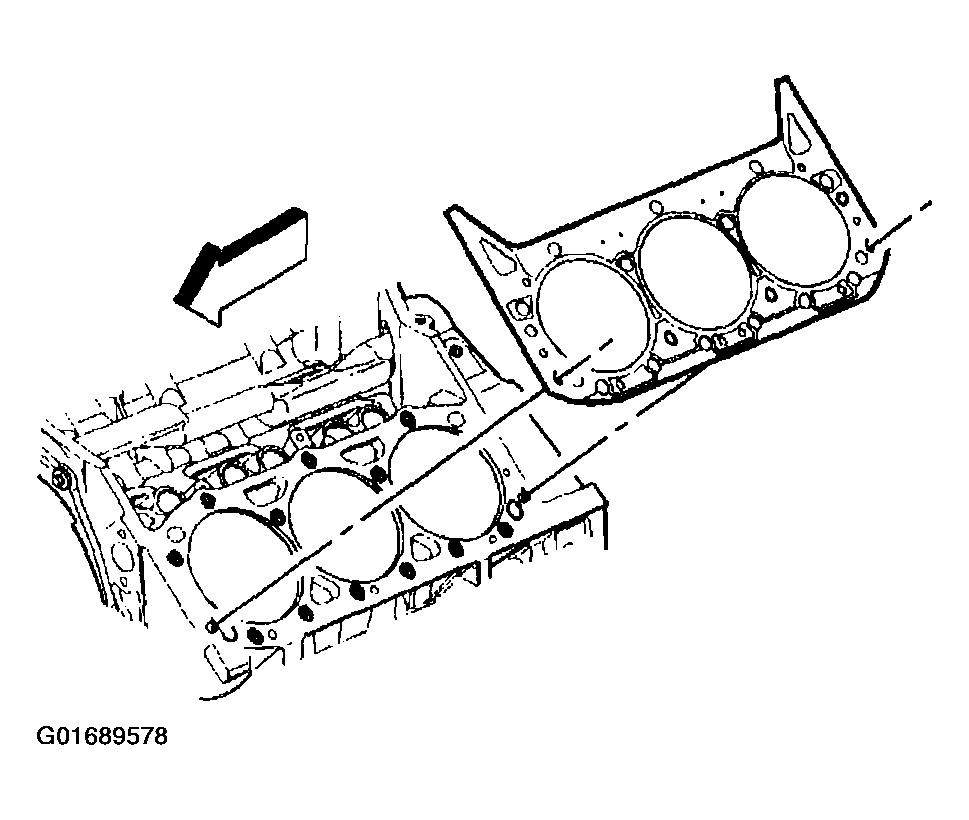

Fig 7: Cylinder Head Gasket
Courtesy of GENERAL MOTORS CORP.
Remove the cylinder head locator dowel pins, if required.

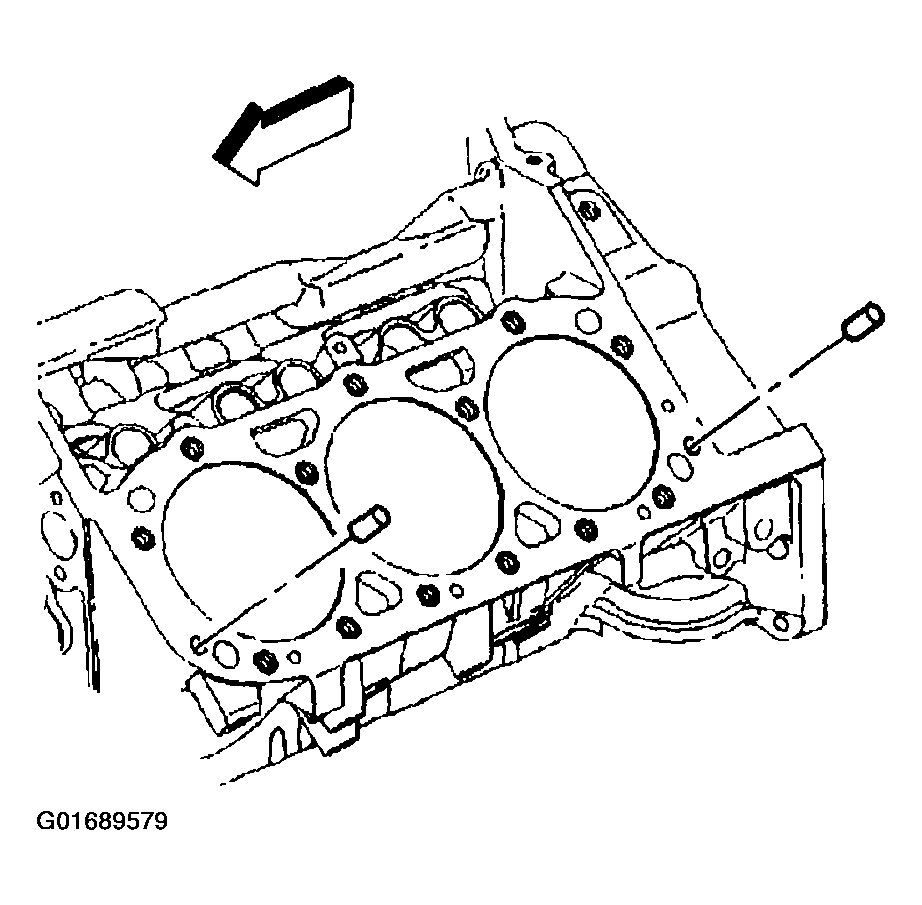

Fig 8: Cylinder Head Locator Dowel Pins
Courtesy of GENERAL MOTORS CORP.
