Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Gently pry the rear speaker grille from the trim panel using a suitable flat-bladed tool.
  2. Remove the speaker mounting screws.
  3. Remove the rear speaker from the panel.
  4. Disconnect the electrical connector.

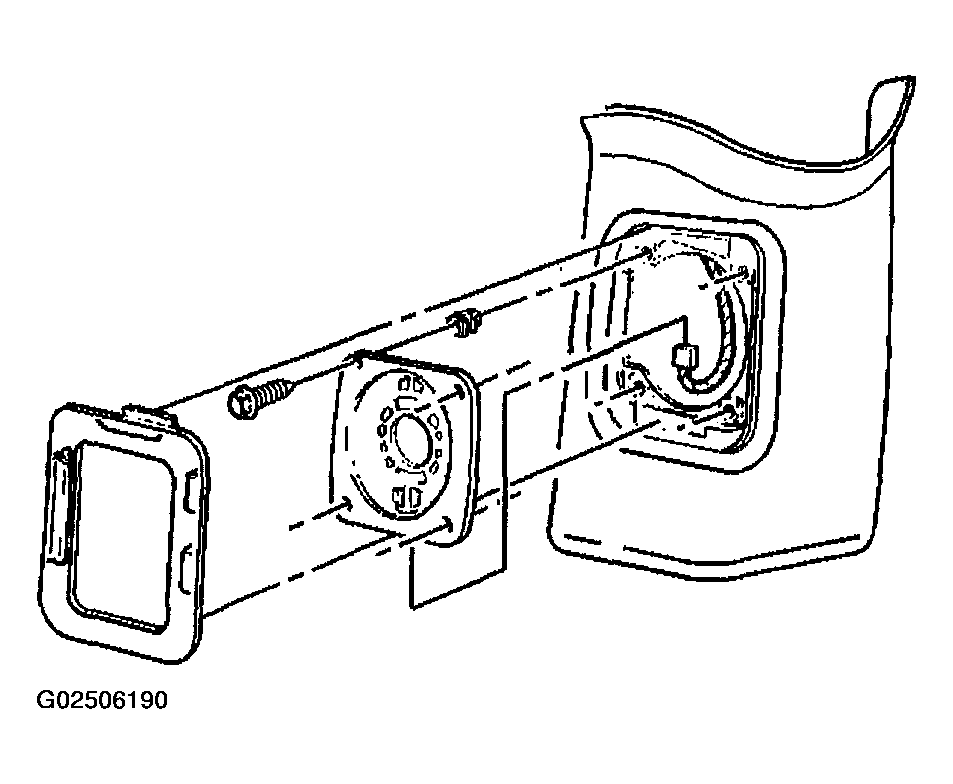

    Fig 1: Speaker Replacement - Rear Pillar
    G02506190Courtesy of GENERAL MOTORS CORP.
