Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim panel.
  2. Remove the rivets that retain the speaker to the door.
  3. Disconnect the electrical connector from the speaker.
  4. Remove the speaker from the door.

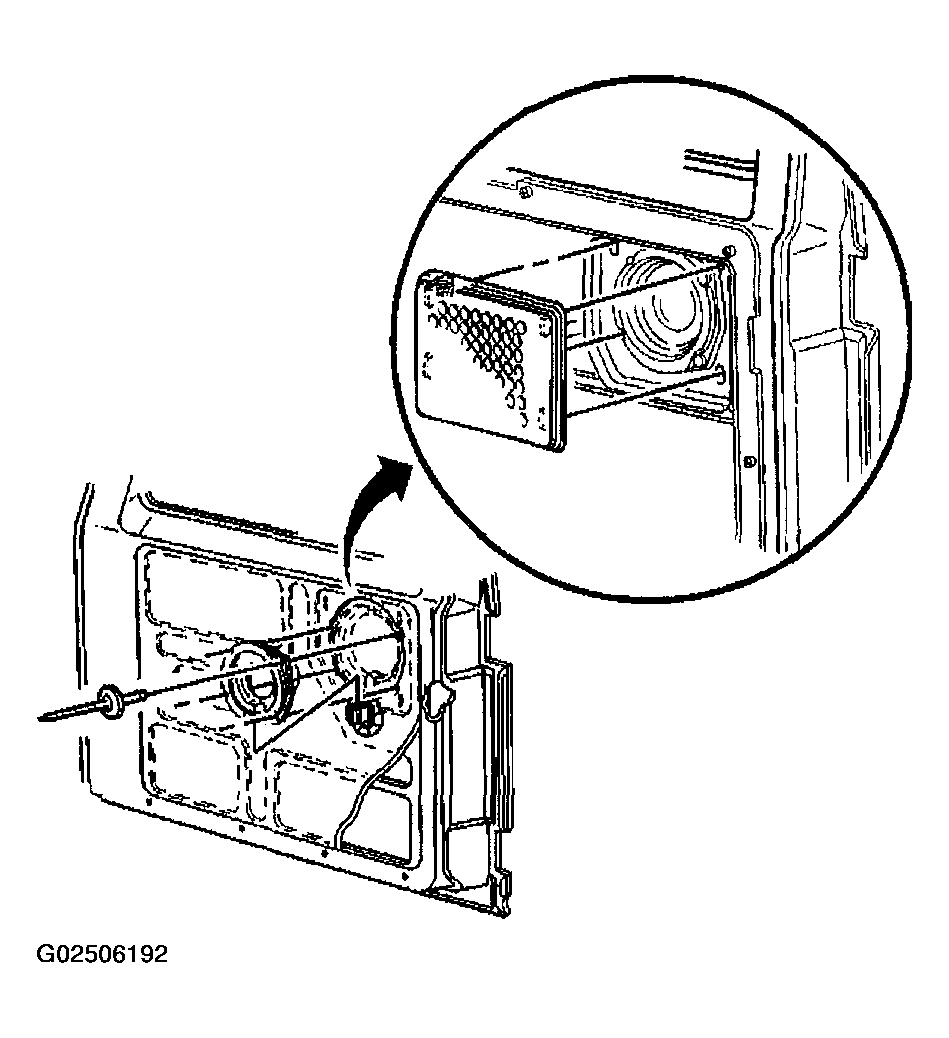

    Fig 1: Speaker Replacement - Rear Door
    G02506192Courtesy of GENERAL MOTORS CORP.
