Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the assist handle from the door.
  2. Remove the retaining screw from the trim plate.
  3. Remove the escutcheon from the trim plate.
  4. Swing the plate down.
  5. Remove the tweeter speaker from the trim plate by rotating in order to clear the mounting tabs.
  6. Disconnect the electrical connector.

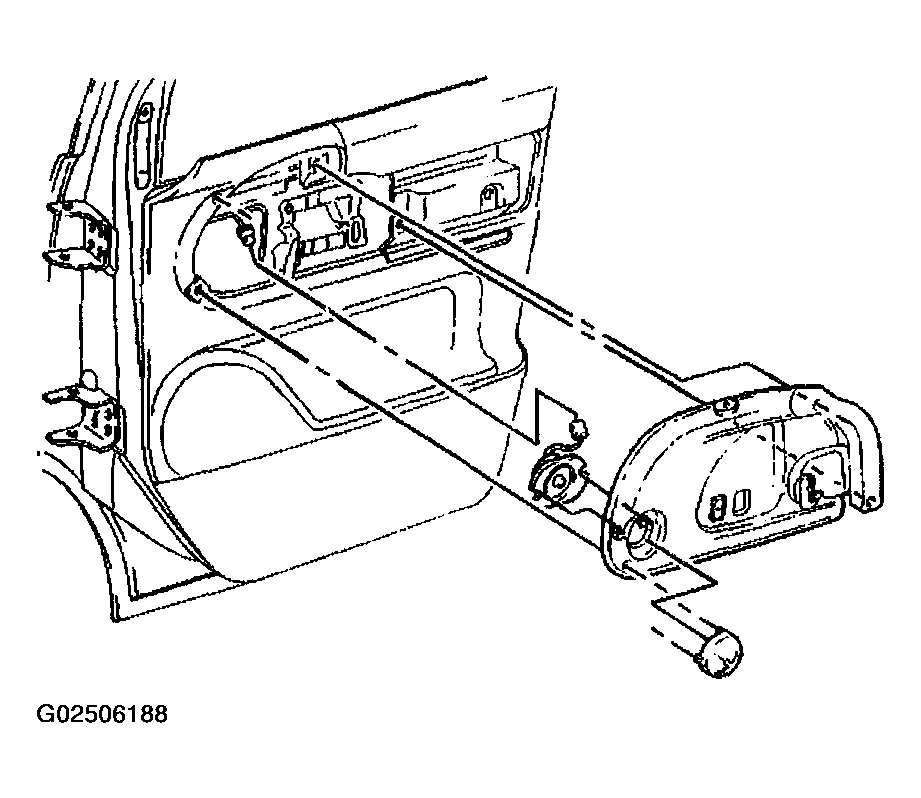

    Fig 1: Speaker Replacement - Front Upper
    G02506188Courtesy of GENERAL MOTORS CORP.
