Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear door(s).
  2. Separate the corners of the grille from the trim panel, one at a time, in order to remove the grille.
  3. Remove the grille from the door trim panel.

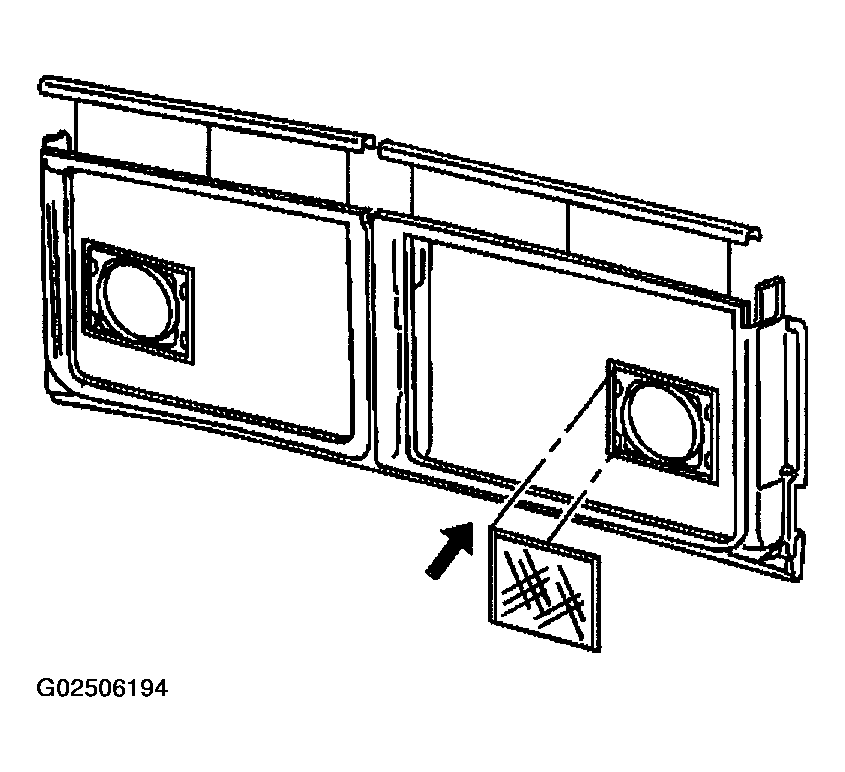

    Fig 1: Speaker Grille Replacement - Rear
    G02506194Courtesy of GENERAL MOTORS CORP.
