Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wiper arms. Refer to WIPER ARM REPLACEMENT .
  2. Remove the radio antenna mast. Refer to Fixed Antenna Mast Replacement .
  3. Remove the air inlet grille.
  4. Remove the antenna cable mounting bolts.
  5. Remove the radio. Refer to Radio Replacement .

    Important:  Do not remove the instrument panel.

  6. Roll the instrument panel back.
  7. Remove the antenna cable from the clip at the HVAC module.

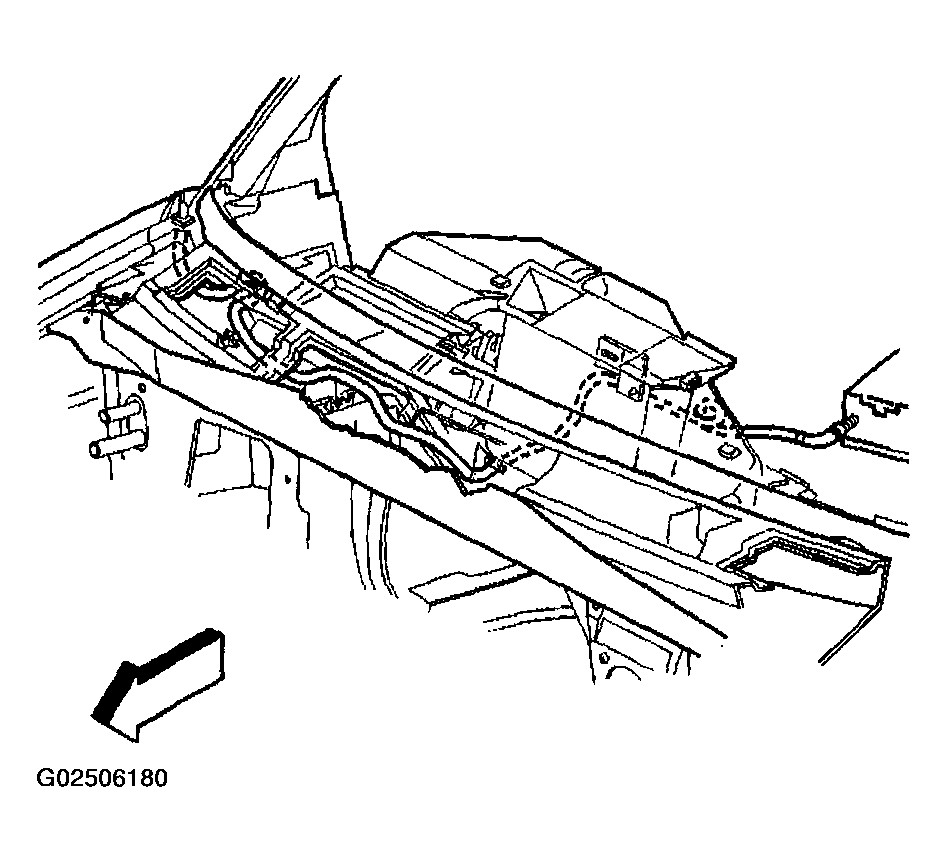

    Fig 1: Antenna Cable Clip At HVAC Module
    G02506180Courtesy of GENERAL MOTORS CORP.
  8. Remove the antenna through the grommet on the cowl.
  9. Remove the antenna cable from the vehicle.

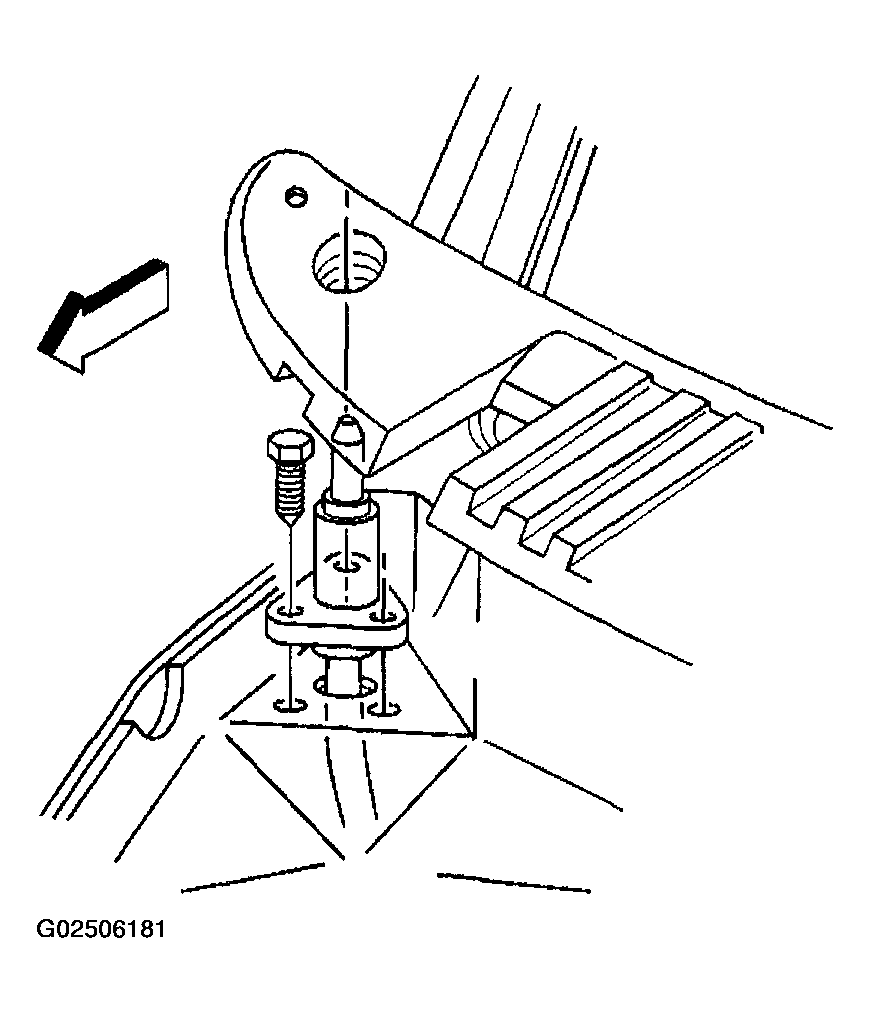

    Fig 2: Grommet
    G02506181Courtesy of GENERAL MOTORS CORP.
