Removal Procedure
WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

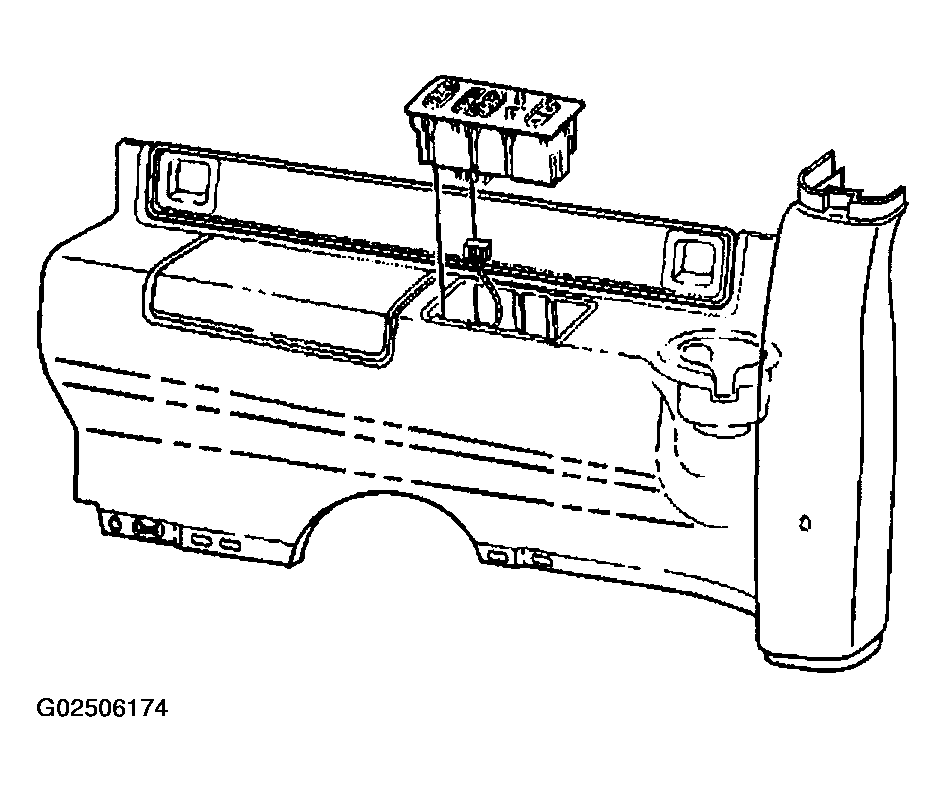

- Use a small flat-bladed tool in order to gently press the tabs at the forward and the rearward edges of the audio control.
- Lift the audio control from the trim panel.
- Disconnect the electrical connector from the audio control.
Courtesy of GENERAL MOTORS CORP.
