Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the body side front lower trim panel.
  2. Disconnect the electrical connector from the amplifier.

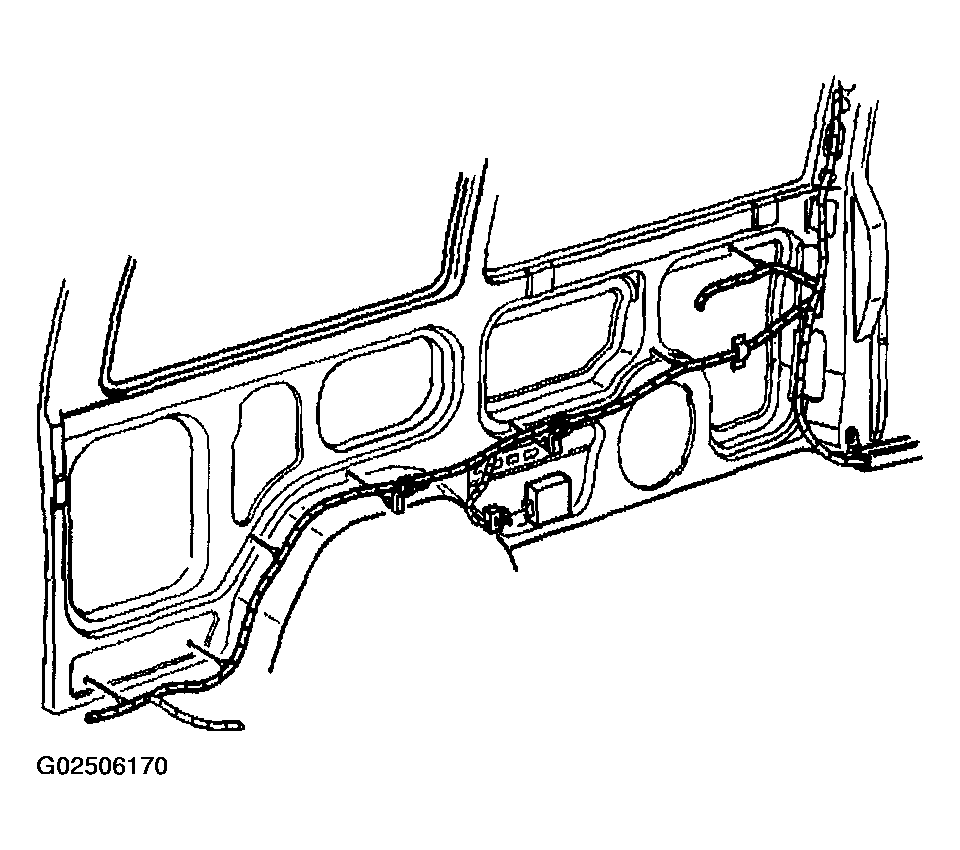

    Fig 1: Amplifier Electrical Connector
    G02506170Courtesy of GENERAL MOTORS CORP.
  3. Remove the amplifier from the vehicle by sliding the amplifier toward the rear of the vehicle.

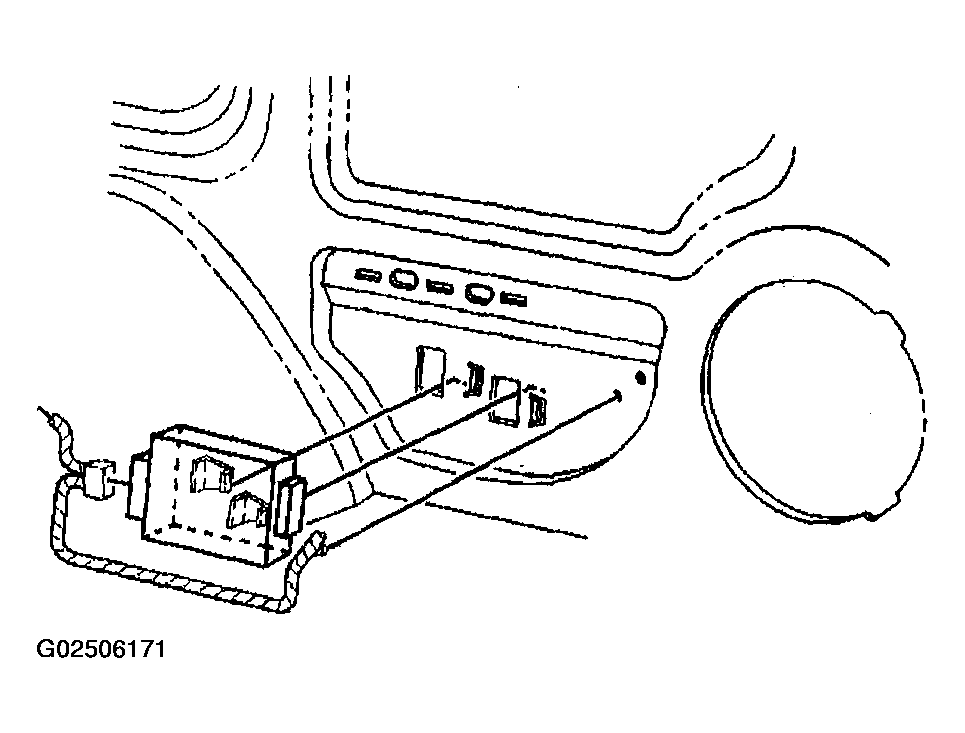

    Fig 2: Removing Amplifier From Vehicle
    G02506171Courtesy of GENERAL MOTORS CORP.
