Remote Playback Device Left Or Right Channel Inoperative
WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

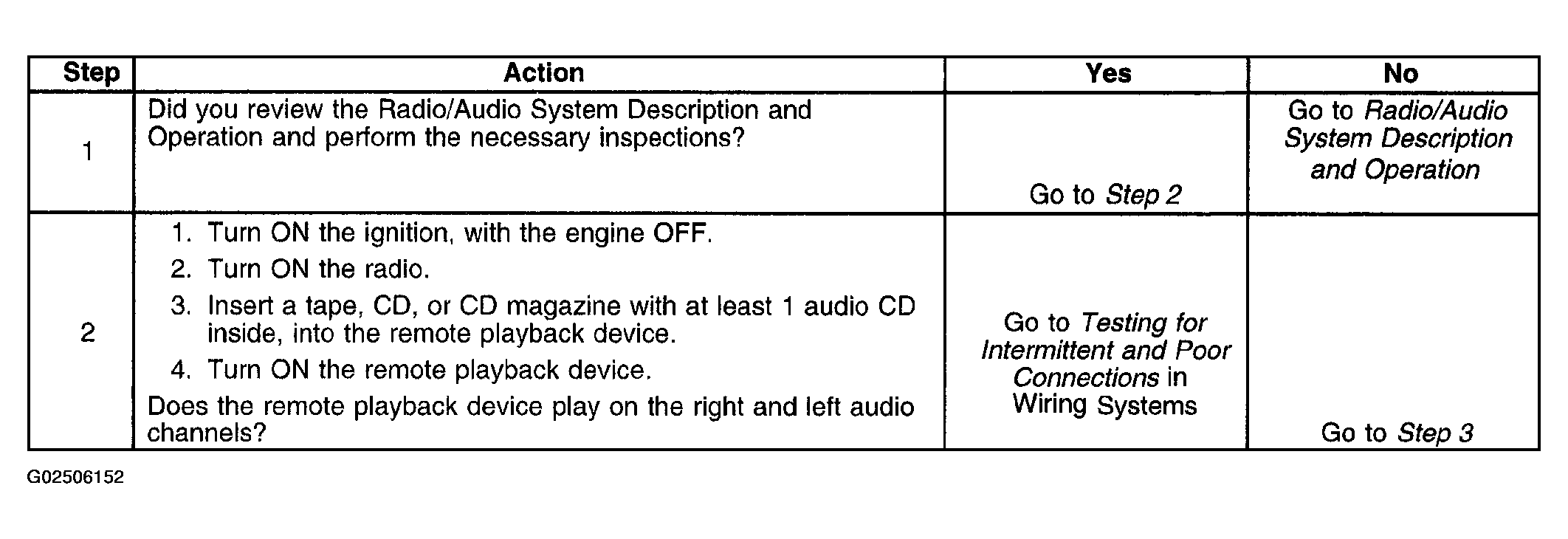

Fig 1: Remote Playback Device Left Or Right Channel Inoperative Diagnosis (Steps 1-2)
Courtesy of GENERAL MOTORS CORP.

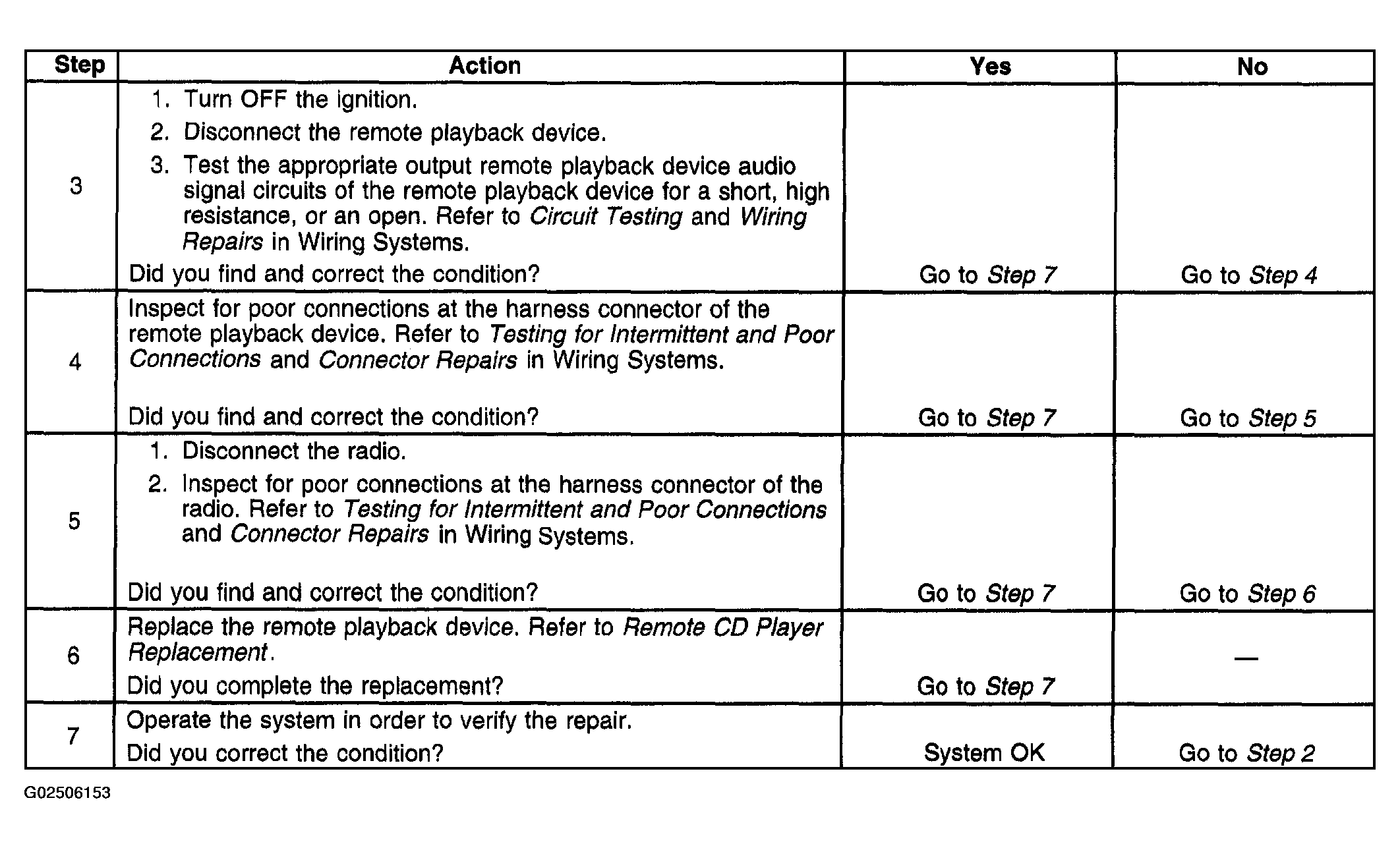

Fig 2: Remote Playback Device Left Or Right Channel Inoperative Diagnosis (Steps 3-7)
