WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

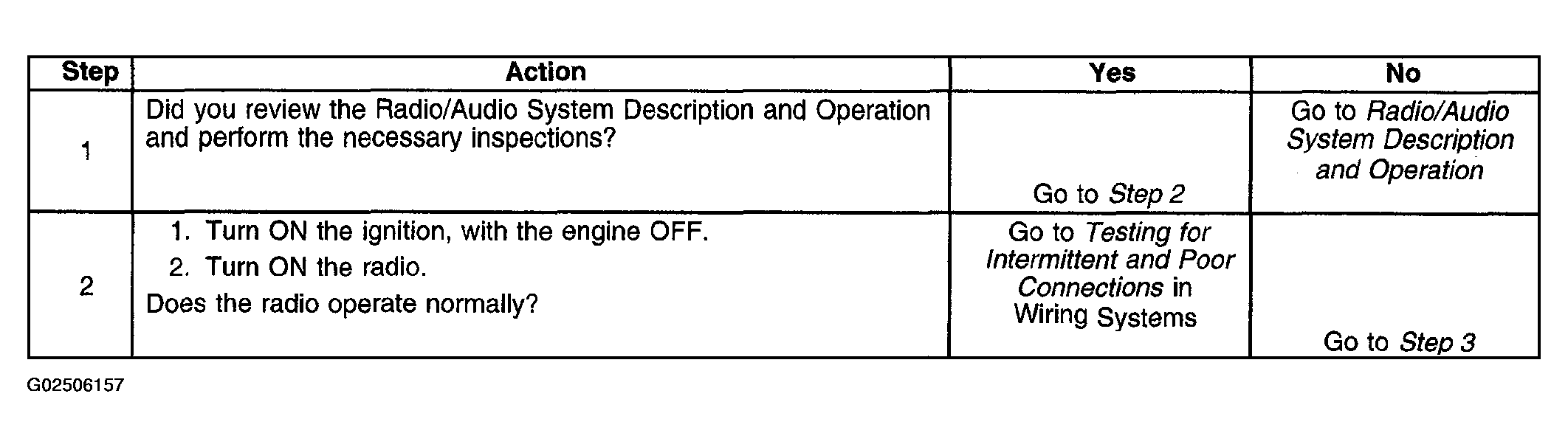

Fig 1: Radio Display Inoperative, Speakers Operative Diagnosis (Steps 1-2)
Courtesy of GENERAL MOTORS CORP.

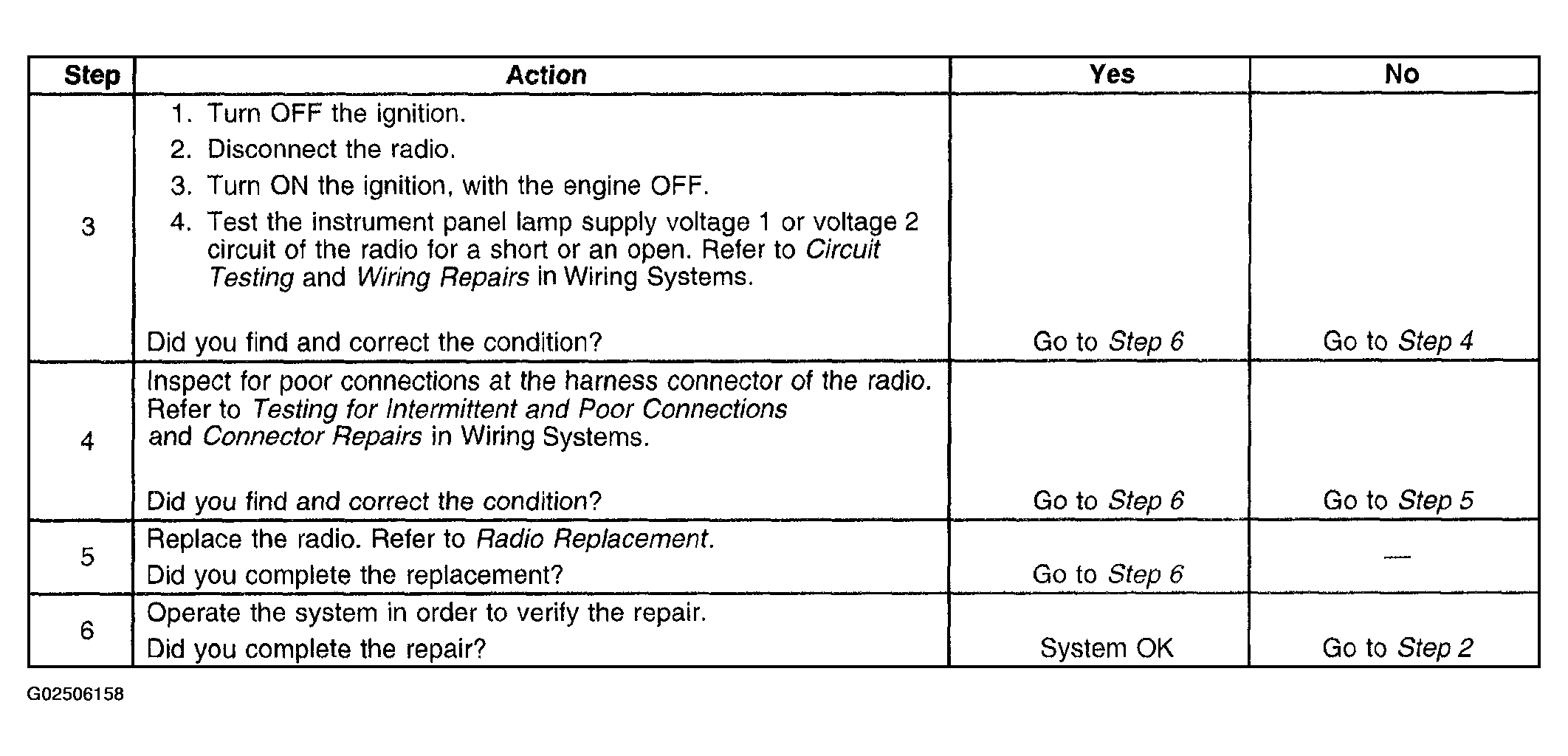

Fig 2: Radio Display Inoperative, Speakers Operative Diagnosis (Steps 3-6)
