Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wiper arms. Refer to Wiper Arm Replacement  .
  2. Remove the air inlet grille panel.

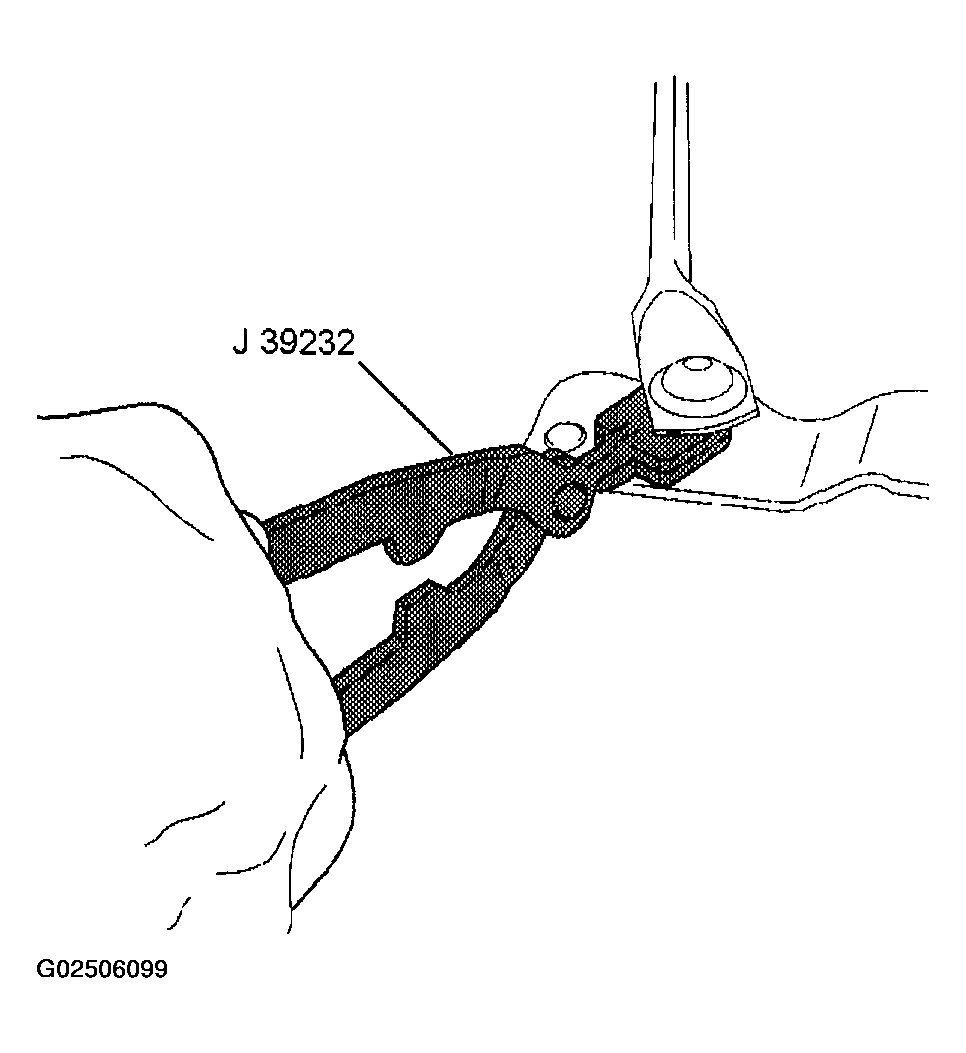

  3. Disconnect the transmission drive link from the wiper motor crank arm with the J 39232.
    Fig 1: Disconnecting Transmission Drive Link
    G02506099Courtesy of GENERAL MOTORS CORP.

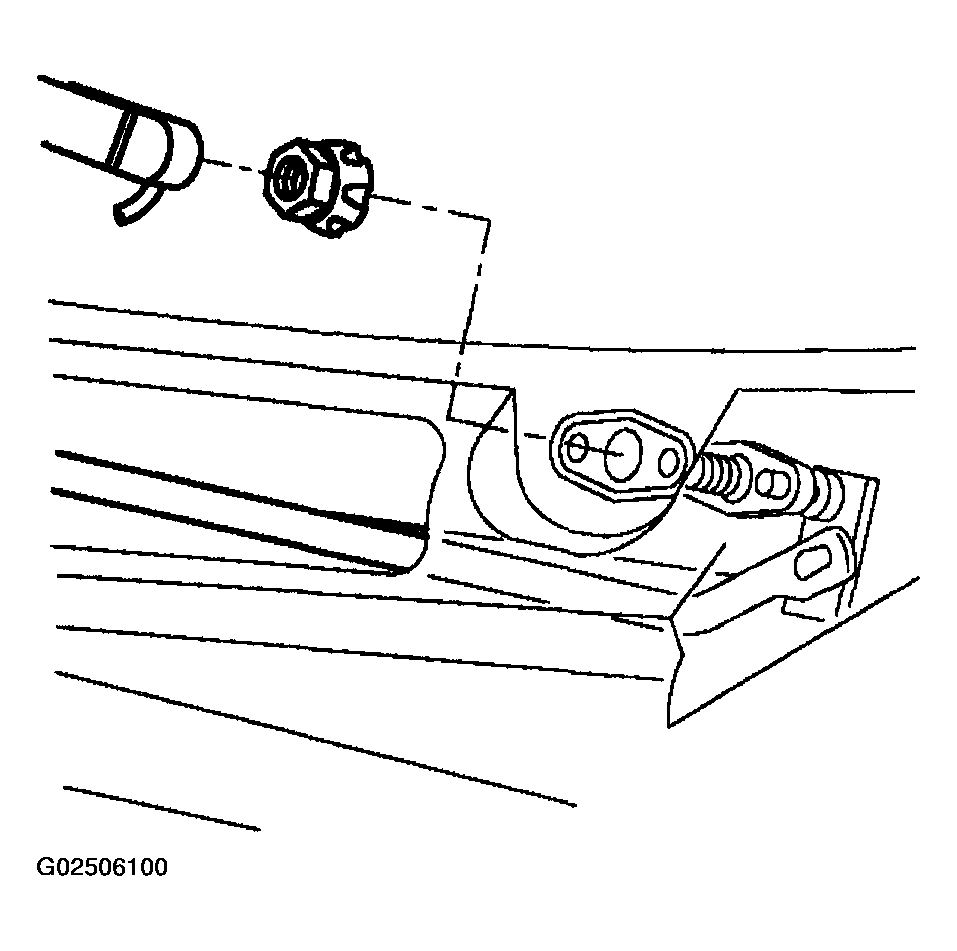

  4. Remove the transmission to cowl nuts.
  5. Remove the wiper transmission from the vehicle through the access openings in the top of the cowl.
    Fig 2: Removing Wiper Transmission
    G02506100Courtesy of GENERAL MOTORS CORP.
