Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wiper arms. Refer to Wiper Arm Replacement  .
  2. Remove the air inlet grille panel.
  3. Disconnect the transmission drive link from the wiper motor crank arm using the J 39232.

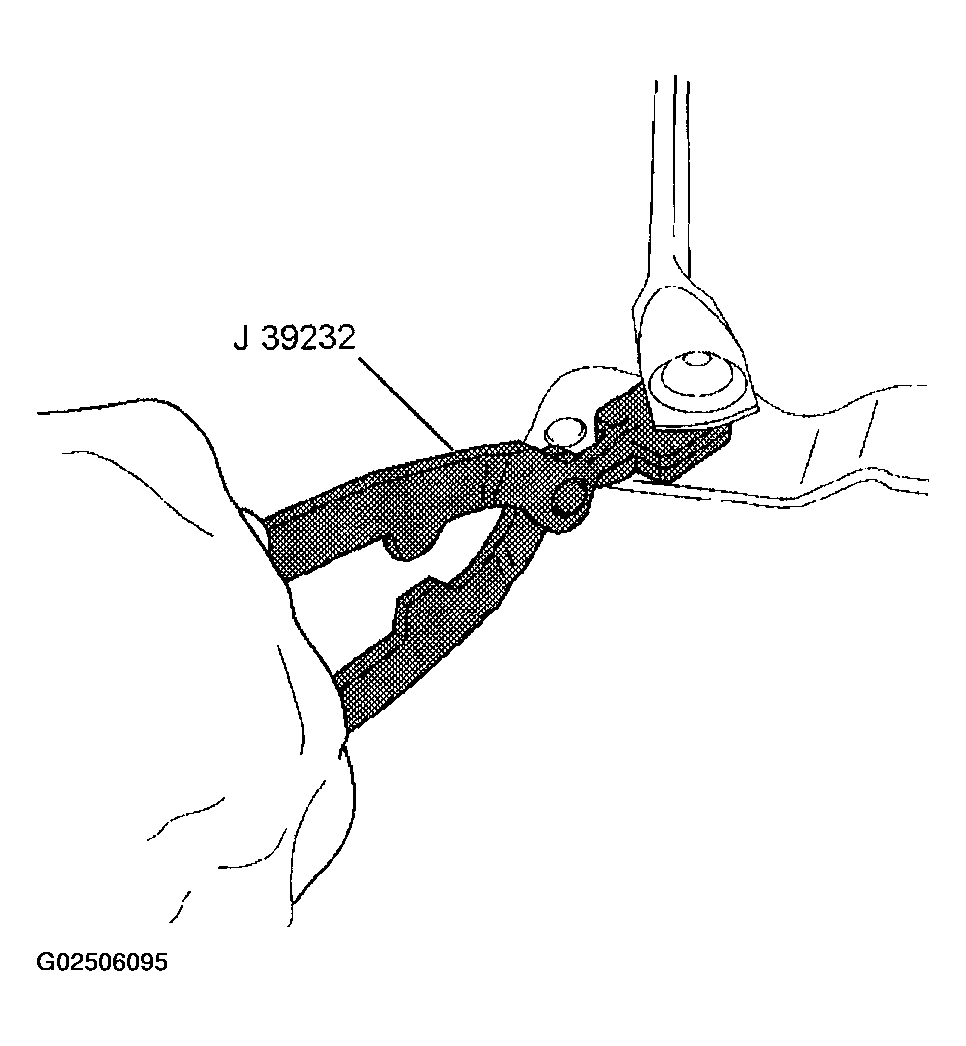

    Fig 1: Removing Transmission Drive Link
    G02506095Courtesy of GENERAL MOTORS CORP.
  4. Remove the wiper motor electrical connector.
  5. Remove the three bolts.
  6. Remove the wiper motor from the vehicle.

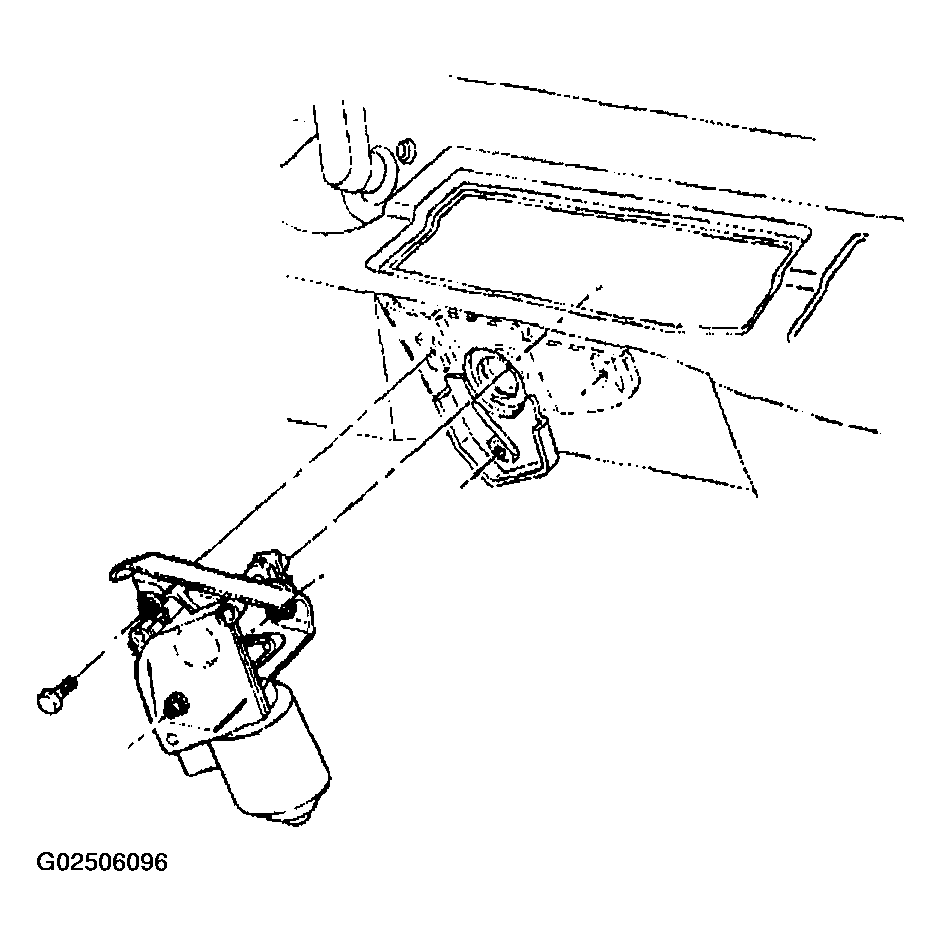

    Fig 2: Removing Wiper Motor
    G02506096Courtesy of GENERAL MOTORS CORP.
